44 6238 Wi-Fi Router with VOIP User’s Guide 6238-A2-ZB20-10

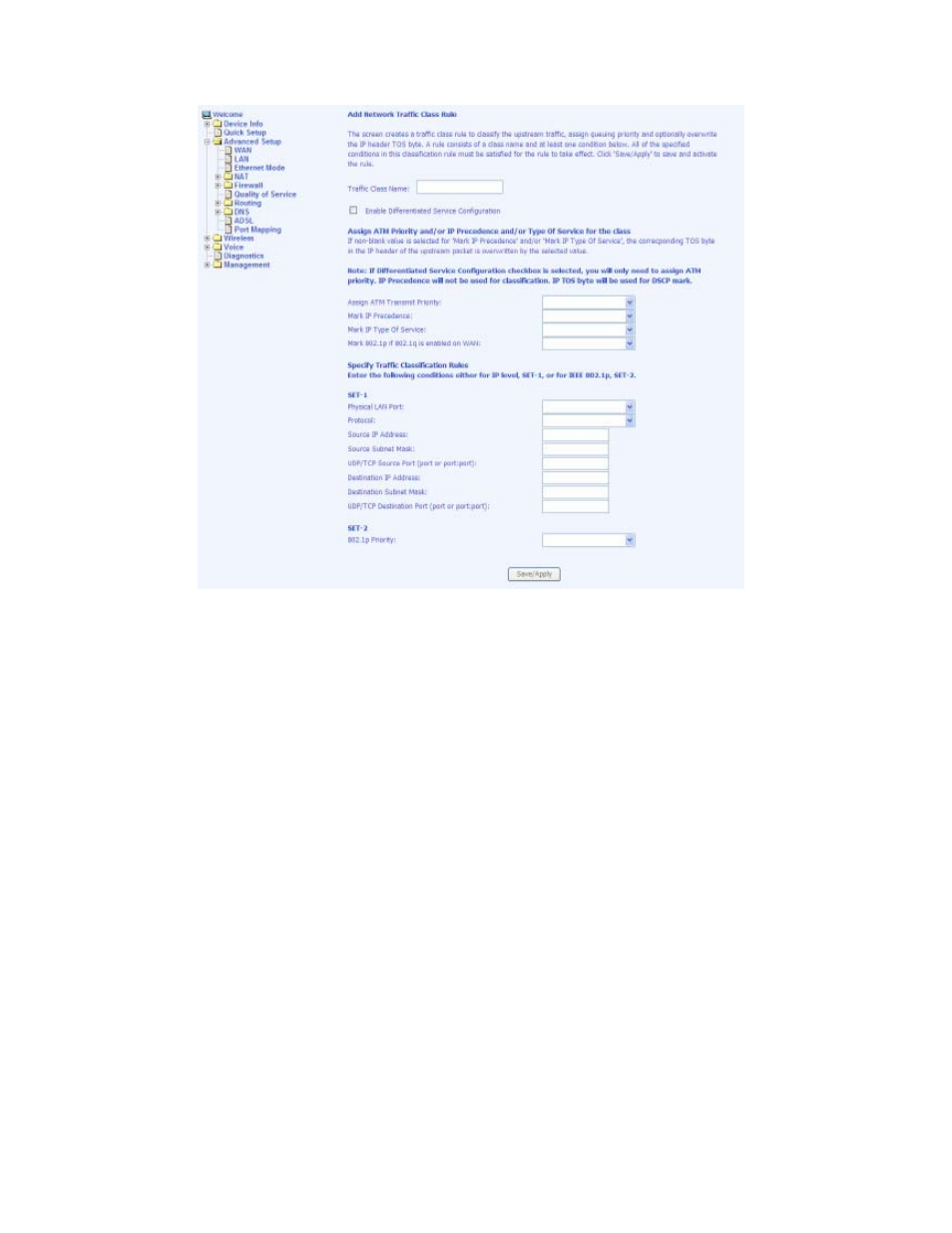

• Traffic Class Name— The name that you assign this class of traffic for
which you are configuring quality of service.
• Enable Differentiated Service Configuration— allows you to enable
the differentiated service if this checkbox is checked. Note: If this function is
enabled, you will only need to assign ATM transmit priority (next item).
• Assign ATM Transmit Priority— Select from low, medium, or high priority
level for transmitting ATM packets.
• Mark IP Precedence— Used to mark a packet to notify the network in
regard to the importance of the packet. IP precedence values range from 0-7
with 6 and 7 reserved and should not be used. The precedence values have
the following meanings—
o
(0) – Routine
o
(1) – Priority
o
(2) – Immediate
o
(3) – Flash
o
(4) – Flash Override
o
(5) – Critical
o
(6) – Internetwork Control
o
(7) – Network Control
