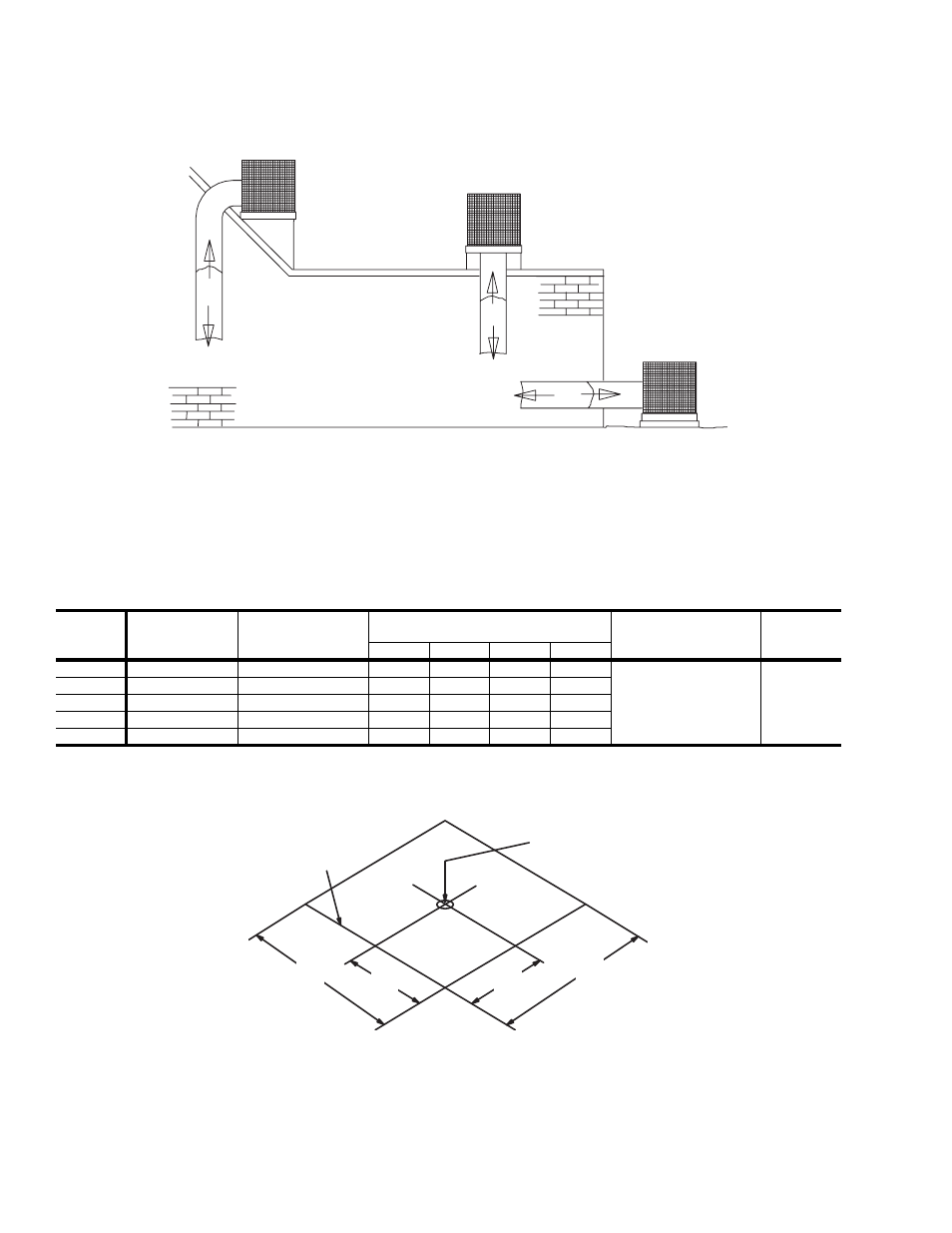

FIGURE 10 - TYPICAL DUCT APPLICATIONS
FIGURE 11 - UNIT CENTER OF GRAVITY
R O O F C U R B
I N S T A L L A T I O N
R E A R D U C T
R O O F C U R B
I N S T A L L A T I O N
B O T T O M D U C T
S L A B O N G R O U N D
I N S T A L L A T I O N
TABLE 17: UNIT WEIGHTS AND CENTER OF GRAVITY
UNIT
SIZE
SHIPPING
WEIGHT
(lbs.)
OPERATING
WEIGHT
(lbs.)
CORNER WEIGHTS
(location, lbs.)
ECONOMIZER
(lbs.)
ROOF
CURB
(lbs.) “A” “B” “C” “D”
030 395 390 98 95 96 99
40
8” - 70
14” - 75
036 400 395 100 96 98 101
042 470 465 131 129 101 103
048 475 470 133 130 102 104
060 485 480 136 133 105 107
"A"
"B"
"C"
"D"
49-1/8
25 25
47-1/4
FRONT
OF
UNIT
CENTER OF
GRAVITY
