Chapter 2 Introducing the Web Configurator
P-2900-4HB User’s Guide
22
2.2 Accessing the Web Configurator
Follow the steps below to log into the Web Configurator.
1
Launch your web browser. Enter “192.168.1.1” as the web site address.

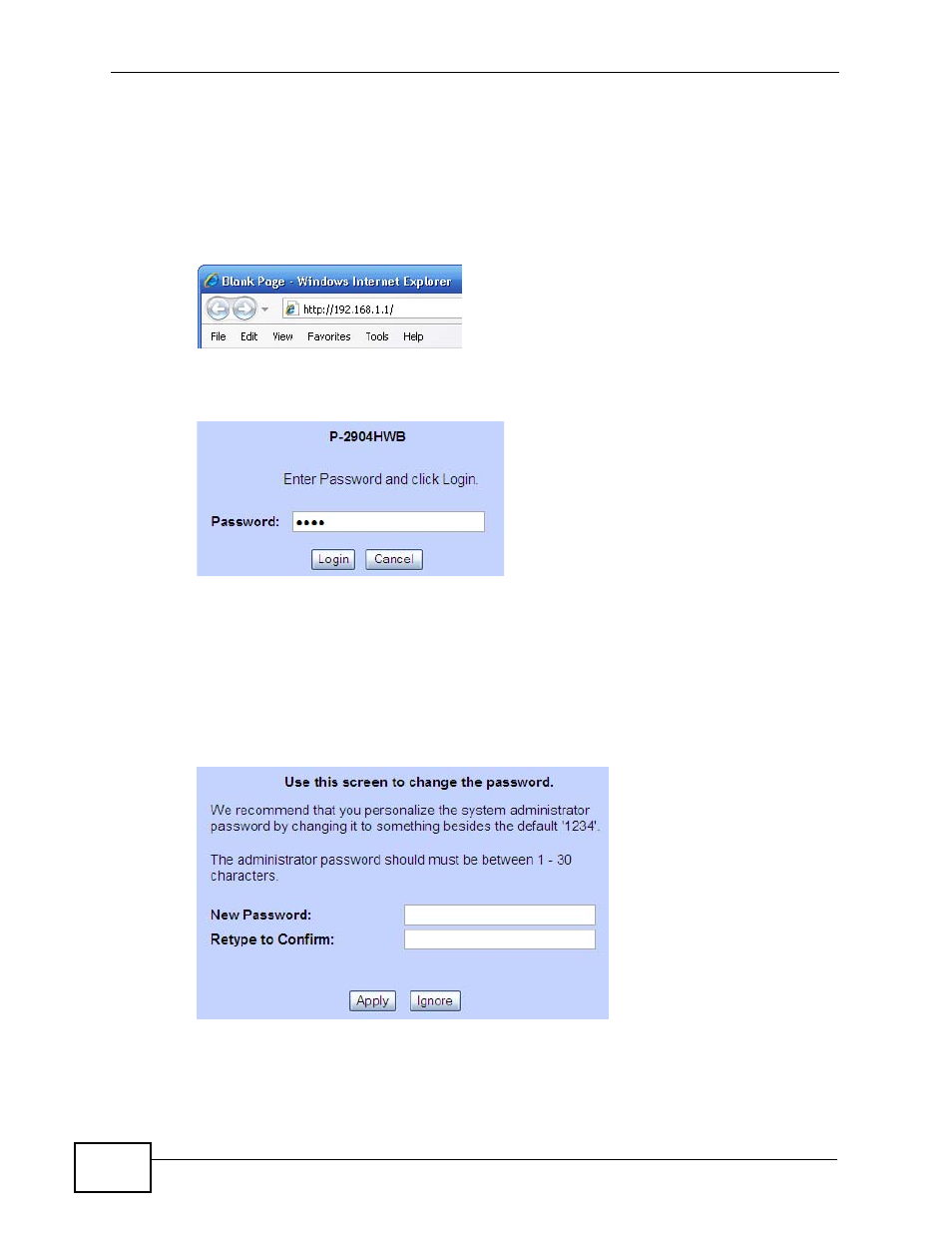

Figure 3 Web browser URL screen.
2
A login screen displays. Enter the password (“1234” by default) and click Login.
Figure 4 Web Configurator login screen
3
It is highly recommended you change the default password! Enter a new password
between 1 and 30 characters, retype it to confirm and click Apply; alternatively
click Ignore to proceed to the main menu if you do not want to change the
password now.
If you do not change the password at least once, the following screen appears
every time you log in.
Figure 5 Change Password at Login
4
You should now see the main Site Map screen (refer to Figure 6 on page 23 ).
