Page 4
4
ENGLISH
( C)
TEM
P
AUT
O
COO
L
DRY
HEA
T
FAN
HIG
H
MED
LOW
MO
DE
FAN
SPE
ED
TIM
ER
ON
SLE
EP
ON/O
FF
TIM
ER
OFF
AIR
DIR
ECT
ION
RES
ET
LO
CK
SET
TEM
PER
ATU
RE
S
WIN
G
LE
D
D
ISP
LAY
TU
RBO
9
5
4
7
2
1
3
8
6
12
13
10
11

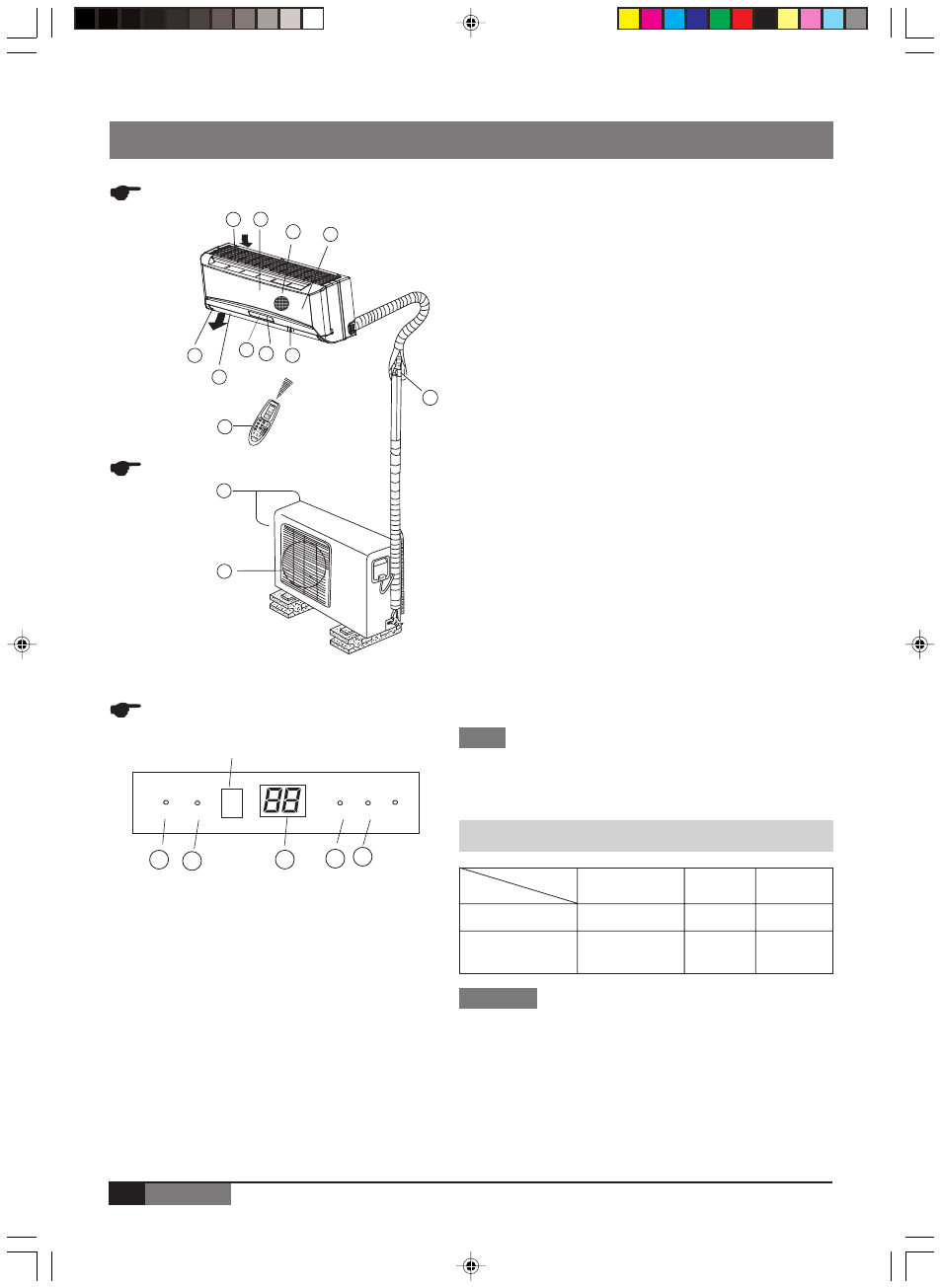

PART NAMES
CAUTIONS
1. If air conditioner is used outside of the above conditions,
certain safety protection features may come into operation
cause the unit to function abnormally.
2. Room relative humidity less than 80%. If the air conditioner oper-
ates in excess of this figure, the surface of the air conditioner may
attract condensation. Please sets the vertical air flow louver to
its maximum angle (Vertically to the floor), and set HIGH fan mode.
3. Optimum performance will be achieved within these operating
temperature.
INDOOR UNIT
OUTDOOR UNIT
■ INDOOR & OUTDOOR UNIT
1
Front panel
2
Air inlet
3
Air filter
4
Air outlet
5
Horizontal air flow grille
6
Vertical air flow louver
7
Display panel
■ DISPLAY PANEL
1
AUTO indicator
This indicator illuminates when the air conditioner is in AUTO
operation.
2
DEFROST indicator (For Cooling & Heating models only)
This indicator illuminates when the air conditioner starts
defrosting automatically or when the warm air control feature is
activated in heating operation.
3
TEMPERATURE indicator
Displays the temperature settings when the air conditioner is
operational.
4
OPERATION indicator
This indicator flashes after power is on and illuminates when
the unit is in operation.
5
TIMER indicator
This indicator illuminates when TIMER is set ON/OFF.
NOTE
All the pictures in this manual are for explanation purpose only.
They may be slightly different from the air conditioner your
purchased. The actual shape shall prevail.
OPERATING TEMPERATURE
DISPLAY PANEL
1
22
3
4
5
DEFROST
DEFROST
TIMER
TIMER
AUTO
AUTO
OPERATION
OPERATION
Signal receptor
8
Remote controller signal
receiver
9
Remote controller
0
Manual control button
-
Connecting pipe, drain hose
=
Air inlet (side and rear)
~
Air outlet
Mode
Temperature
Room temperature
Cooling
operation
17°C-32°C
Heating
operation
17°C-30°C
Drying
operation
17°C-32°C
Outdoor
temperature
18°C-43°C
-7°C-24°C
18°C-43°C
Bio Filter
The perfection of MasterGold begins with the innovative Bio
Screen for purifying air. This Bio Screen works in a twofold manner
to give you the maximum effect of purification and dust elimination.
