Deploying the MC1000-SFP-FP

3.1 Overview

In this chapter we show you how to:

• Make the LAN connection
• Make the power connection and turn the MC1000-SFP-FP on
• Use the LEDs to check correct operation of the MC1000-SFP-FP
• Mount the MC1000-SFP-FP on a wall.

The MC1000-SFP-FP can also be placed on a desktop. Make sure that there is proper
MC1000-SFP-FP dissipation from and adequate ventilation around the device. Do not place
heavy objects on the MC1000-SFP-FP.

3.2 LAN Connection

Connect the Ethernet port on the rear of the MC1000-SFP-FP to a computer, switch or router
on your network using an Ethernet cable. The port is Auto MDI/MDI-X meaning you can use
either a straight-through or crossover Ethernet cable. Use an 8-wire Ethernet Cat 5e cable for
Gigabit connections.

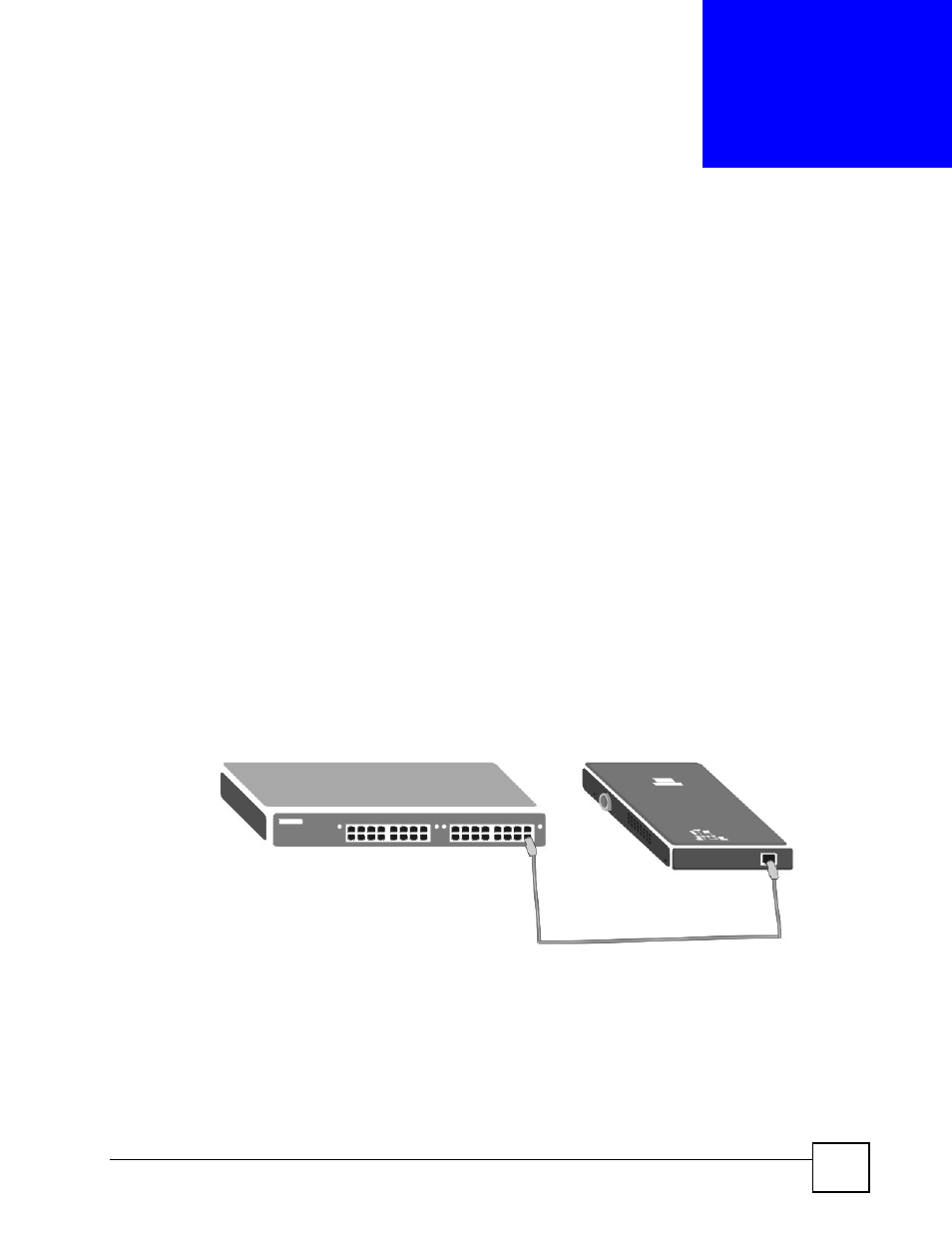

Figure 18 LAN Connection

3.3 Power Connection

Connect one end of the power cord to the power socket in the MC1000-SFP-FP and the other
end to a power source.
