Chapter 1 Introduction

MC1000-SFP-FP User’s Guide

14

For example, if LFS is disabled and one side of a link fails (down arrow), the other segments
will keep on transmitting packets (up arrows) and wait for responses that will never arrive.

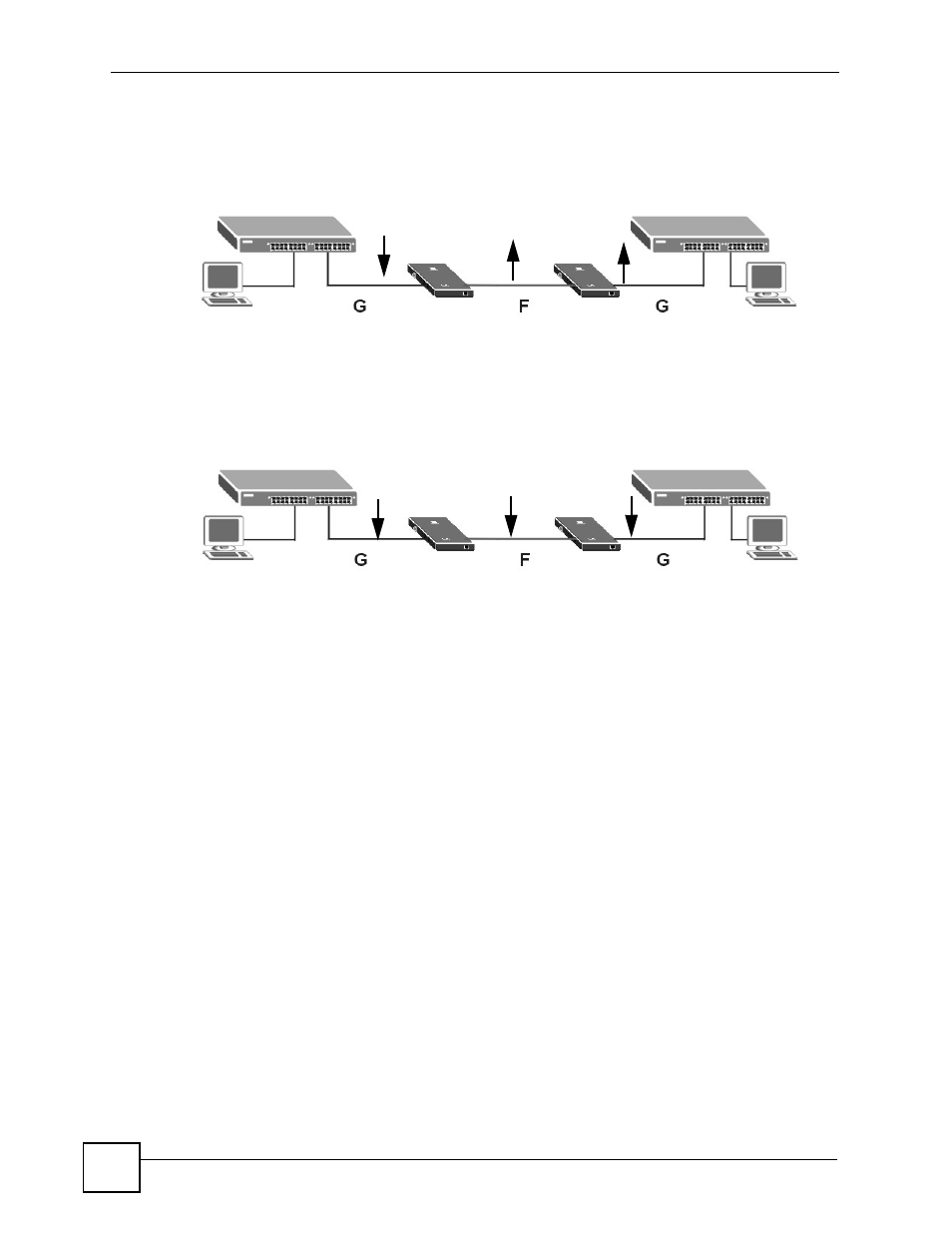

Figure 3 No Link-Fault Signaling

With LFS enabled, a link down detected on the Ethernet port will force a link down on the
fiber port and vice-versa. The up link will stop transmitting and turn off as soon as the remote
link is down.

Figure 4 With Link-Fault Signaling

1.1.2 Fiber Cable Protection

The MC1000-SFP-FP comes with wire mounts that keep fiber-optic cable from easily
breaking by allowing you to wrap it within the MC1000-SFP-FP.
