Chapter 2 Fiber-optic Connection

MC1000-SFP-FP User’s Guide

21

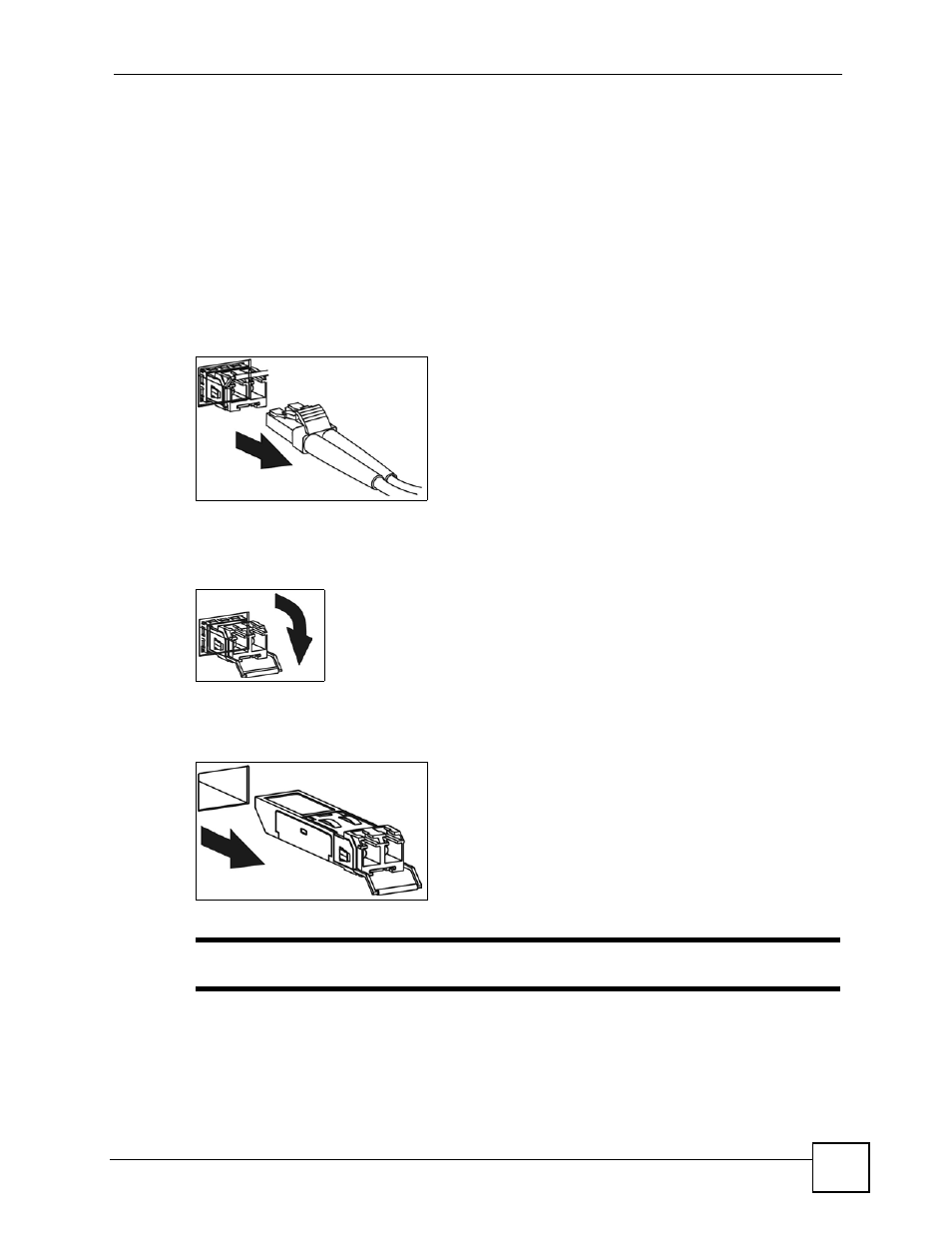

2.7 Replacing An SFP Transceiver

To replace an SFP transceiver, first remove the original one and then insert a new one as
documented previously.

2.7.1 Procedure To Remove An SFP Transceiver

1 Attach an ESD preventive wrist strap to your wrist and to a bare metal surface on the

chassis.

2 Disconnect the fiber-optic cable from the SFP transceiver.

Figure 15 Remove Fiber-optic Cable

3 Insert the dust plug into the port on the SFP transceiver.
4 Pull the latch out and down to unlock the SFP transceiver.

Figure 16 Unlock The Transceiver

5 Using your thumb and index finger, grasp both sides of the transceiver and carefully

slide it out of the slot.

Figure 17 Remove Transceiver

"

Do NOT force or twist the transceiver out of a slot.
