Chapter 2 Fiber-optic Connection

MC1000-SFP-FP User’s Guide

20

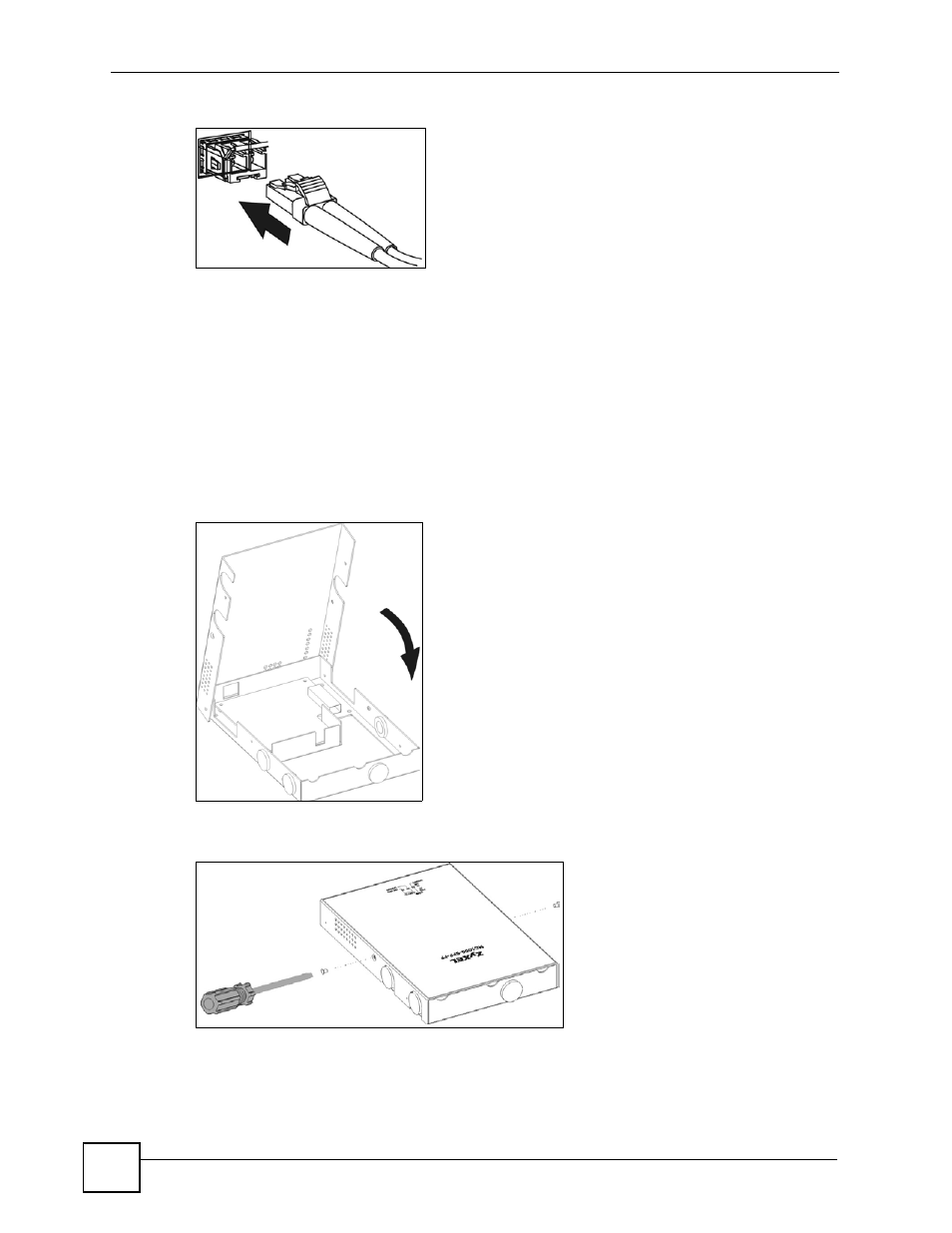

Figure 12 Insert Cable

2.6 Close the MC1000-SFP-FP

After you have disabled DIP switch 1 (LFS), installed the SFP transceiver, attached the wire
mounts, threaded fiber-optic cable though a bushing, wrapped excessive fiber-optic cable
around the wire mounts, inserted the fiber-optic cable into the SFP transceiver and enabled
DIP switch 1 (LFS) again, you should close the housing cover and secure it with the same
screws you removed as shown in

Section 2.2 on page 15

.

1 Close the cover as shown.

Figure 13 Close The Cover

2 Screw the cover back on the housing as shown.

Figure 14 Replace Housing Cover Screws
