MC1000-SFP-FP User’s Guide

15

C

H A P T E R

2

Fiber-optic Connection

2.1 Overview

To make the MC1000-SFP-FP fiber-optic connection you need to:

1 Open the MC1000-SFP-FP
2 Disable DIP switch 1 (LFS)
3 Install an SFP transceiver
4 Attach the wire mounts
5 Insert a fiber-optic cable through a bushing and wrap it around the wire mounts
6 Connect the fiber-optic cable to the SFP transceiver
7 Enable DIP switch 1 (LFS)

1

Only qualified technicians should perform these actions! Please skip this
chapter if you are not a qualified technician.

2.2 Open the MC1000-SFP-FP

1 First remove both screws from the housing.

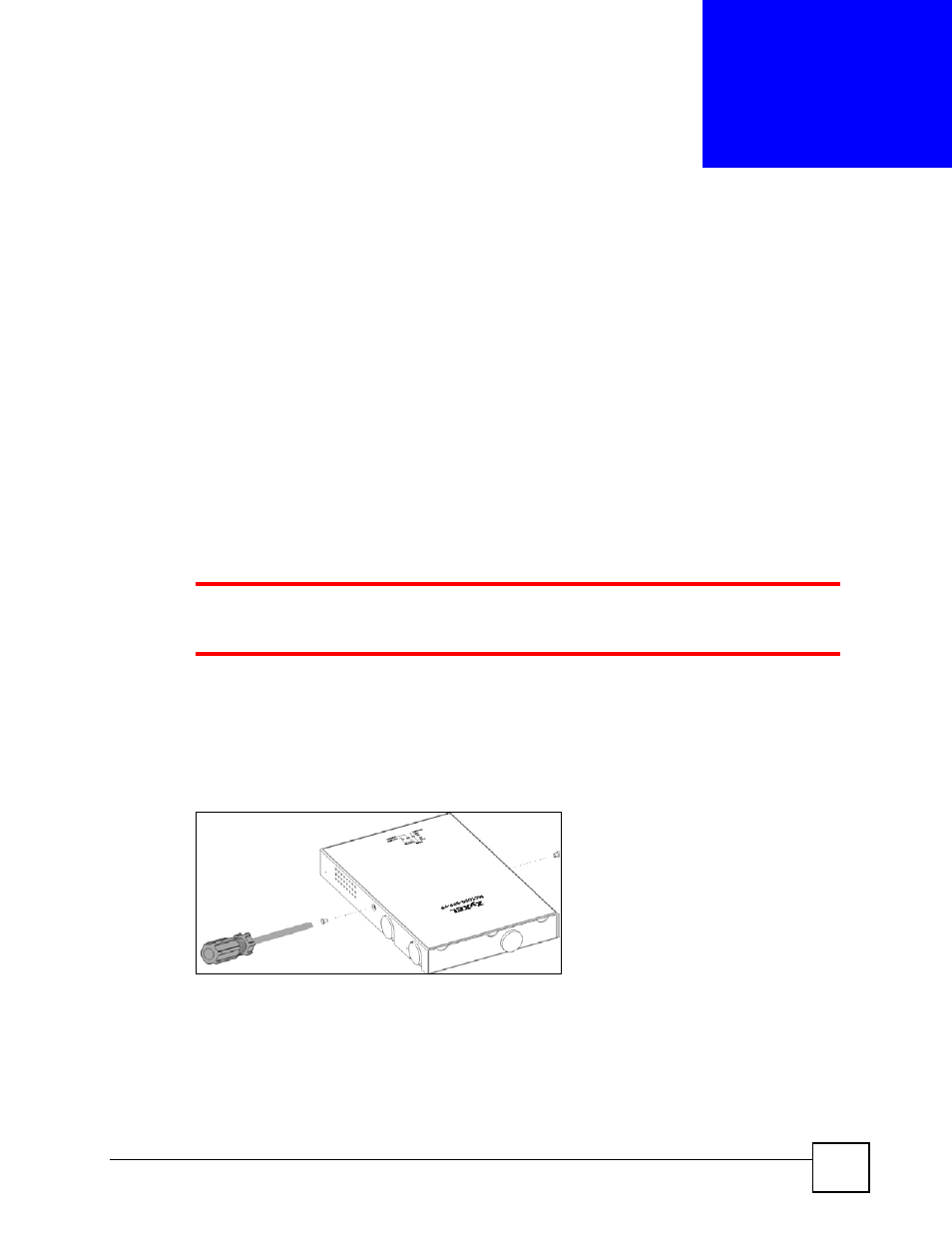

Figure 5 Remove The Housing Screws

2 Then lift open the cover as shown.
