Control Panel
Phaser® 8560/8860 Printer
1-7
Control Panel Layout
Menu Map
The Menu Map helps you navigate the control panel menus. To print the Menu Map:
1. On the control panel, select Information , and then press the OK button.
2. Select Menu Map , and then press the OK button to print.
Note: Print the Menu Map to see other information pages available for printing.

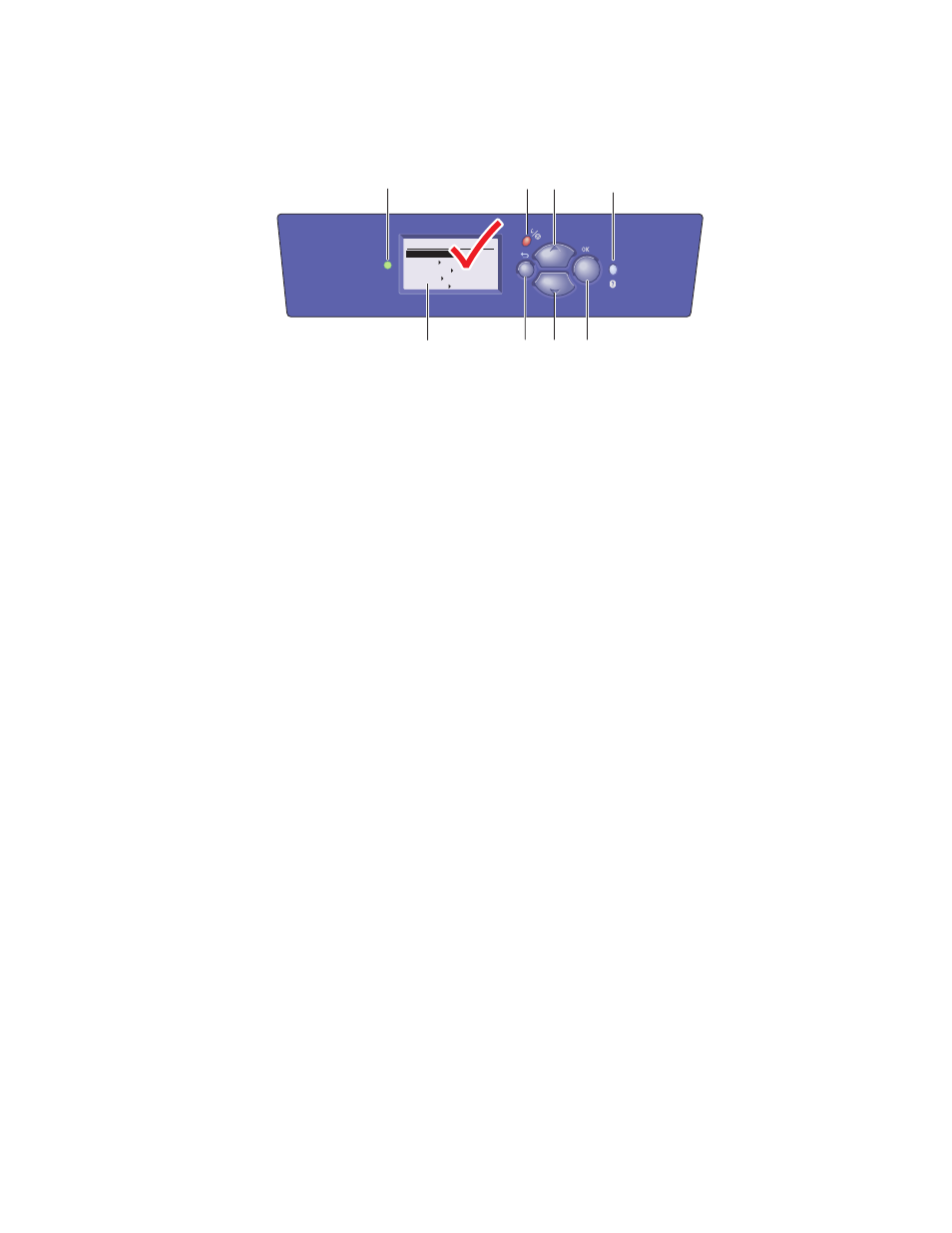

1. Status Indicator LED:
Green: Printer is ready to print.
Yellow: Warning condition, printer continues to
print.
Red: Startup sequence or error condition.
Blinking: Printer is busy or warming up.
2. Graphic display indicates status messages
and menus.
3. Cancel button
Cancels the current print job.
4. Back button
Returns to the previous menu item.
5. Up Arrow button
Scrolls upward through the menus.
6. Down Arrow button
Scrolls downward through the menus.
7. OK button
Accepts the setting selected.
8. Help (?) button
Displays a help message with information
about the printer, such as printer status, error
messages, and maintenance information.
