Xerox DocuPrint Personal Laser Printer P1202 User Manual
Page 73
Serial/LocalTalk Card
Appendix B: Printer Options
B-9
3

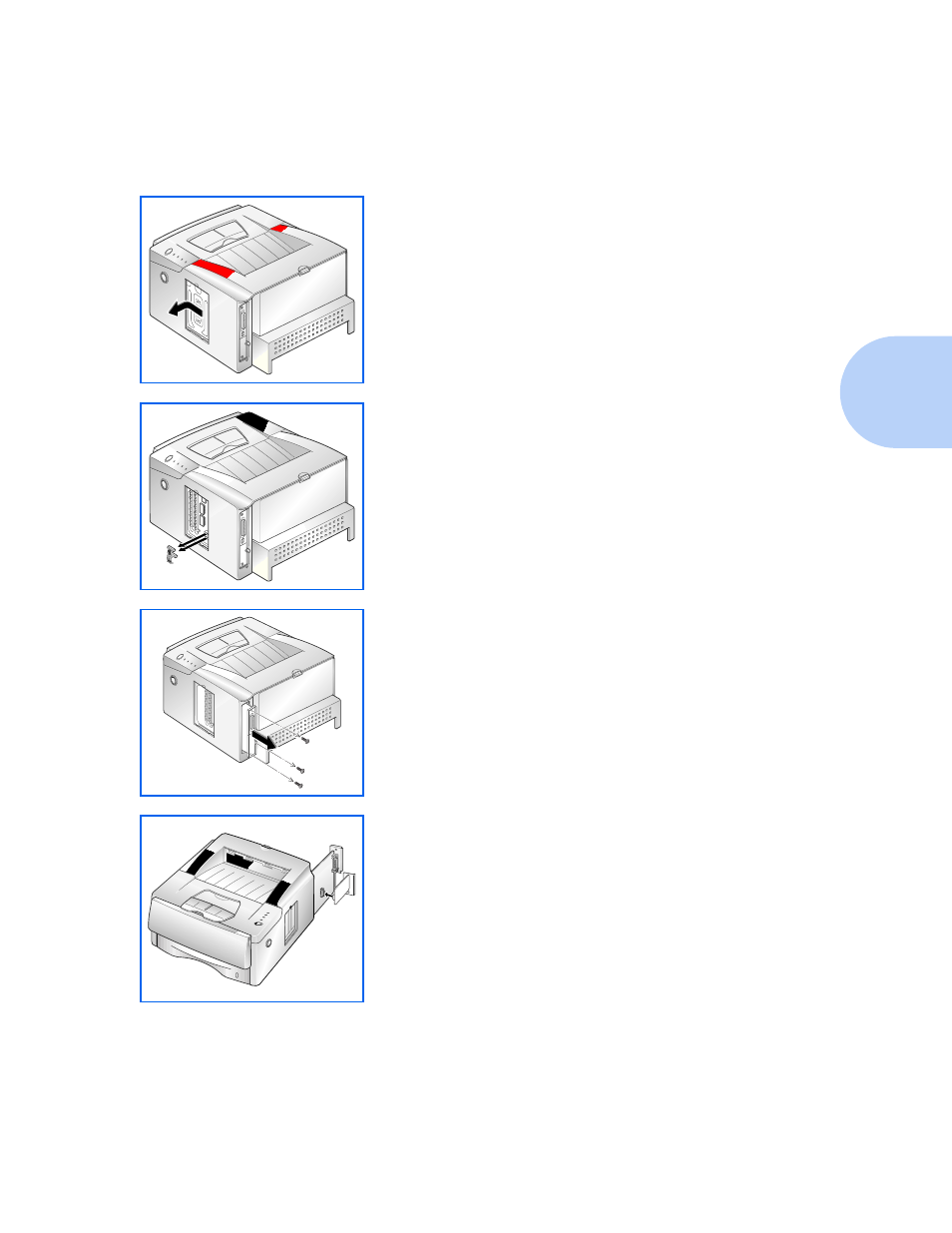

Remove the metal plate in the direction of the arrow.
4
Unplug the two connectors from the control board.
5
Remove the three screws securing the board and pull the board out
of the printer.
Unpack the Serial/LocalTalk card. Avoid touching its contact pins.
6
Align the connector on the Serial/LocalTalk card with the connector
on the control board.
Push the card firmly into the connector until it is completely
inserted in place. The two connectors should fit snugly together.
OPE
N
CLO
SE
