ES-4024A Series Switch Support Notes


All contents copyright (c) 2006 ZyXEL Communications Corporation.

83

Step 3. Setup the switch A’s IP address of two interfaces for layer 3 routing

and its uplink gateway. Take ES-4024 for example.

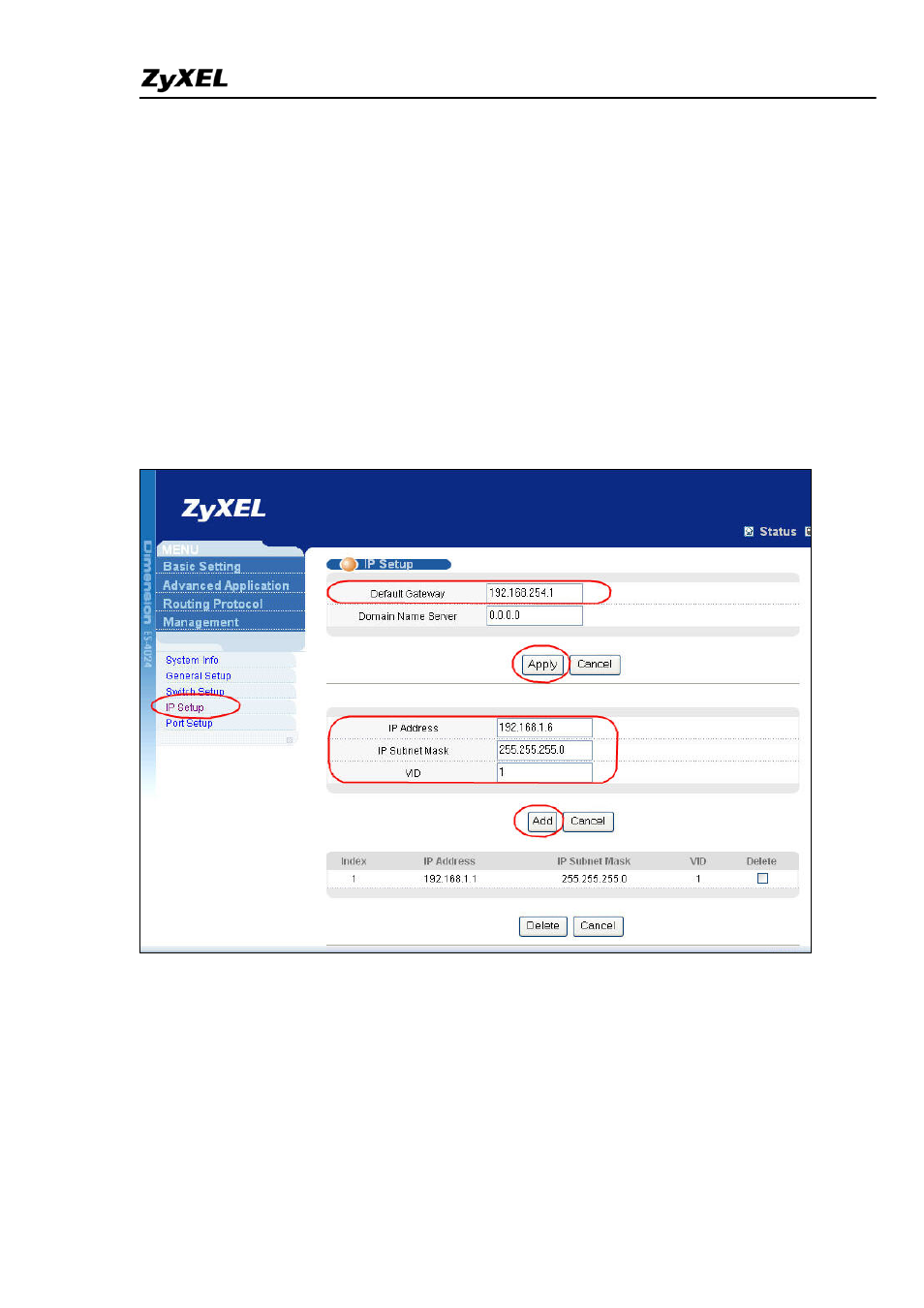

Configure Switch A’s IP setting via GUI menu Basic Setting >> IP Setup.

- Default Gateway: 192.168.254.1

- 1st IP address: 192.168.1.6/24 with VID=1, see figure example as

below.

- 2nd IP address: 192.168.254.2/24 with VID=2

After add the change, it will become as following setting.
