VLAN Configuration via EMS

In this section, we will give an example to illustrate how to use EMS to create a

VLAN2 in GS-4024. Here are the procedures.

Step 1: In the device panel list shown in Figure 12, right-click Configuration,

Switch Configuration and then Switch Setup tab as shown in Figure 12 and

Figure 13.

Step 2: Define the VLAN type, there are two types of VLAN, one is 802.1Q and

the other is Port-based VLAN. Select 802.1Q as the VLAN type and click

Apply in the Figure 14.

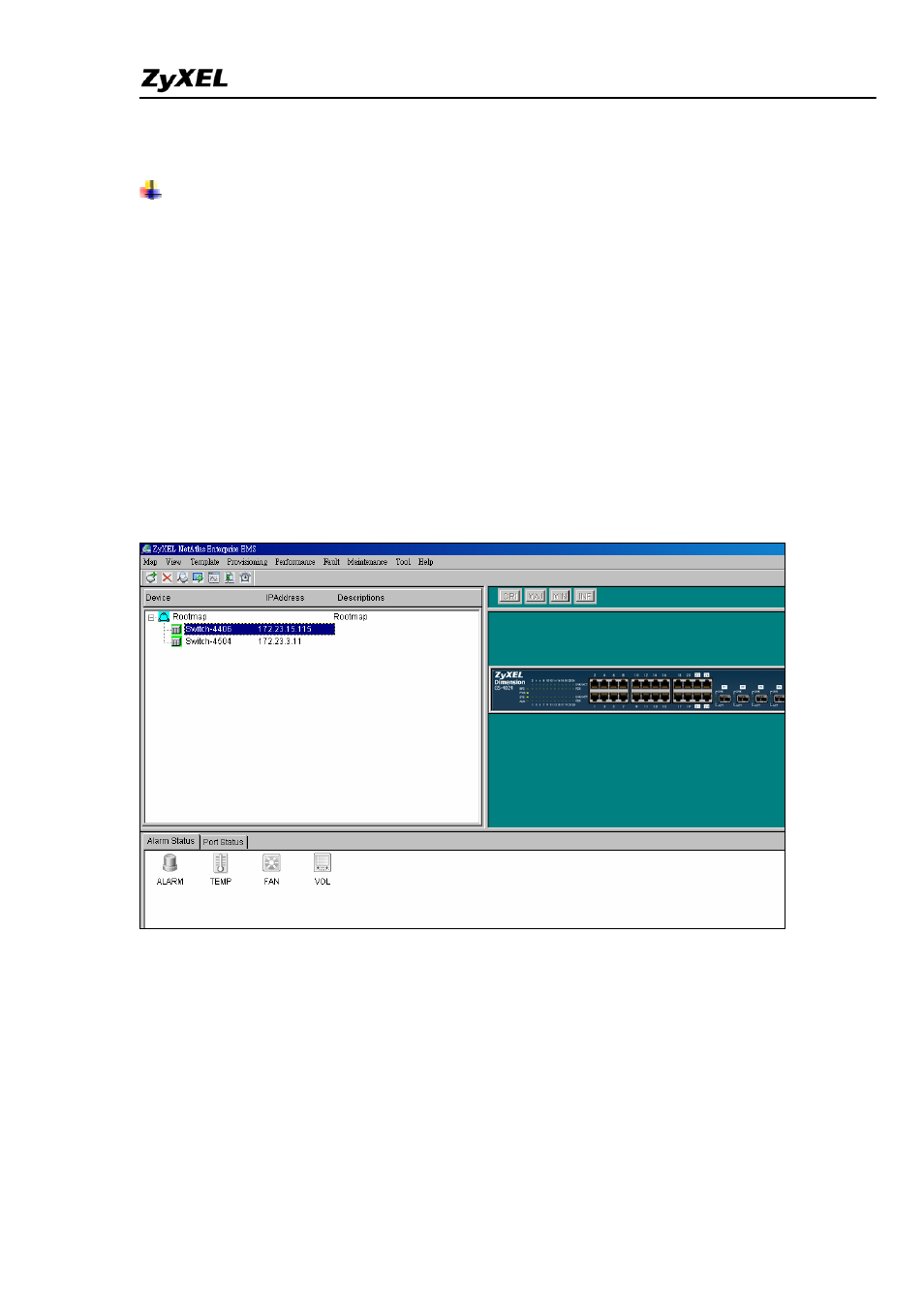

Figure 12 Device panel list

Figure 13 Switch Configuration
