ES-4024A Series Switch Support Notes
All contents copyright (c) 2006 ZyXEL Communications Corporation.
11
Physical Switch connection
How to connect two switches via Fiber Channel
Your Switch may come with one or many mini-GB ports. ZyXEL offers Small
Form-factor Pluggable (SFP) transceivers for Gigabit Ethernet and Fiber
Channel applications. These small, modular optical interface transceivers offer
a convenient and cost effective solution for the adoption of Gigabit Ethernet
and Fiber Channel in data center, campus, metropolitan area access, ring
networks, and storage area networks. It supports full duplex Gigabit speeds
and hot-pluggable feature.
Scenario

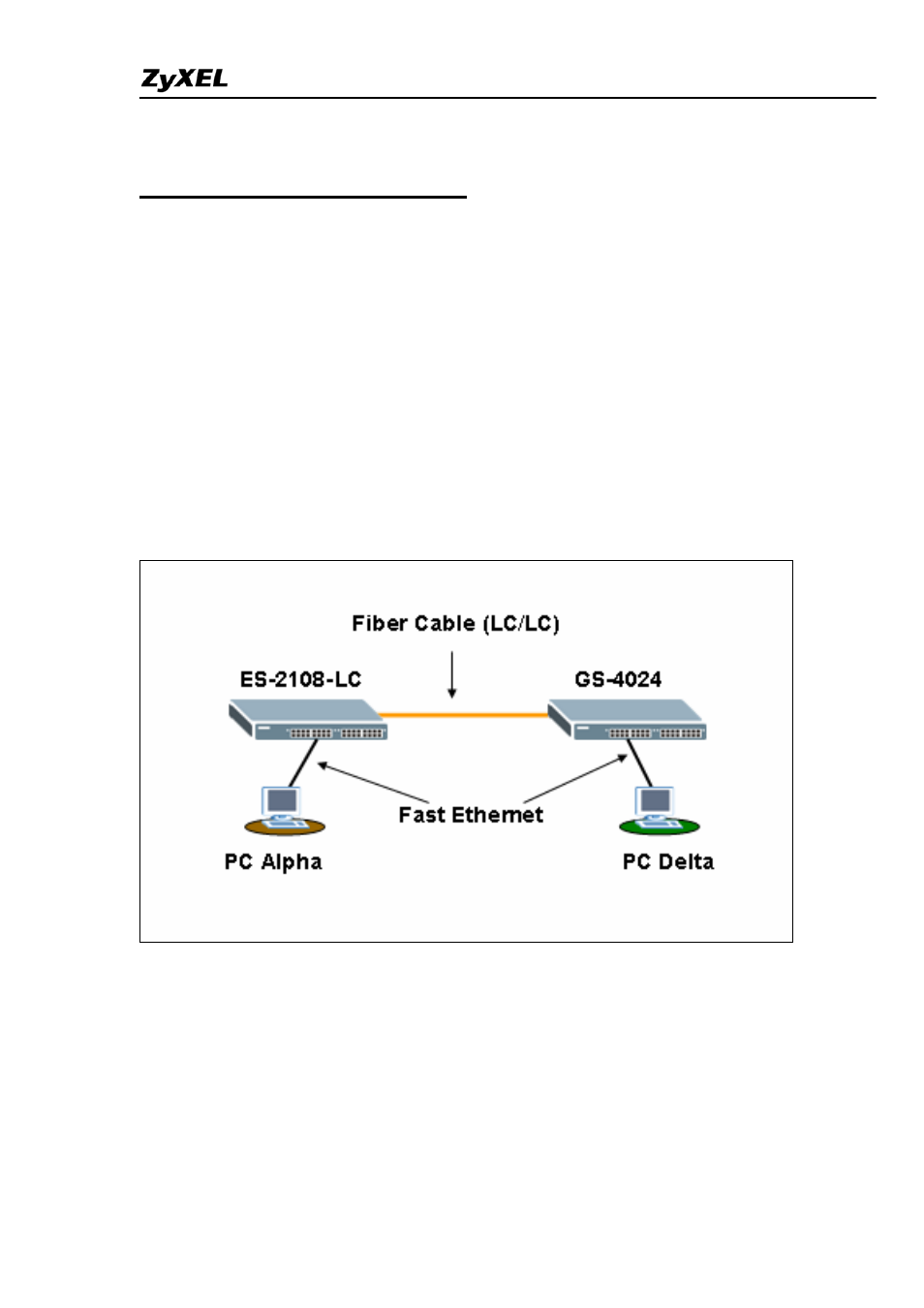

In this scenario, ES-2108-LC is connected to GS-4024 via the mini-GB
Port with a LC/LC Fiber cable (62.5/125MM). PC “Alpha” is connected to
ES-2108-LC and another PC “Delta” is connected to the GS-4024 Switch via
the RJ45 Port.
What you need here to complete this scenario:
