ES-4024A Series Switch Support Notes


All contents copyright (c) 2006 ZyXEL Communications Corporation.

82

a. Go to GUI menu Advanced Application >> VLAN >> Static VLAN >>

choose VLAN1 to show the detail. Modify VLAN1 with all ports with “Fixed”

and uncheck “Tx Tagging”. Press Add button then.

b. Create the VLAN2 via GUI menu Advanced Application >> VLAN >>

Static VLAN, and configure all ports with “Fixed” and uncheck “Tx Tagging”.

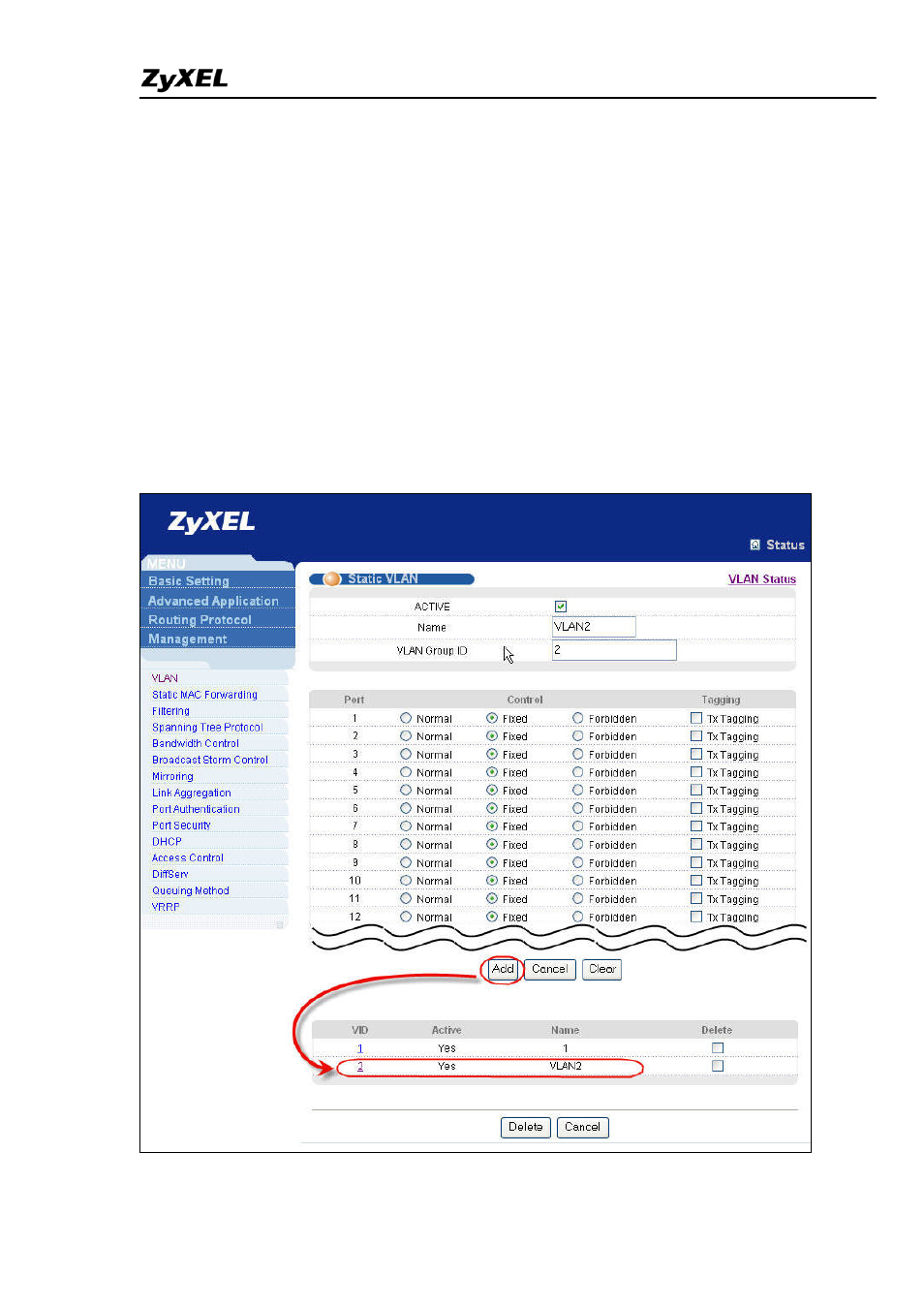

Press Add button then. See the figure below.

c. Configure uplink port in GUI menu. Set the PVID to the same ID with uplink

is 20.
