ES-4024A Series Switch Support Notes
All contents copyright (c) 2006 ZyXEL Communications Corporation.
75
Windows XP(Supplicant) settings:
There are many supplicants we can choose like MeetingHouse Aegis
client, Funk Odyssey client and Microsoft 802.1x client. We take Microsoft
802.1x client as an example here.
802.1x/MD5-challenge setup

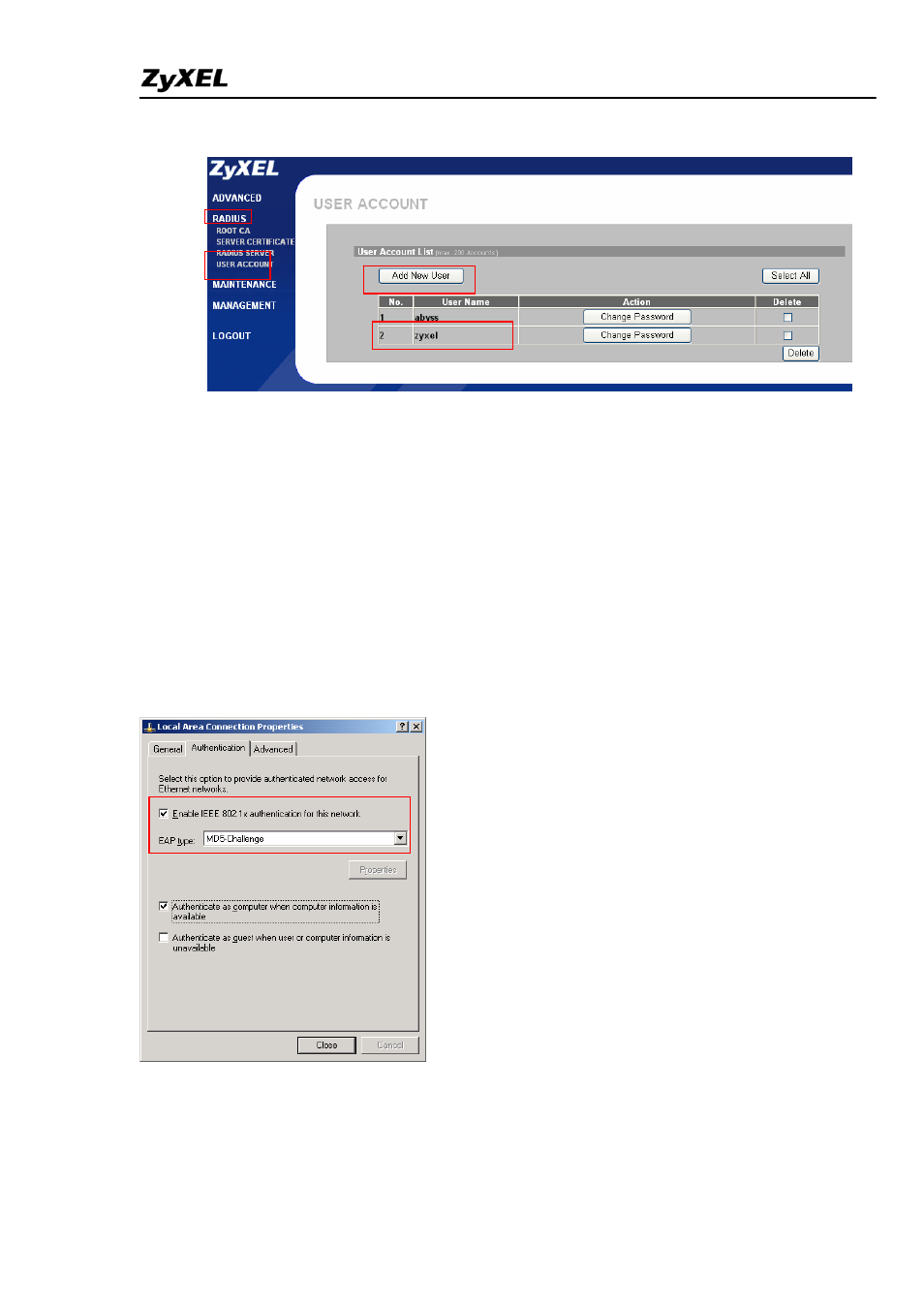

Open the Local Area connection Properties, and then click
Authentication page. Check the Enable IEEE 802.1x authentication for
this network and select the MD5-challenge in EAP type combobox.
Please see the following figure.
When the 802.1x starts, it will prompt you to enter the user name and
password. Please see the following figure.
