5
WATLOW Series 733/734 Service Manual Install & Wire, Chapter 1
Wiring

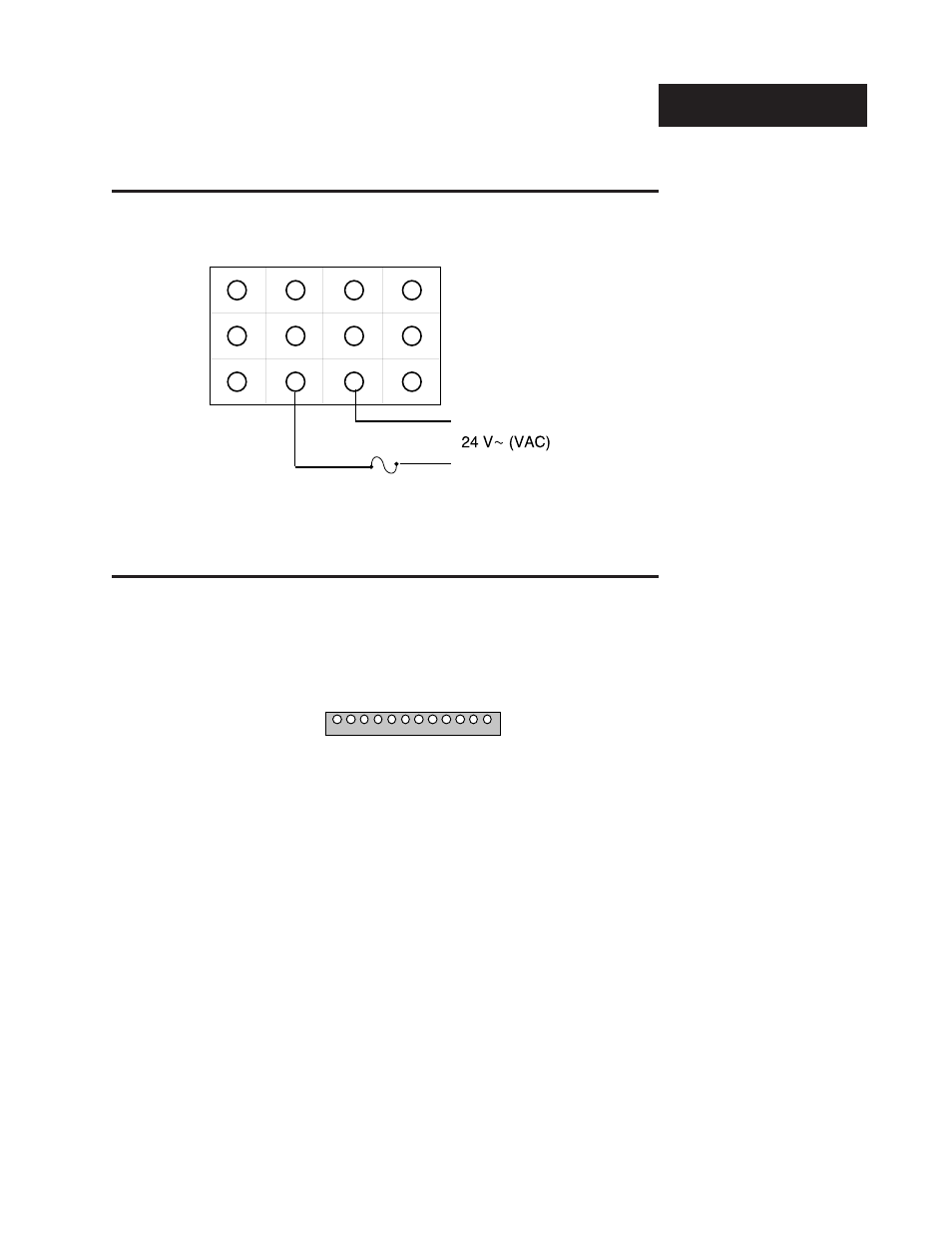

Figure 8 -
Input Wiring Con-
nector.
Figure 7 -
24V
Е Е Е Е Е (VAC) Power
Wiring.
∫
WARNING:
To avoid potential
electric shock, use
National Electric
Code (NEC) safety
practices when
wiring and connect-
ing this unit to a
power source and to
electrical sensors or
peripheral devices.
1 2 3 4 5 6 7 8 9 10 11 12
1
2
3
4
5
6
7
8
9
10
11
12
Fuse
L2
L1
Power Wiring
Input Wiring
Use this wiring connector as a reference for terminal orientation. Each indi-
vidual wiring breakdown will only show the terminals used. This connector
only applies to input wiring and communications wiring.
´ç
CAUTION:
Input power limited
to 15 watts maxi-
mum. All compo-
nents are rated for a
maximum of 15
watts.
