WARNING

Personal Injury Hazard

Disconnect from the electrical supply be-
fore servicing the unit. Failure to do so
could result in death or electrical shock.

REMOVING THE GAS SENSOR

1.

Disconnect the electrical supply to the
microwave oven.

2.

Remove the microwave oven from its
mounting location (see page 2-2).

3.

Remove the vent grille and cabinet from
the microwave oven (see the illustration
on page 2-3).

4.

Remove the five screws from the air duct,
then lift the duct and postion it so you can
access the gas sensor.

5.

Remove the screw from the gas sensor
board and remove it from the sensor cover,
then unplug the connector from the con-
trol board.

6.

Install the new gas sensor board and then
reassemble the microwave oven.

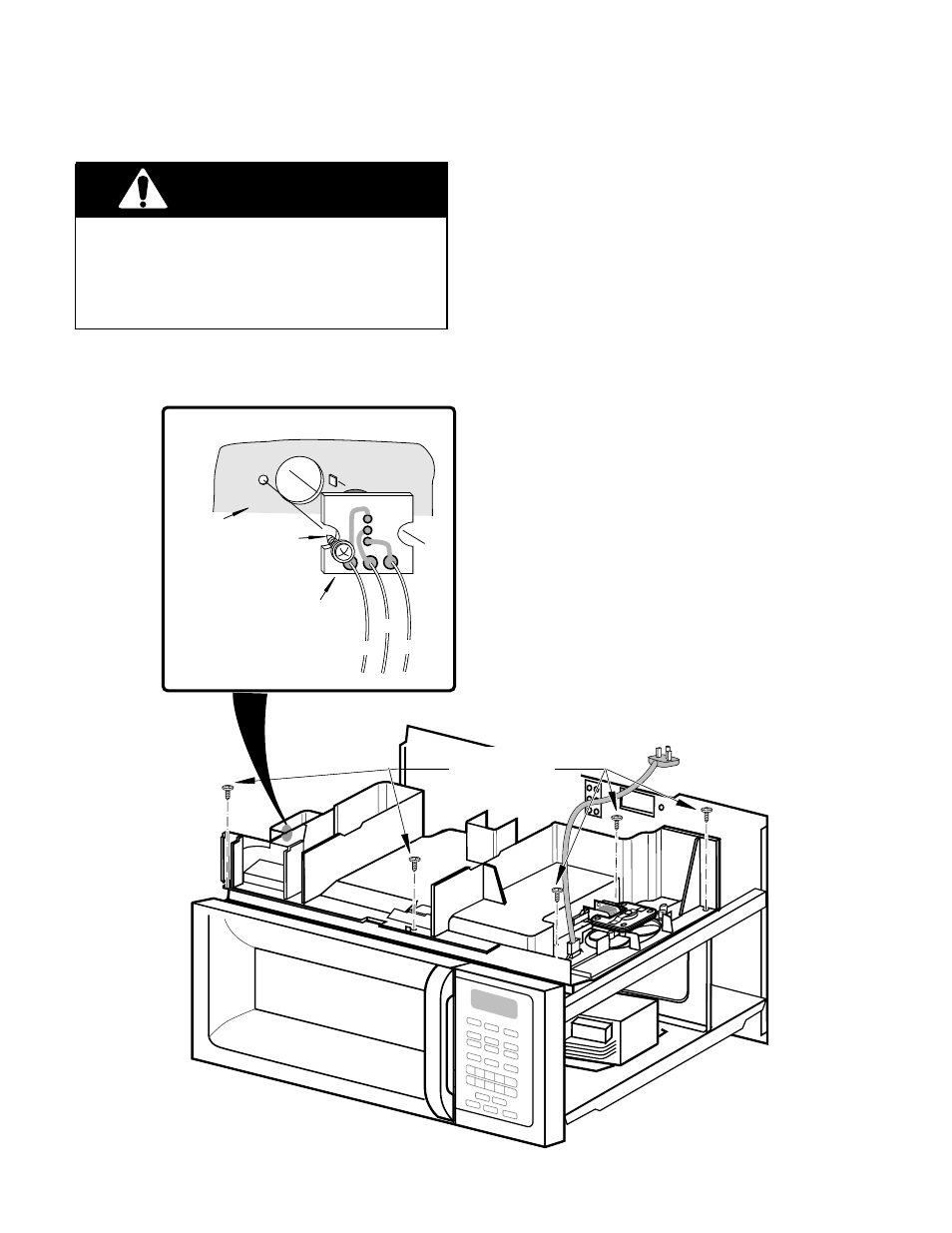

REMOVE FIVE

AIR DUCT SCREWS

RD

WH

YL

RED

WHT

YEL

SENSOR

COVER

MOUNTING

SCREW

GAS

SENSOR

BOARD
