REMOVING THE BASE THERMAL FUSE
WARNING
Personal Injury Hazard
Disconnect from the electrical supply be-
fore servicing the unit. Failure to do so
could result in death or electrical shock.
1. Disconnect the electrical supply to the
microwave oven.
2. Remove the two screws from the top of
the cabinet for the vent grille and remove
the grille (see the illustration on page
2-3).
3. Remove the control panel from the micro-
wave oven (see page 2-6).
4. Remove the mounting screws from the
base thermal fuse and remove it.
5. Unplug the connectors from the terminals
of the base thermal fuse.
6. Install the new base thermal fuse and
reassemble the microwave oven.
CONTROL PANEL
OPENING

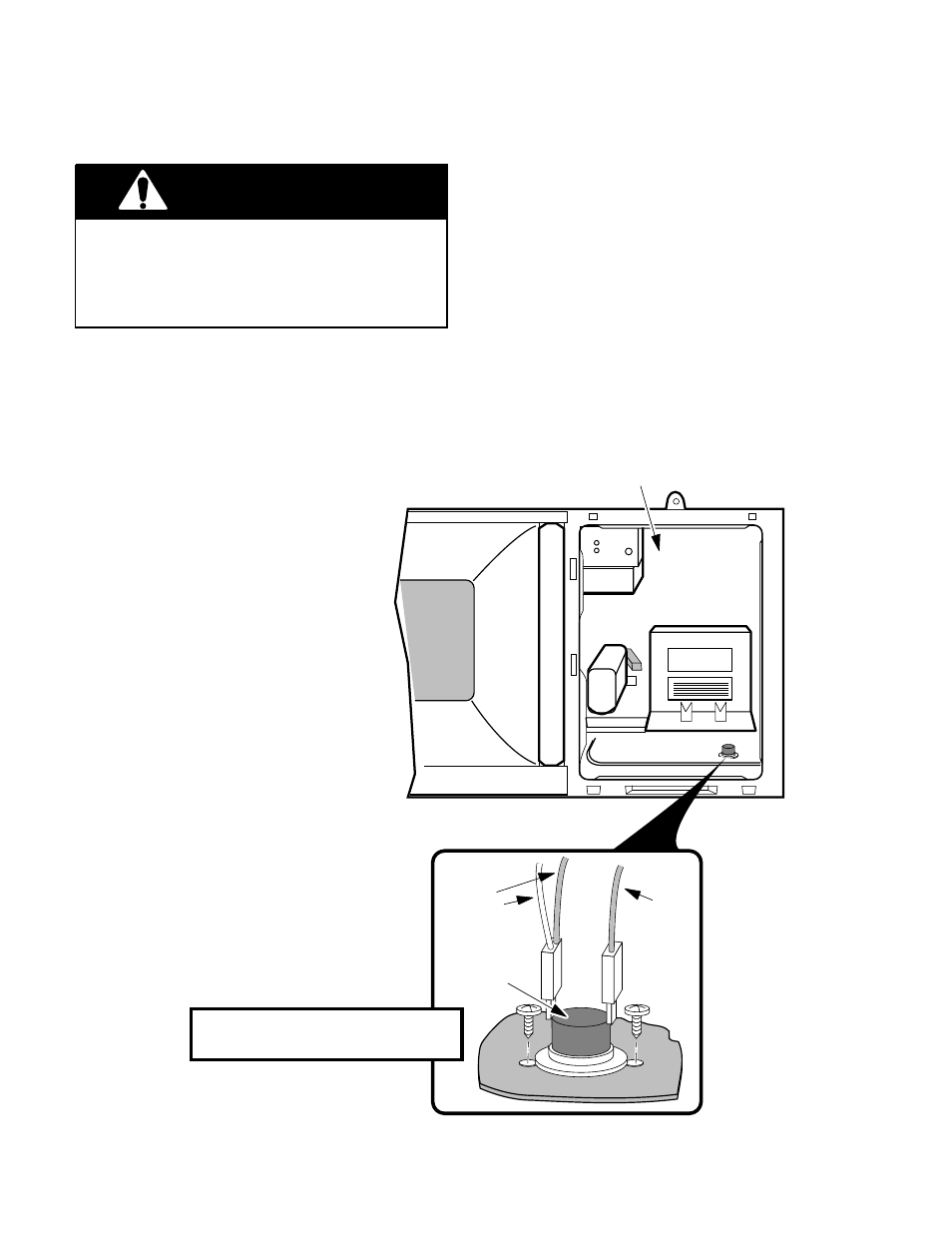

YELLOW
PINK
WHITE
BASE
THERMAL FUSE
THE BASE THERMAL FUSE CLOSES
AT 133˚F & RESETS @ 104˚F.
