Whirlpool 1997 "E" - Manual (Page 19)

2-9
© 1997 Whirlpool Corporation
Cooking Products Service Manual
Original March, 1997 4322167
Page 2-9

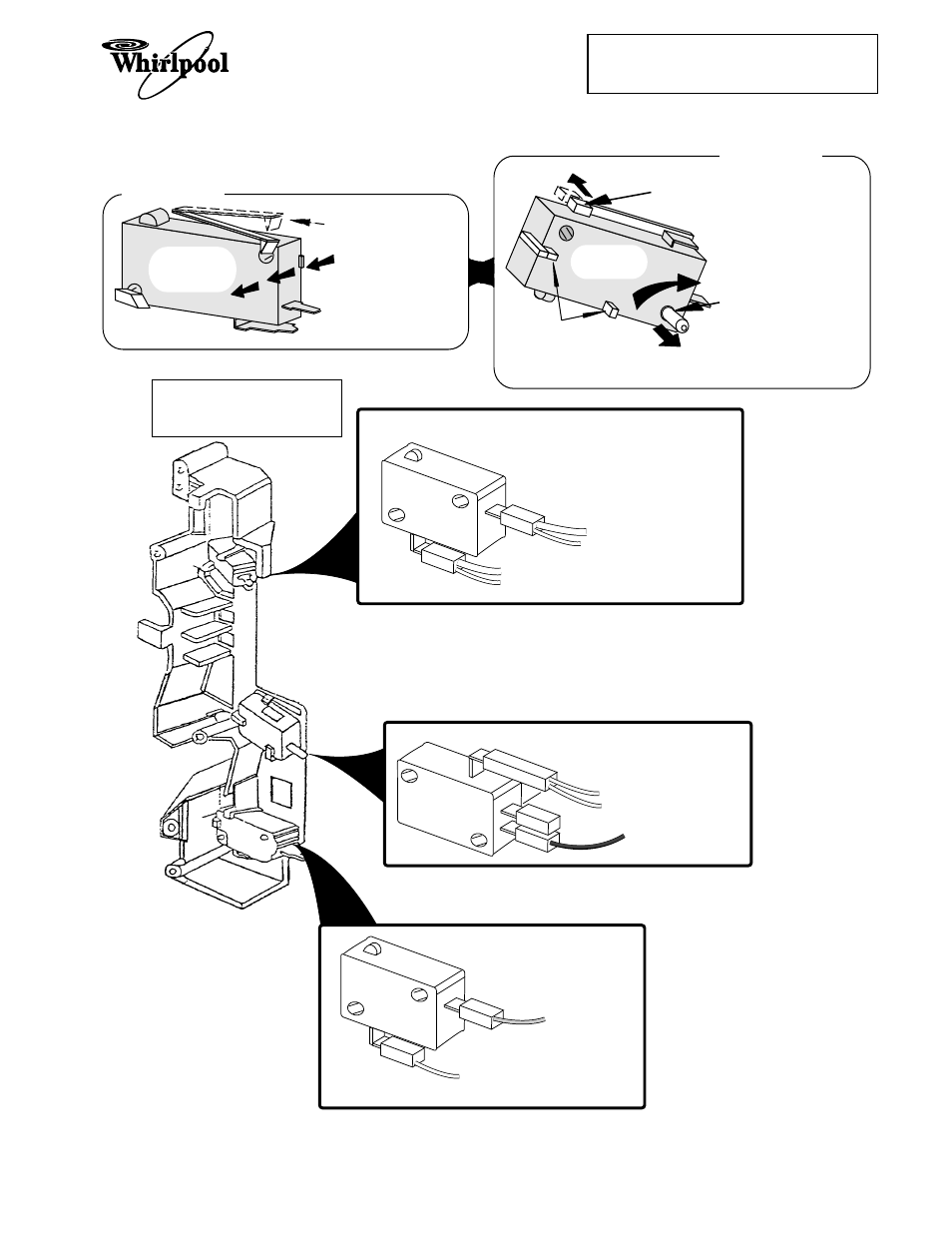

PRESS BODY IN
THIS DIRECTION TO
REMOVE SWITCH
FROM HOUSING. 2.
1. RAISE THIS LOCKING
ARM TO RELEASE
SWITCH FROM HOUSING.
1. PUSH THIS LOCKING
ARM BACK TO UNLOCK
SWITCH.
2. ROTATE SWITCH ON THIS
PIN AND REMOVE
SWITCH FROM HOUSING.
NOTE: THESE POSTS
HOLD THE SWITCH IN
PLACE ON THE HOUSING
AND ARE STATIONARY.
ALL OTHER
SWITCHES
SECONDARY
INTERLOCK
SWITCH
INSET 1
INSET 2
WHITE (H.V. Transformer)
SMALL WHITE (Monitor Switch)
LARGE WHITE (Power Cord)
SMALL WHITE (Oven Lamp)
WHITE (Turntable Motor)
RED (H.V. Transformer)
WHITE (Secondary Switch)
Blue (CN2 Pin 3)
PINK (CN2 Pin 1)
SECONDARY INTERLOCK
SWITCH
INTERLOCK MONITOR
SWITCH
PRIMARY INTERLOCK
SWITCH
INTERLOCK SWITCH
HOUSING ASSEMBLY
Interlock Switch Wiring
