Remove five air duct screws, 1997 whirlpool corporation, Page 2-21 – Whirlpool 1997 "E" User Manual
Page 31
2-21
© 1997 Whirlpool Corporation
Cooking Products Service Manual
Original March, 1997 4322167
Page 2-21

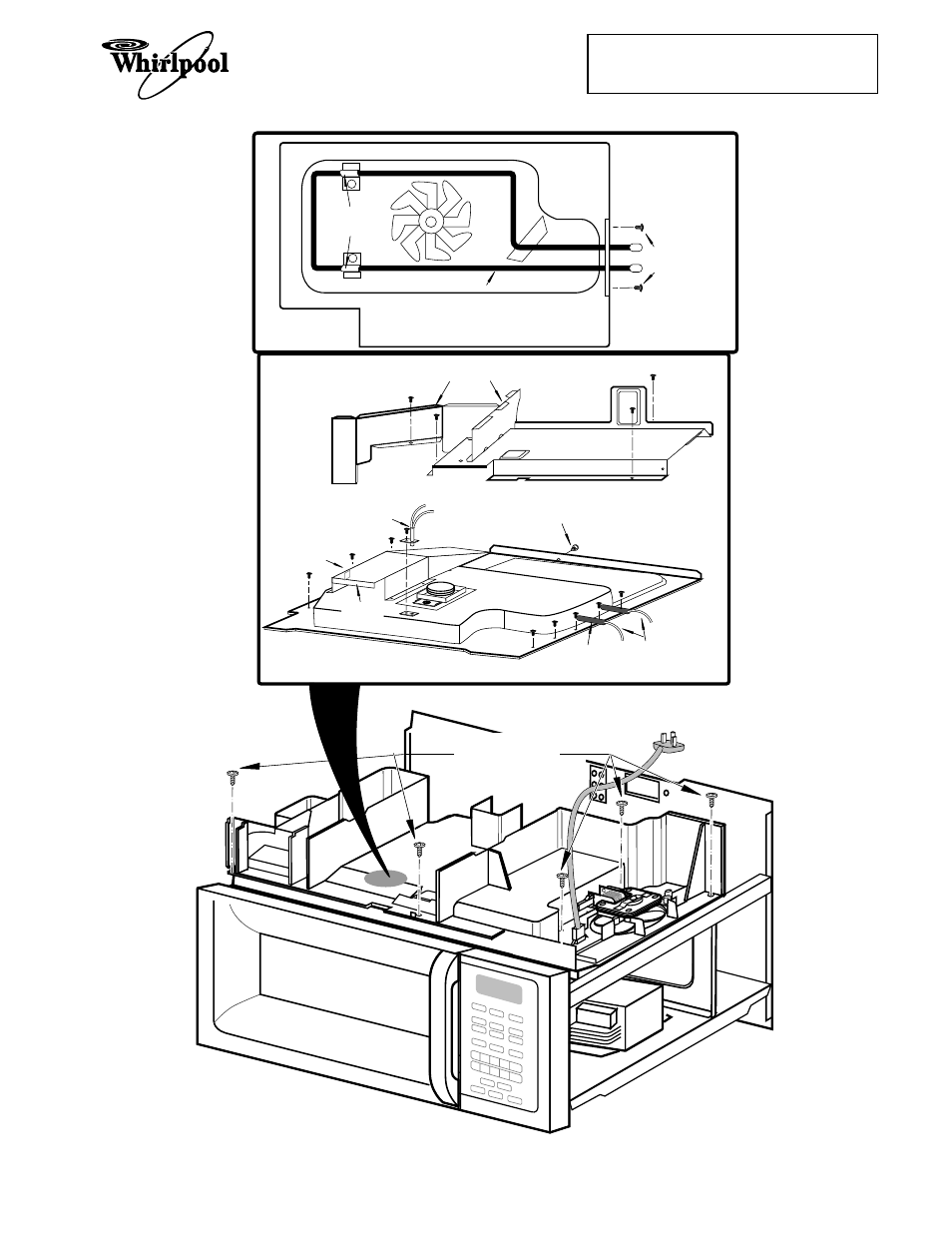

REMOVE FIVE
AIR DUCT SCREWS
CONVECTION
THERMISTOR
TOP PLATE
MOUNTING SCREWS
BRACKETS
CIRCULATION
PULLEY COVER
TOP PLATE
CONVECTION
HEATING
ELEMENT
YELLOW
WIRES
UNCLIP
ELEMENT
HERE
HEATING ELEMENT
HEATING ELEMENT
MOUNTING SCREWS
VIEWED FROM UNDER
TOP PLATE
GAS SENSOR
SENSOR
COVER
