REMOVING THE LINE FUSE
WARNING
Personal Injury Hazard
Disconnect from the electrical supply be-
fore servicing the unit. Failure to do so
could result in death or electrical shock.
2. Remove the two screws from the top of
the cabinet for the vent grille and remove
the grille (see the illustration on page
2-3).
3. Remove the control panel from the micro-
wave oven (see page 2-6).
4. From inside the control panel opening,
unsnap and open the fuseholder halves.
5. Remove the line fuse from the fuseholder
and pull the wire connectors off the ends.
6. Install the new line fuse and reassemble
the microwave oven.

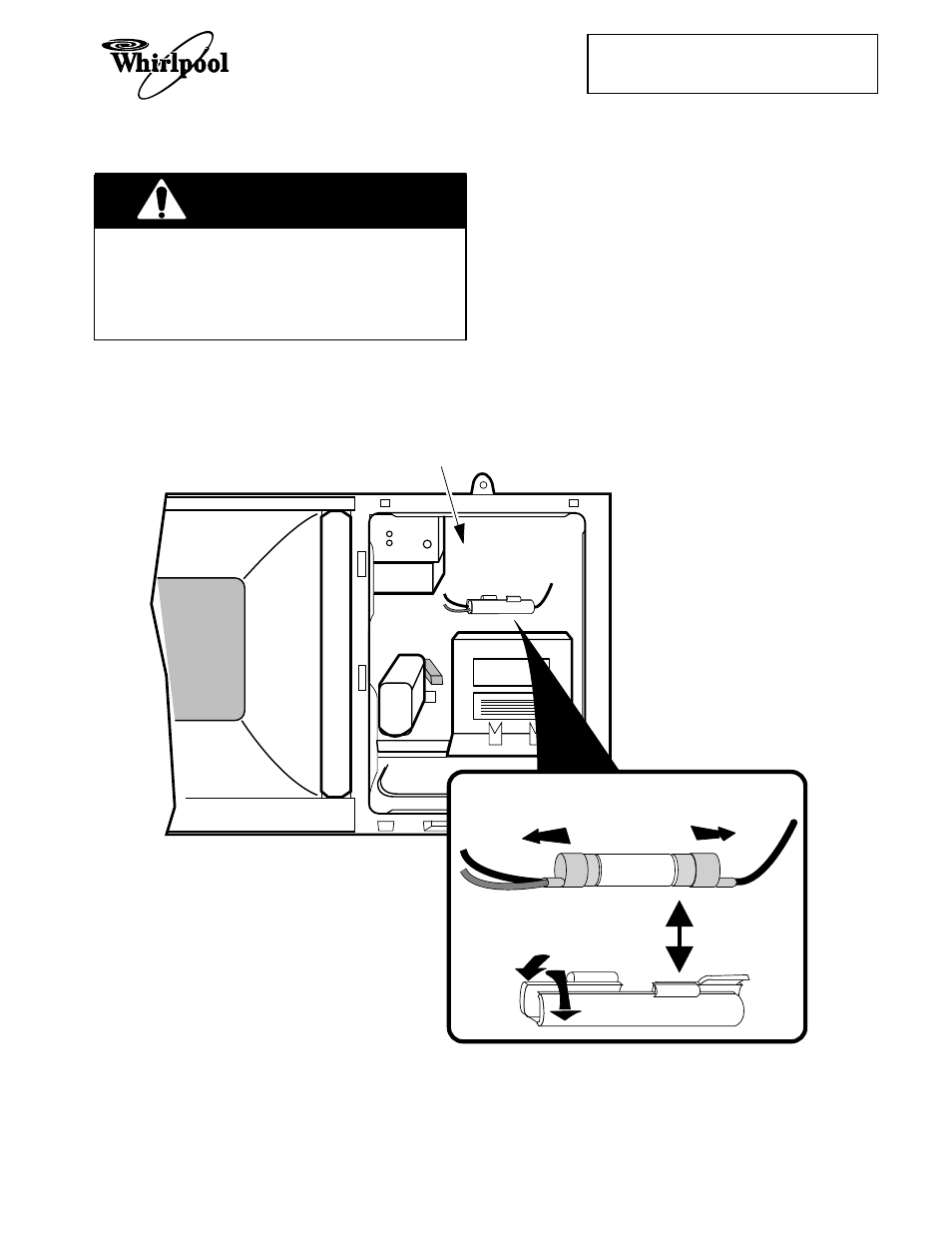

CONTROL PANEL
OPENING
LINE FUSE
FUSE HOLDER
SLIDE WIRE CONNECTORS
OFF ENDS OF FUSE
OPEN FUSEHOLDER
SECTIONS
1. Disconnect the electrical supply to the
microwave oven.
