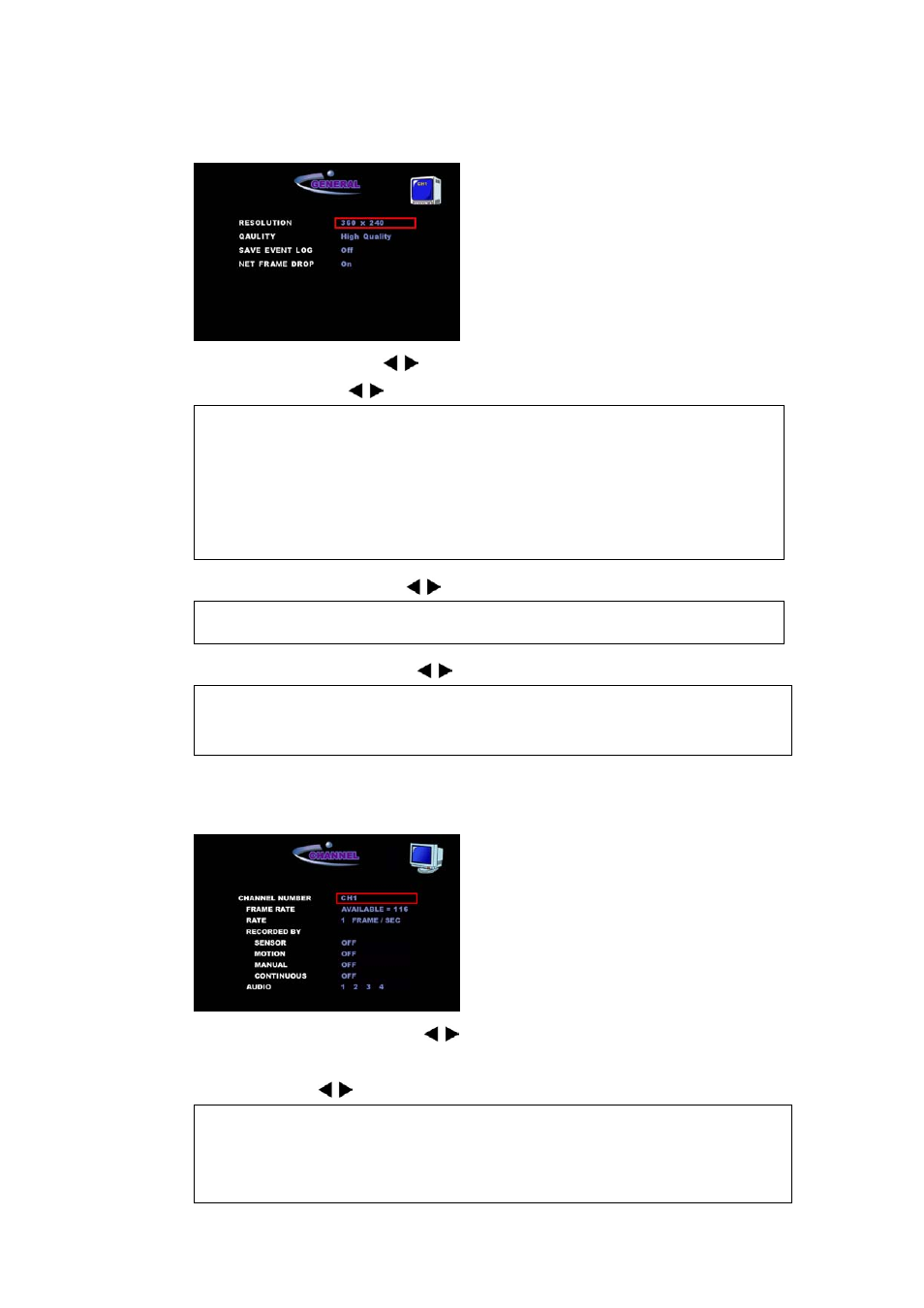

RESOLUTION – Press button to select recording resolution.
QUALITY – Press button to select recording quality.
DVR supports four types of picture quality in MUX recording mode.
offers somewhat harsh picture quality but small file size.
offers average picture quality and average file size.
offers fine picture quality and big file size.
User should choose the appropriate picture quality considering his/her purpose.
SAVE EVEN LOG – Press button to set ON or OFF
- LOG will be recorded when events occur.
NET FRAME DROP - Press button to set ON or OFF
- When network bandwidth is not sufficient for transmitting all frames, DVR
transmits only I frame, dropping B and P frame.
4-3-3-2. CHANNEL Setup
In MUX setup screen, select CHANNEL to go to CHANNEL setup screen.
CHANNEL NUMBER - Press button to select the channel.
FRAME RATE – It shows the available frame rate.
RATE –Press button to select the recording speed of the channel.
The MUX recording mode supports
NTSC: 360x240 - 1 to 30FPS / 720X480 - 1, 4, 8, 15, 22, and 30FPS
PAL: 360X288 - 1 to 25FPS / 720X576 - 1, 4, 7, 13, 18 and 25FPS
