Hood Placement
Wolf cooktop chimney wall and island hoods come with a
telescopic chimney flue that allows you to reach a ceiling
height of 8' (2.4 m) to 9' (2.7 m) with a finished look. A flue
extension to accommodate 10' (3 m) ceilings is available
through your authorized Wolf dealer. For local dealer infor-
mation, visit the find a showroom section of our website,
wolfappliance.com.
Installation of the cooktop chimney hood should be
24" (610) to 30" (762) from the bottom of the hood to the
countertop. To determine placement of the hood, you
must calculate the height of the telescopic chimney flue.
The minimum and maximum flue extension for each
cooktop chimney hood is listed in the chart.
Both sections of the telescopic chimney flue must be
installed in order for the chimney to be lifted for service.
IMPORTANT NOTE: 8' (2.4 m) ceilings may not permit
installation of the wall or island hood at 30" (762) above the
countertop.
CALCULATE CHIMNEY FLUE HEIGHT
A) Height from finished floor to finished ceiling. 8' (2.4 m)
or 9' (2.7 m) ceilings are typical.
B) Height from finished floor to countertop. A 36" (914)
countertop height is standard.
C) Hood mounting height (bottom of hood to countertop).
Dimension C must be between 24" (610) and 30" (762) .
8' (2.4 m) ceilings may not allow the maximum 30" (762)
hood mounting height.
D) Calculate chimney flue height: D = A – (B + C).
Dimension D must be between the minimum and
maximum flue extension listed in the chart. Refer to the
illustration.

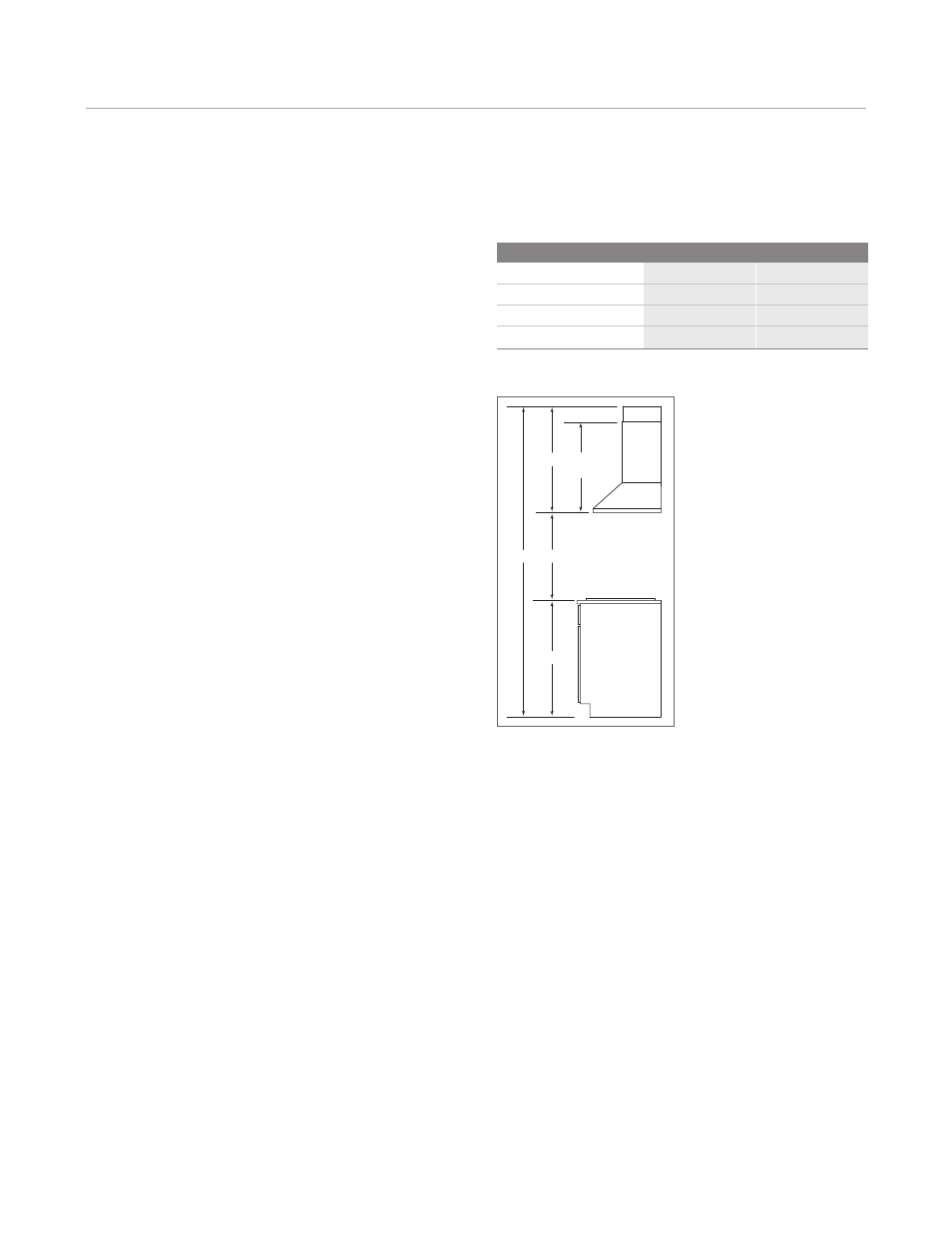

B
A C
D MINIMUM
FLUE
EXTENSION
Hood placement.
Cooktop Chimney Hoods
FLUE EXTENSION MINIMUM MAXIMUM
CTWH30 30 1 / 2 " (775) 48 1 / 2 " (1232)
CTWH36 32 5 / 8 " (829) 50 7 / 8 " (1292)
IH4227 33 1 / 2 " (851) 47" (1194)
