Cooktop Chimney Hood Installation 12
Wall Hood Installation
Locate the electrical supply for the wall hood through the
wall within the shaded area shown in the illustration on
page 8. Install ductwork as specified on pages 10–11.
IMPORTANT NOTE: If a backsplash is to be used, it should
be installed prior to mounting the wall hood. Secure the
hood mounting brackets to the wall studs prior to
installing the backsplash. Refer to installation instructions
provided with the backsplash.
INSTALL MOUNTING BRACKETS
IMPORTANT NOTE: Wolf recommends that the bottom
of the ventilation hood be installed 24" (610) to 30" (762)
above the countertop.
Construct wall framing that is flush with the interior
surface of the wall studs. Make sure that the framing is
centered in the hood installation location, and that the
height of the framing will allow the mounting brackets to
be secured to the framing within the dimensions shown in
the illustration below.
After the wall surface is finished, secure the mounting
brackets to the framing using the dimensions shown.
INSTALL HOOD
Hang the wall hood from the brackets through the rectan-
gular cut-outs on the back of the hood. Refer to the illus-
tration below. The cut-outs are larger than the brackets to
allow for vertical and horizontal adjustment.
Use height adjustment screws to adjust the hood vertically
and the depth adjustment screws to adjust the hood hori-
zontally. Secure the hood with additional mounting
screws.

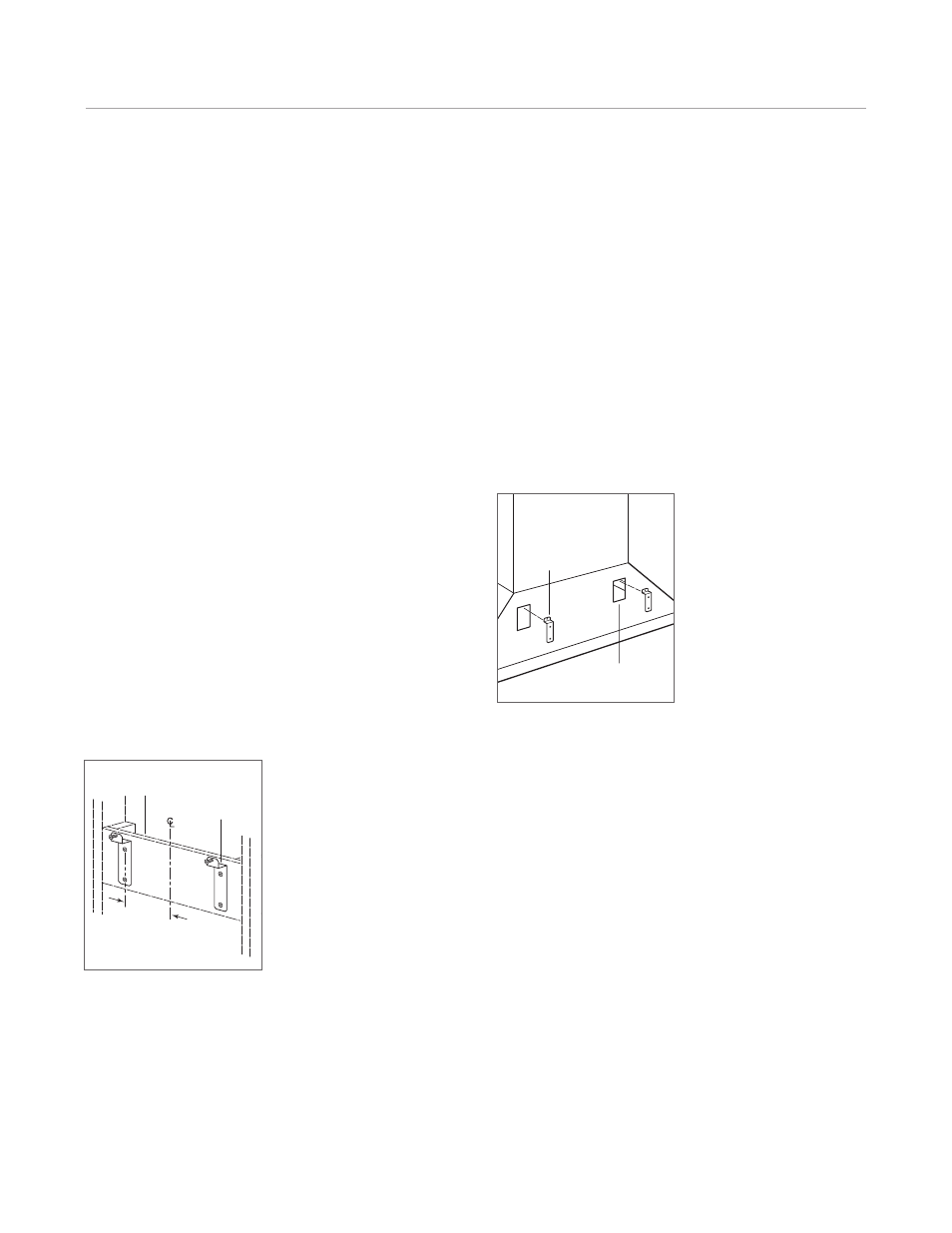

MOUNTING
BRACKET
RECTANGULAR
CUT-OUT
Install hood.
7 1 / 2 "
(190) CTWH30
9 3 / 8 "
(238) CTWH36
MOUNTING
BRACKET
FRAMING
(BEHIND DRYWALL)
Install mounting brackets.
