Part number 550-110-282/1108
55
GOLD CGs-4E Gas-Fired Water Boiler — Boiler Manual
Replacement parts — section assembly
12b

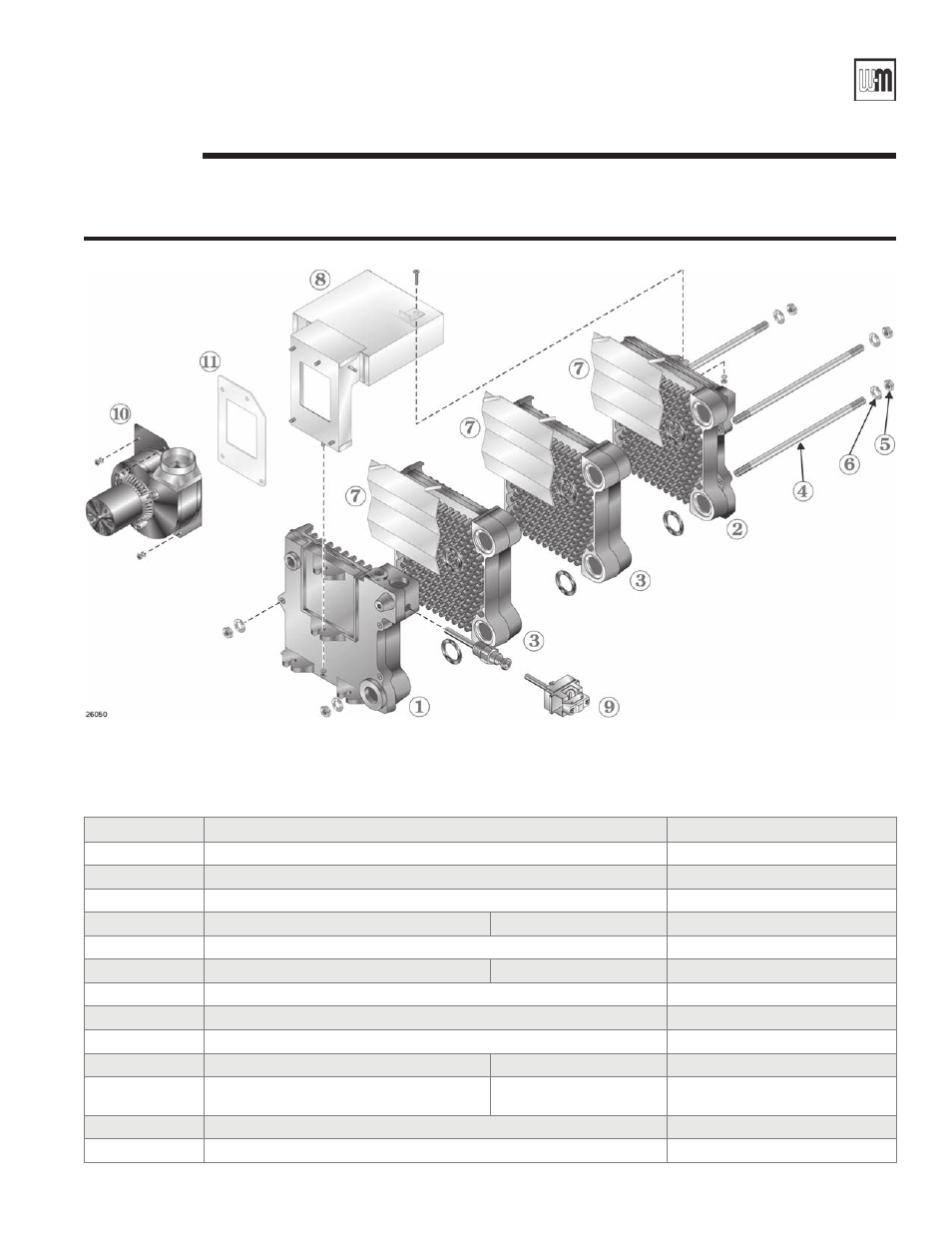

Figure 26 Section assembly
Item number Description Weil-McLain part number
1 End section, left hand, 51124 311-103-850
2 End section, right hand 51128 311-103-821
3 Intermediate section, 51125 311-103-818
not shown Replacement section assembly CGs-4E 321-114-346
not shown Section replacement kit, includes seals and sealant for 1 joint 381-354-527
4 Tie rod, M\zn” without nut (3 per boiler): CGs-4E 560-234-501
5 Nut, M\zn” (2 per tie rod) 561-928-235
6 Washer, M\zn” (1 per tie rod) 562-248-684
7 Radiation plate (1 per joint) 460-003-700
8 Collector hood and transition assembly CGs-4E 381-354-601
9 High limit, 30° differential, with well Honeywell L4080D1036
White-Rodgers 11B81-3 510-312-250
10 Inducer fan assembly kit, includes inducer fan assembly, gasket and nuts 381-356-499
11 Gasket, inducer 590-317-627
