32
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
Trolley Operator
OPERATOR MUST BE TESTED
AT TIME OF INSTALLATION AND
MONTHLY THEREAFTER TO
ENSURE THAT DOOR REVERSES
ON CONTACT WITH 2 X 4 BOARD
LAID FLAT UNDER THE DOOR.
FAILURE TO ADJUST OPERATOR,
IF NECESSARY, CAN RESULT IN
SEVERE OR FATAL INJURY. IF
YOUR OPERATOR IS EQUIPPED
WITH A PHOTOELECTRIC EYE
SYSTEM, THEN THIS MUST
BE TESTED AT THE SAME
TIME TO ENSURE THAT DOOR
DOES NOT CLOSE AND A
CLOSING DOOR OPENS IF
PHOTOELECTRIC EYE SYSTEM IS
OBSTRUCTED. FAILURE TO MAKE
ADJUSTMENTS, IF NECESSARY,
CAN RESULT IN SEVERE OR FATAL
INJURY.

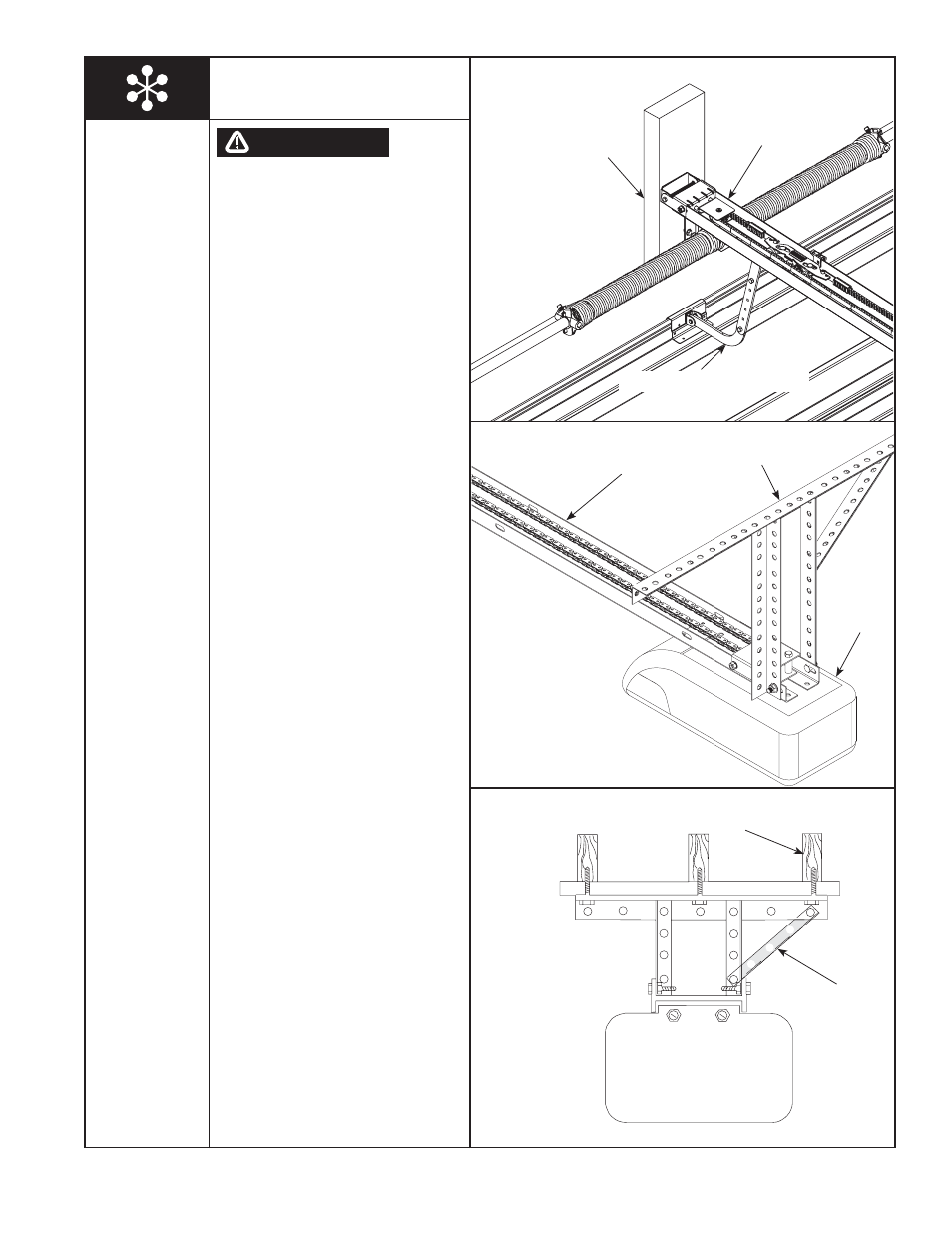

1. Install operator rail 1/2” to 1-1/2”
(13 - 38 mm) above high arc of top
section of the door.
2. Mount operator to ceiling so that
1” to 1-1/2” (25 - 38 mm)
clearance is maintained between
trolley rail and top section when
door is fully open (trolley rail will
slope down towards rear).
3. Attach door arm to operator bracket
installed in Step 10.
4. Attach operator rail to suitable
mounting surface, 2 x 6 lumber
minimum.
5. Attach operator to ceiling using
perforated
angle.
IMPORTANT: ANGLES MUST BE
SECURELY ATTACHED TO SOUND
FRAMING MEMBER(S).
HEADER
OPERATOR
FRAMING MEMBERS
PERFORATED ANGLE
OPERATOR
RAIL
PERFORATED
ANGLE
OPERATOR RAIL WARNING
SUITABLE MOUNTING
SURFACE 2 X 6
LUMBER MINIMUM
DOOR ARM TO OPERATOR BRACKET
