Tools Needed:

5

Vertical Track

IMPORTANT: THE TOPS OF THE
VERTICAL TRACKS MUST BE LEVEL
FROM SIDE TO SIDE. IF THE BOTTOM
SECTION WAS SHIMMED TO LEVEL IT.
THE VERTICAL TRACK ON THE SHIMMED
SIDE, MUST BE RAISED THE HEIGHT OF
THE SHIM.

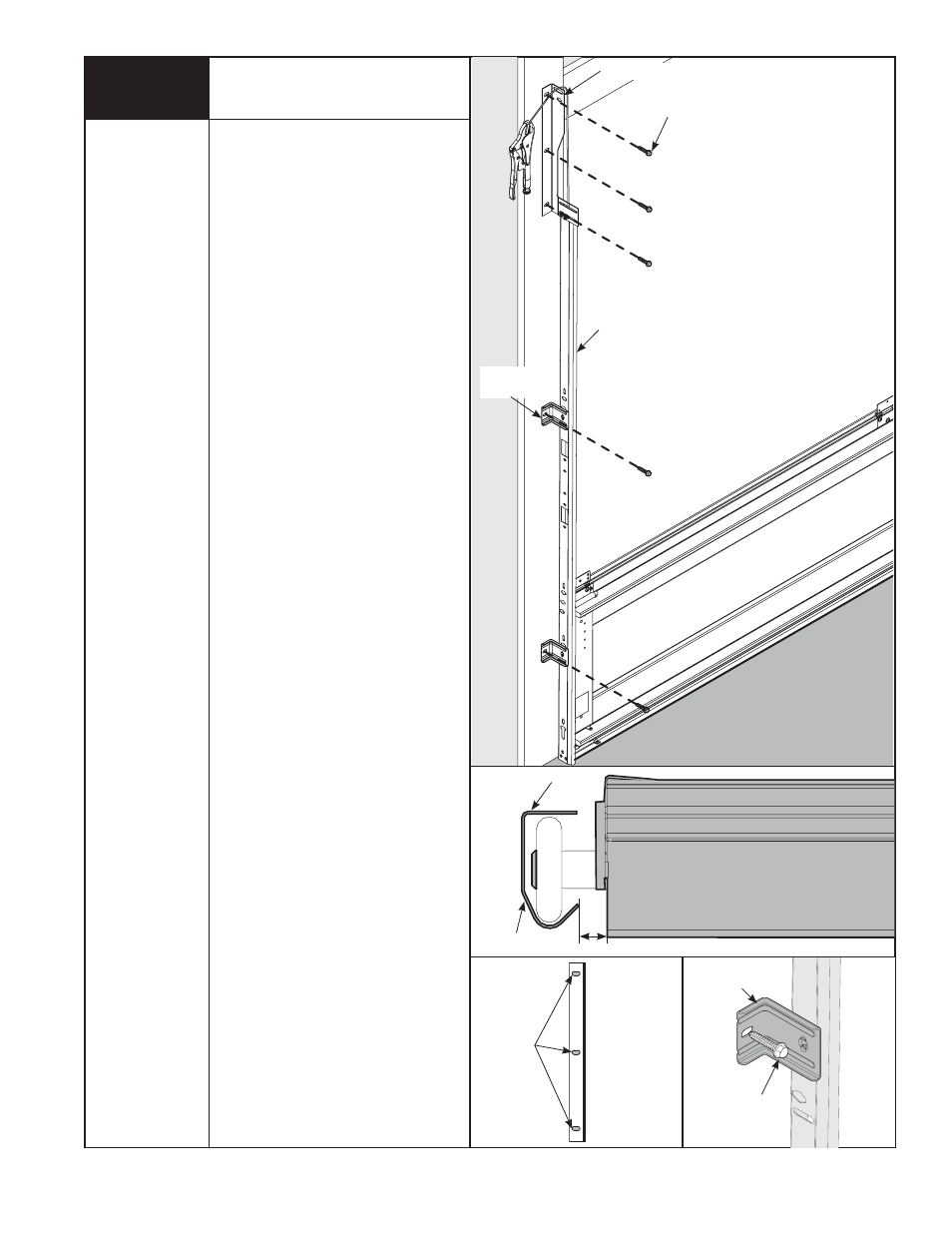

Position the left hand vertical track
assembly over the rollers of the bottom
section. Make sure the counterbalance
cable is located between the rollers and
the door jamb.

Drill 3/16” pilot holes for the lag screws.
Loosely fasten jamb brackets and
fl agangle to the jamb using 5/16” x 2”
lag screws.

On the bottom jamb bracket, tighten
the lag screw securing the bottom jamb
bracket to the jamb, to maintain the
5/8” spacing.

Repeat for the right hand side.

BOTTOM
SECTION

BOTTOM SECTION

VERTICAL TRACK

ROLLER

5/16” X 2”

LAG SCREWS

FLAGANGLE

VERTICAL

TRACK

ASSEMBLY

JAMB

BRACKET

3/16” Drill Bit

Power Drill

7/16” Socket

Driver

Tape Measure

Level

(2) Vice Grips

5/8”

LAG

SCREW

LOCATIONS

LAG

SCREW

JAMB

BRACKET
