26

Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your

local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com

Tools Needed:

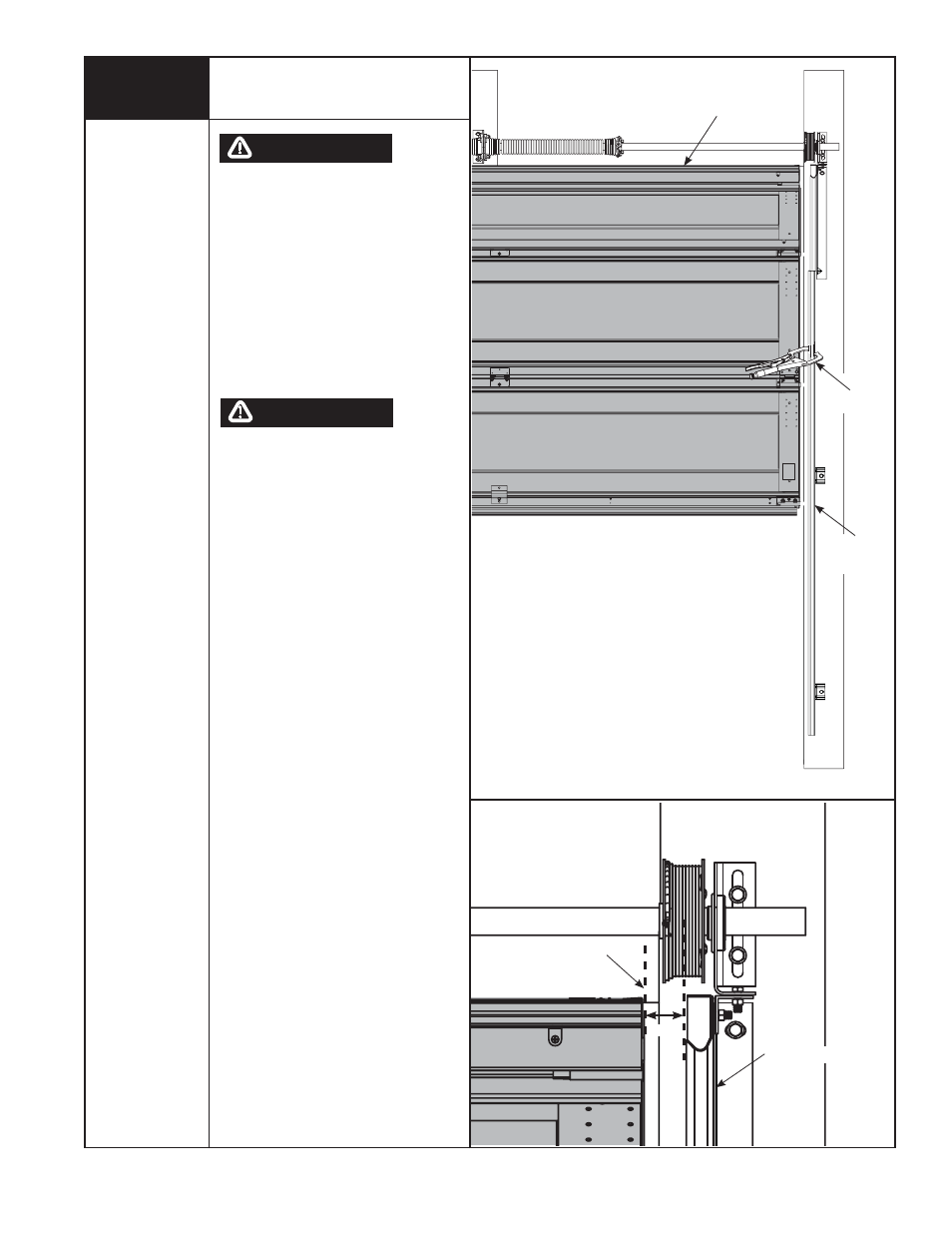

Rear Support

KEEP HORIZONTAL TRACK
PARALLEL AND WITHIN 3/4”
MAXIMUM OF DOOR EDGE,
OTHERWISE DOOR COULD FALL,
RESULTING IN SEVERE INJURY OR
DEATH.

Raise the door until the top section and
half of the next section are in a horizontal
position. Do not raise door any further
since rear of horizontal track is not yet
supported.

RAISING DOOR FURTHER CAN
RESULT IN DOOR FALLING AND
CAUSE SEVERE INJURY OR DEATH.

Clamp a pair of vice clamps on the
vertical tracks just above the second
roller on one side, just below the second
roller on the other side. This will prevent
the door from raising or lowering while
installing the rear support.

Using perforated angle, 5/16” x 1-5/8”
hex head lag screws and 5/16” bolts
with nuts (may not be supplied), fabricate
rear support for horizontal tracks. Attach
horizontal tracks to the rear supports
with 5/16”- 18 x 1-1/4” hex bolts and
nuts (may not be supplied). Horizontal
tracks must be level and parallel with
door.

NOTE: If rear supports are to be installed
over drywall, use 5/16” x 2” hex head lag
screws.

Adjust weather seal (if necessary) Now
permanently attach the weather seal to
both door jambs and header. (Temporarily
attached in PREPARING THE OPENING on
page 10.) Avoid pushing weather seal
stop too tightly against face of door.

To adjust spring tension, fully close
door. Apply locking pliers to track above
third roller. Insert a winding bar into the
winding cone. Push upward on the

21

WARNING

WARNING

Ratchet Wrench

1/2” Socket

1/2” Wrench

(2) Vice Clamps

DOOR IN THE

UP POSITION

VERTICAL

TRACK

3/4”

VICE

CLAMPS

DOOR EDGE

HORIZONTAL TRACK
