Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
(2) HORIZONTAL TRACKS WITH ATTACHED HORIZONTAL ANGLE RH/LH

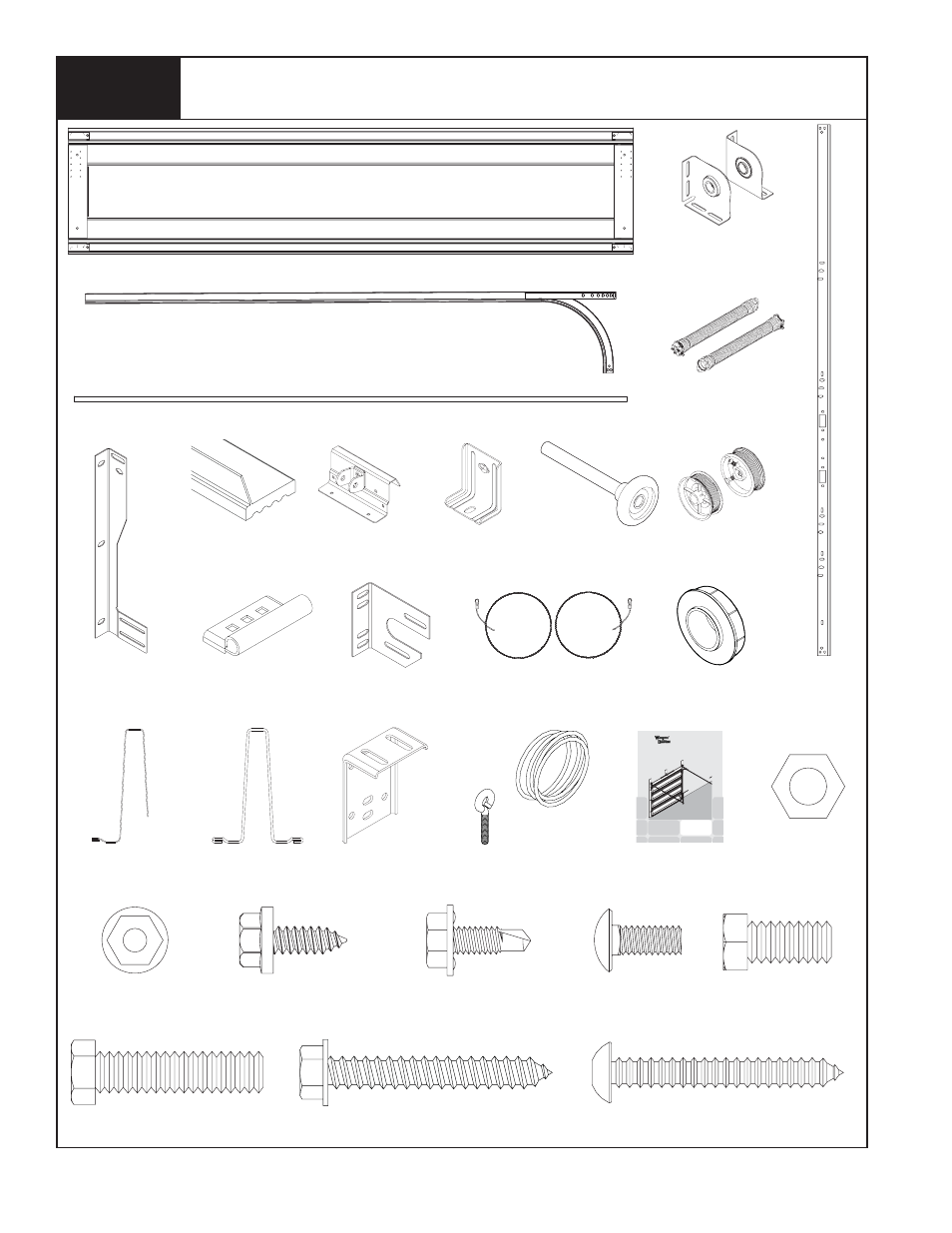

Package Contents
NOTE: DEPENDING ON THE DOOR MODEL, SOME PARTS
LISTED WILL NOT BE SUPPLIED IF NOT NECESSARY. REAR
SUPPORTS MAY OR MAY NOT BE INCLUDED WITH YOUR DOOR.
(2) SPRINGS WITH
CONES RH/LH
(2) END BEARING
BRACKETS RH/LH
TORSION TUBE
DOOR SECTIONS (AS REQUIRED)
(2) VERTICAL
RH/LH TRACKS
(2) FULLY ADJUSTABLE
RH/LH FLAGANGLES
ROLLERS
(AS REQUIRED)
WEATHER SEAL &
NAILS (IF INCLUDED)
(1) OPERATOR
BRACKET
Q.I. JAMB BRACKETS
(AS REQUIRED)
(2) CABLE DRUMS
RH/LH
CENTER BEARING
BRACKET
(2) TOP BRACKET
SLIDES
(1) NYLON CENTER
BUSHING
1/4”- 20 FLANGED HEX
NUT (AS REQUIRED)
(4) 1/4”-20 X 5/8”
CARRIAGE BOLT
1/4”-14 X 5/8” SELF TAPPING
SCREW (AS REQUIRED)
1/4”-20 X 11/16” SELF DRILLING
SCREW (AS REQUIRED)
3/8”-16 X 3/4”
HEX HEAD BOLT
(2) COUNTERBALANCE CABLES
5/16” X 2” TAMPER PROOF HEX HEAD LAG
SCREW (AS REQUIRED)
5/16” X 2” HEX HEAD LAG SCREW
(AS REQUIRED)
3/8”-16 X 1-1/2” HEX HEAD BOLT
(2) TOP BRACKET
BASE
U-BAR
(IF INCLUDED)
ASYMMETRICAL U-BAR
(IF INCLUDED)
(2) 3/8”- 16
HEX NUT
MANUAL
9100, 9600 Series
IMPORTANT NOTICE! Read these instructions carefully before
attempting installation. If in question about
any of the procedures, do not perform the
work. Instead, have a qualified door agency
do the installation or repairs.
© Copyright 2002-2006 Wayne-Dalton Corp. Part No. 290771 Rev2 06/06/2005
Torsion Spring
Installation Instructions and Owner’s Manual
Portland Source Plant
#6 SCREW EYE AND PULL
ROPE (IF INCLUDED)
