15

Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your

local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com

Tools Needed:

INST

ALLA

TION

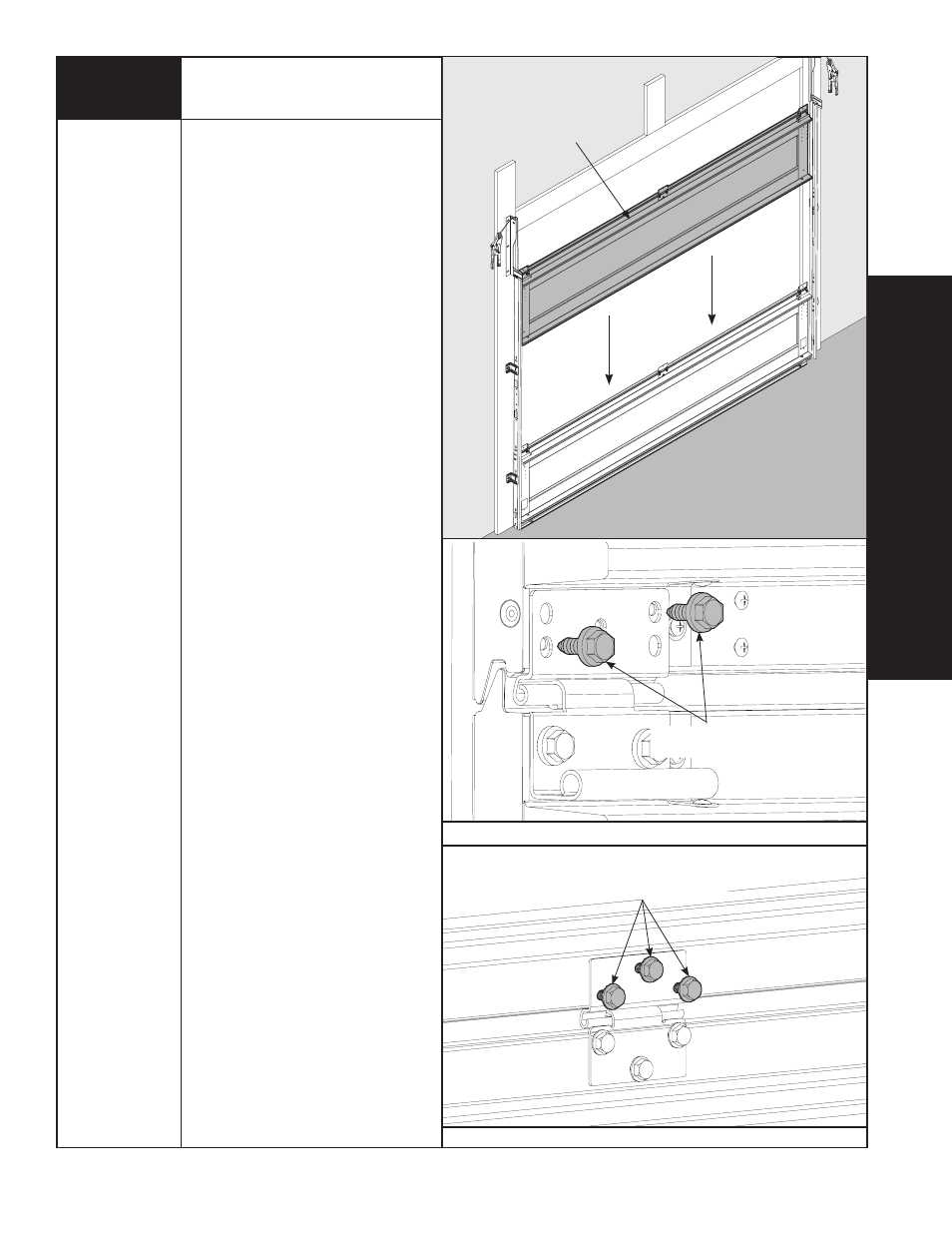

Stacking Sections

NOTE: For door section identifi cation
see page 4.

NOTE: Make sure hinge leafs are
fl ipped down, when stacking another
section on top.

Place rollers in hinge tubes of the
second section (lock section).

With assistance, lift the second section
and guide rollers into the vertical
tracks.

Keep sections vertically aligned and
fasten hinges to connect the sections
using 1/4”- 14 x 5/8” self tapping
screws.

Repeat for other section(s) except top
section.

IMPORTANT: END HINGES HAVE (2)
SCREWS AND INTERMEDIATE HINGES
HAVE (3) SCREWS.

NOTE: Install lock at this time (sold
separately). See instructions in
OPTIONAL SIDELOCK INSTALLATION on
page 28.

6

Power Drill

7/16” Socket

Driver

(2) 1/4”-14 X 5/8”

SELF TAPPING SCREWS

END HINGES (LEFT HAND SHOWN, RIGHT HINGE SYMMETRICALLY OPPOSITE)

INTERMEDIATE HINGES

(3) 1/4”-14 X 5/8” SELF TAPPING

SCREWS

LOCK SECTION
