Drums
IMPORTANT: RIGHT AND LEFT HAND
IS ALWAYS DETERMINED FROM INSIDE
THE BUILDING LOOKING OUT.
NOTE: For door section identifi cation
see page 4.

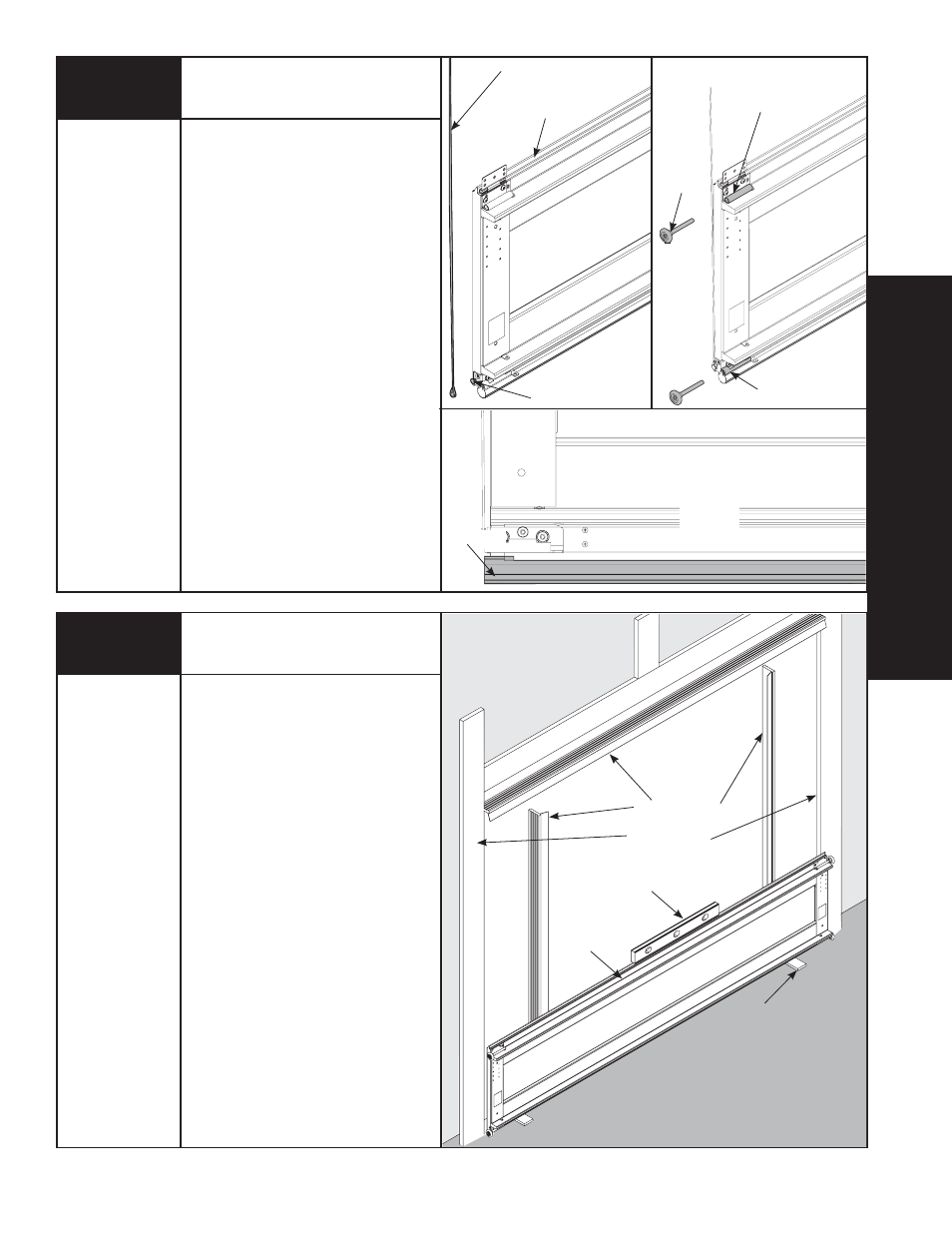

Uncoil the counterbalance cables and
make sure you place the right hand
cable loop on the right hand milford pin
and place the left hand cable loop on
the left hand milford pin.
Insert a roller into bottom bracket of the
bottom section and insert another roller
at #1 end hinge at the top of the bottom
section. Repeat for other side.
NOTE: Verify astragal (bottom seal)
is aligned with door section. If there
is more than 1/2” excess astragal on
either side, trim astragal even with door
section.
None
ROLLERS
HINGE TUBE
BOTTOM BRACKET
BOTTOM
SECTION
ASTRAGAL
3
Bottom Section
Before installing the bottom section,
the weather seal (may not be included)
must be installed (see PREPARING THE
OPENING on page 10)
Center the bottom section in the door
opening. Level section using wooden
shims under the bottom astragal if
necessary.
Level
4
BOTTOM
SECTION
DOOR OPENING
WEATHER SEAL
WOODEN SHIMS
(IF NECESSARY)
LEVEL
BOTTOM SECTION
MILFORD PIN
COUNTERBALANCE CABLE
