USING AN ALTERNATE MOUNT OR STAND
Cintiq can be attached to any mount arm or
stand conforming to the VESA 100 standard.
Mounting screws that are 4 mm wide with a
0.7 mm pitch (M4 Regular), with a screw
clearance depth from 13 – 18 mm are required.
To attach Cintiq to a VESA 100 mounting
platform:
1. Turn off your computer and power off
Cintiq. Then disconnect all cables from
between the unit and your computer.
2. Remove Cintiq from its stand and place it
face down on a flat, soft surface (such as a
cloth spread across a desktop).
3. Remove the bearing hub by unscrewing
the four bearing hub attachment screws.
Then carefully separate the bearing halves
and remove the bearing stopper to free up
the cabling. Take care not to lose the
small bearing stopper found within the
inner groove of one of the hub sections.

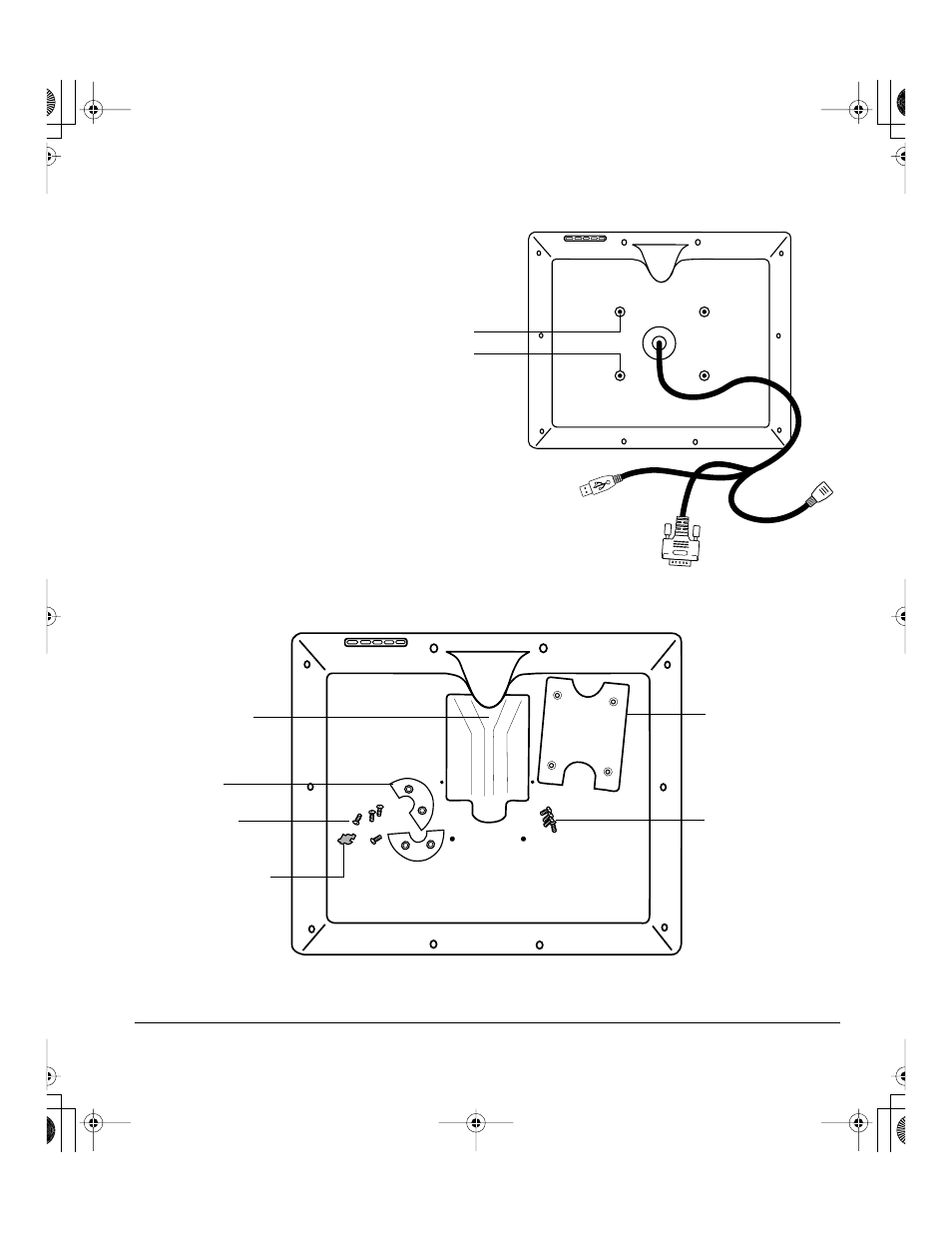

Bearing hub
sections
(removed)
Attachment
screws
Bearing stopper
Cable cover
plate (removed)
Attachment
screws
Cable channel
