OPTIONAL DISPLAY CONFIGURATIONS
After mounting the pen display unit on the Cintiq stand, you can rotate the pen display tablet to a variety
of positions. If you do not plan to rotate the Cintiq and want to fasten it more securely to the stand, you
can install the rotation lock screws as shown below.
To lock Cintiq to the display stand:
• Rotate the pen display to the standard landscape position (with the power switch located at the top
of the unit).
• Two holes in the stand will line up with two screw holes on the Cintiq unit.
• Use a Phillips-head screw driver to insert the lock screws and hand-tighten them.
C AUTION Avoid placing excess
physical pressure on the
Cintiq stand; doing so
can damage the stand.

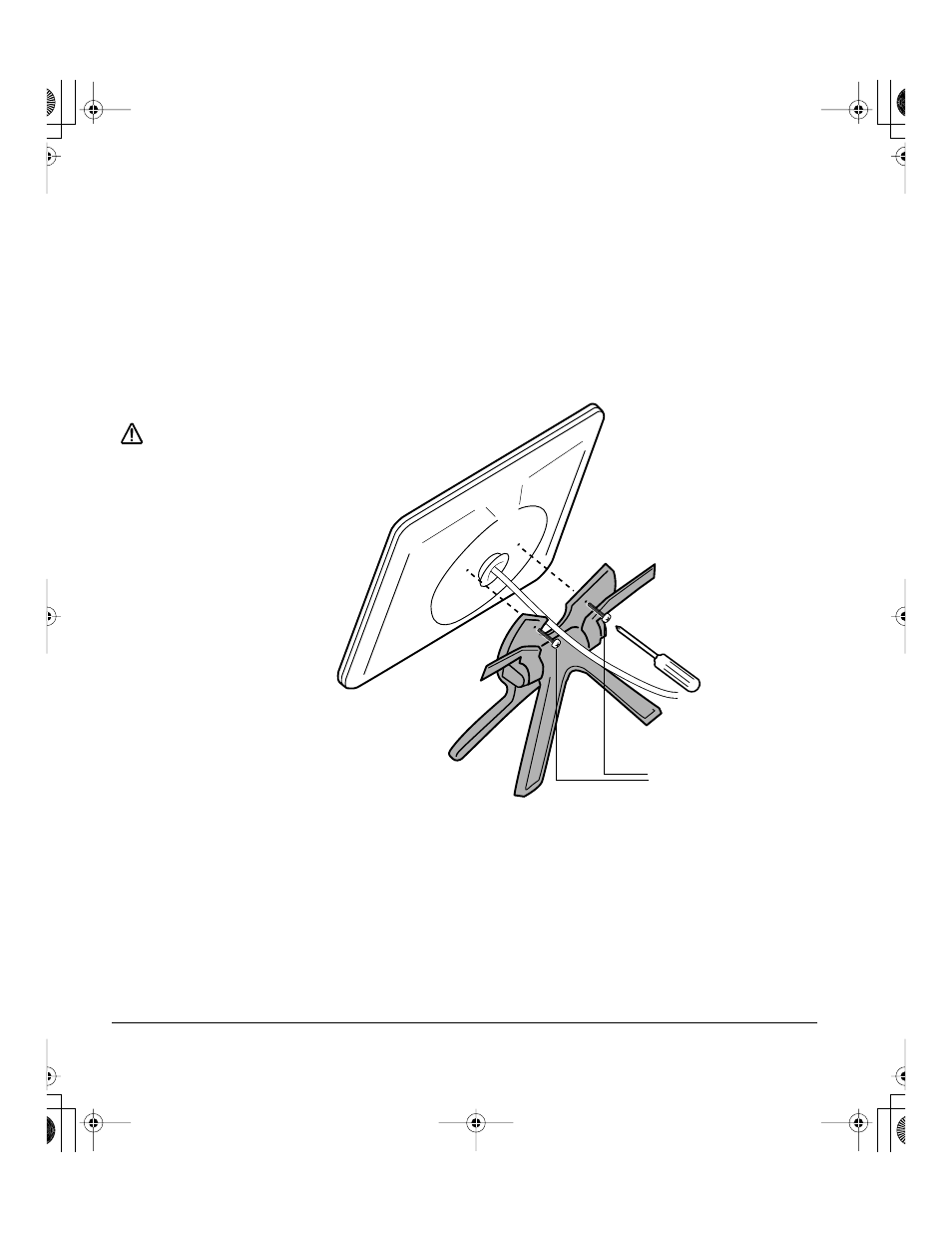

Lock screws
