Cintiq pen display components
Page 15

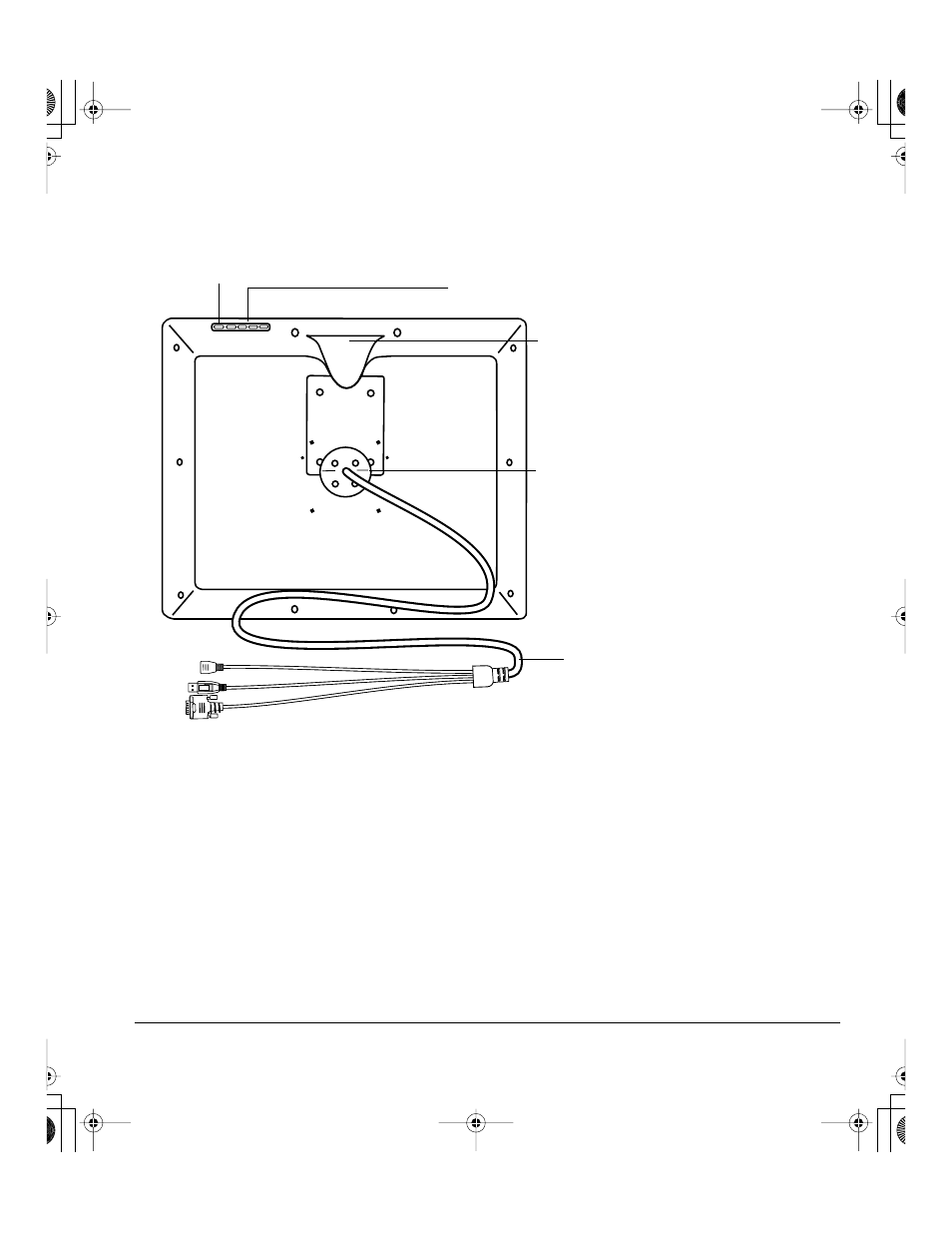

REAR VIEW
Next step: Installation. See page 16.
Integrated pen holder
and alternate cable exit
The pen can be stored here. If you are not
using the Cintiq stand supplied with the unit,
you can route the cable to exit from this
location. See Using an alternate mount or
stand on page 57.
Digital/Analog (DVI/VGA) switch
Set this switch for the video
connection you will be using.
Cabling and connectors
The connectors on the integrated cable
are for DVI-I video, USB data, and power.
Bearing hub
Fits into the bearing recess on the Cintiq
stand. Allows rotation of Cintiq, and easy
mounting and removal from the stand.
On Screen Display (OSD) controls
Use these controls to adjust a variety of display settings.
See Adjusting the display on page 35.
Important: Always store the pen display on the Cintiq display stand or in its original
packing carton when not in use. Do not store the display unit on a surface that would
excessively bend or crimp the cable.
