17 English

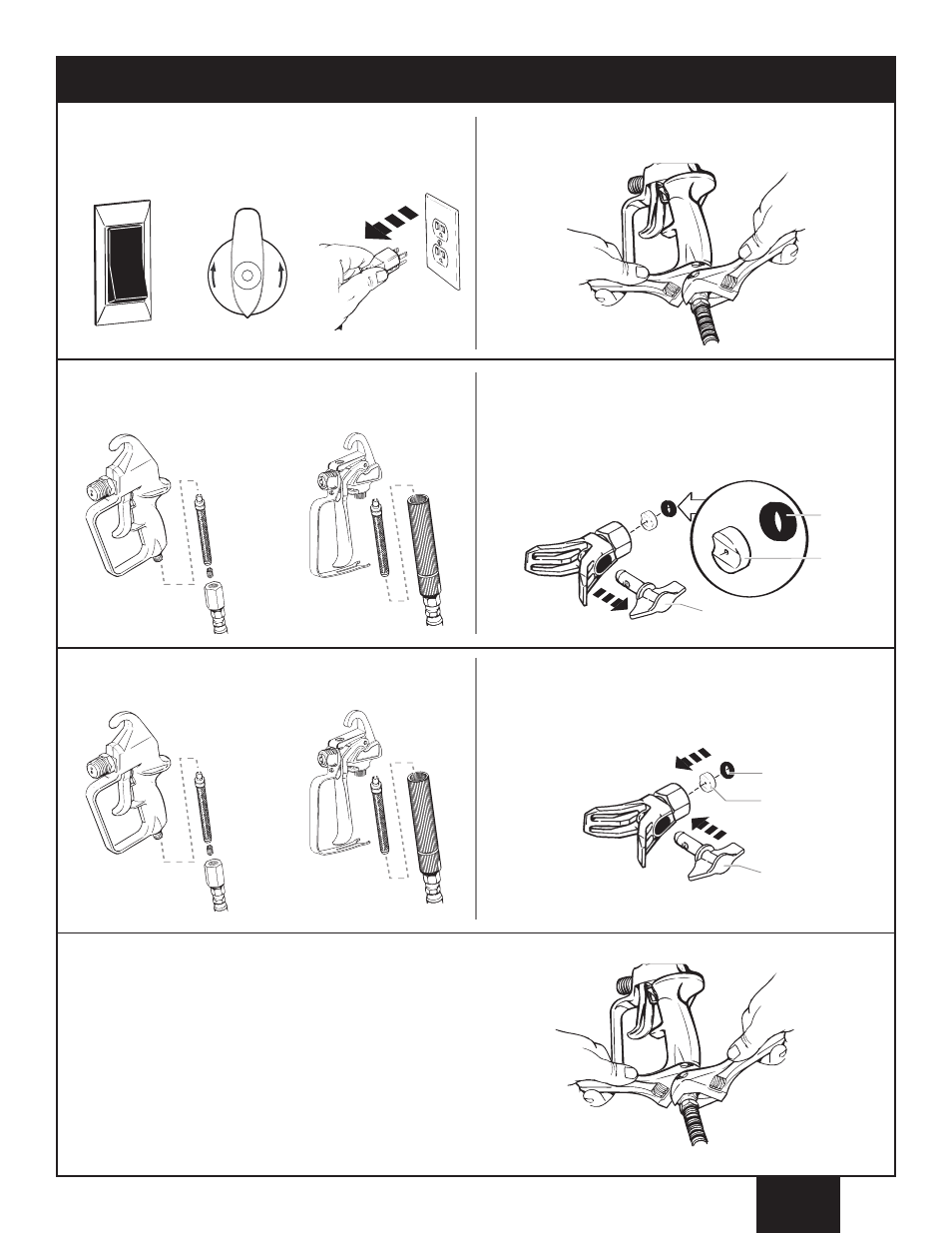

1. Make sure the pump is switched OFF (O). Make sure the
PRIME/SPRAY knob is turned to PRIME. Unplug the
sprayer.
2. Remove spray gun from the paint hose using adjustable
wrenches.
(b)
(c)
(a)
3. Remove filter from spray gun (refer to Cleaning the
Spray Gun Filter, page 12).
4. Remove spray tip (a) from spray guard assembly. Clean
spray tip with a soft-bristled brush and the appropriate
cleaning solution. Be sure to remove and clean the
washer
(b) and saddle seat (c) located in the rear of the
spray tip assembly.
GX-05
GX-08
GX-07
(b)
(c)
(a)
5. Install gun filter tapered-end first. Reassemble spray gun. 6. Install spray tip (a), saddle seat (c) and washer (b), and
replace spray guard assembly.
GX-05
GX-08
GX-07
7. Thread the spray gun back onto the paint hose. Tighten
with a wrench.
O
S
P
R
A
Y
P
R
IM
E
Cleanup -
Cleaning the Spray Gun Components
