VIVOTEK - A Leading Provider of Multimedia Communication Solutions

User's Manual - 7

Network deployment

Setup the Network Camera over the Internet

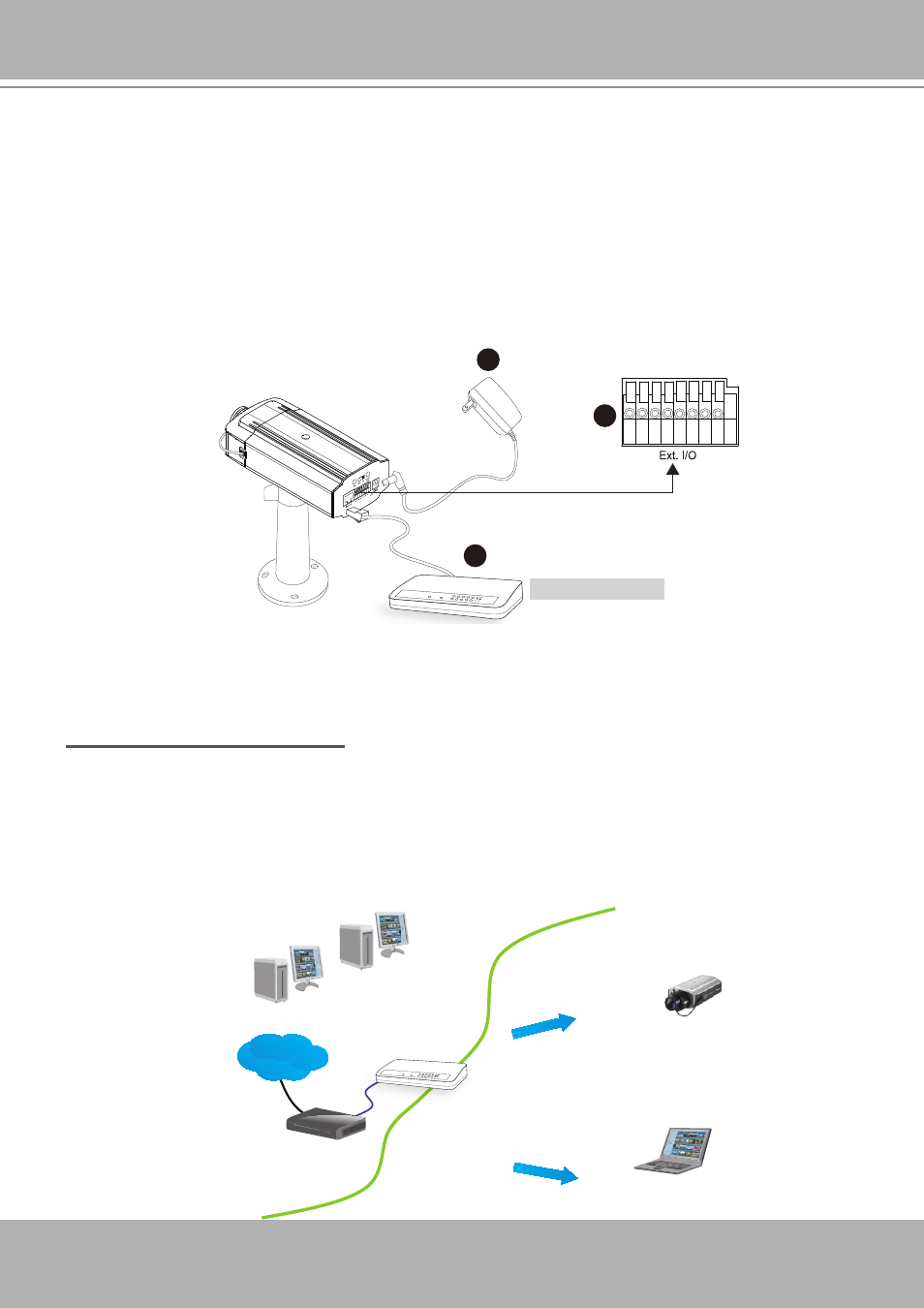

This section explains how to configure the Network Camera to Internet connection

1. If you have external devices such as sensors and alarms, make connection from general I/O
terminal block�

2� Connect the camera to a switch via Ethernet cable�
3� Connect the supplied power cable from the camera to a power outlet�

There are several ways to setup the Network Camera over the Internet

The first way is to setup

the Network Camera behind a router

The second way is to utilize a static IP

The third way is to

use PPPoE

Internet connection via a router

Before setting up the Network Camera over the Internet, make sure you have a router and follow
the steps below�

1� Connect your Network Camera behind a router, the Internet environment is illustrated as
below� About how to get your IP address, please refer to Software installation on page 10 for
details�

IP address : 192.168.0.3
Subnet mask : 255.255.255.0
Default router : 192.168.0.1

IP address : 192.168.0.2
Subnet mask : 255.255.255.0
Default router : 192.168.0.1

LAN (Local Area Network)
Router IP address : 192.168.0.1

WAN (Wide Area Network )
Router IP address : from ISP

Cable or DSL Modem

POWER

COLLISION

LINK

RECEIVE

PARTITION

1

2

3

4

5

Internet

POWER

COLLISION

LINK

RECEIVE

PARTITION

1

2

3

4

5

1

2

11111

2

3

4

5

6

7

8

3

Ethernet switch

1: Power
2: Digital Output
3: Digital Input
4: Ground
5: AC 24V input
6: AC 24V input
7: RS-485 -
8: RS-485 +
