Camera control
This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation by connecting with a
PTZ driver or scanner via RS485 interface�

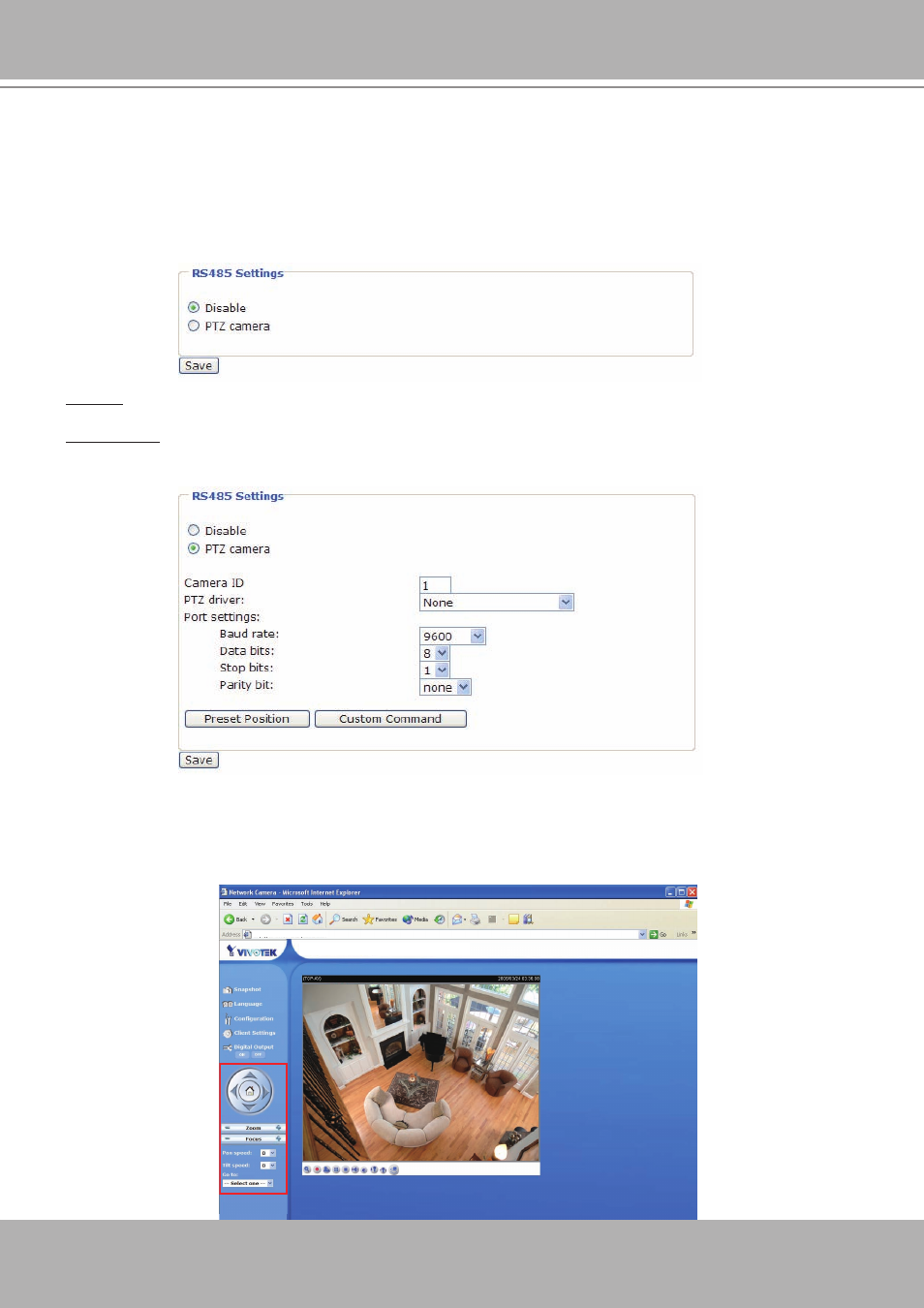

RS485 Settings
Disable: Select this option to disable this function�
PTZ camera: Select this option to enable PTZ operation�
To utilize this feature, please connect the Network Camera with a PTZ driver or scanner via RS485
interface first� And then you can configure the PTZ driver and RS485 port settings in the following
diagram�
VIVOTEK offers three PTZ drivers: DynaDome/SmartDOME, Lilin PIH-7x00 and Pelco D protocol.
If none of the above PTZ drivers is supported by your PTZ scanner, please select Custom camera
(scanner)� please refer to the user’s manual of your PTZ scanner to set the Camera ID, PTZ driver, and
Port settings� The Camera ID is necessary for multiple cameras control� If you select PTZ camera and
click Save to enable this function, the camera control panel will be displayed in the main page as the
following diagram:
http://192.168.5.117/index.html
Network Camera
