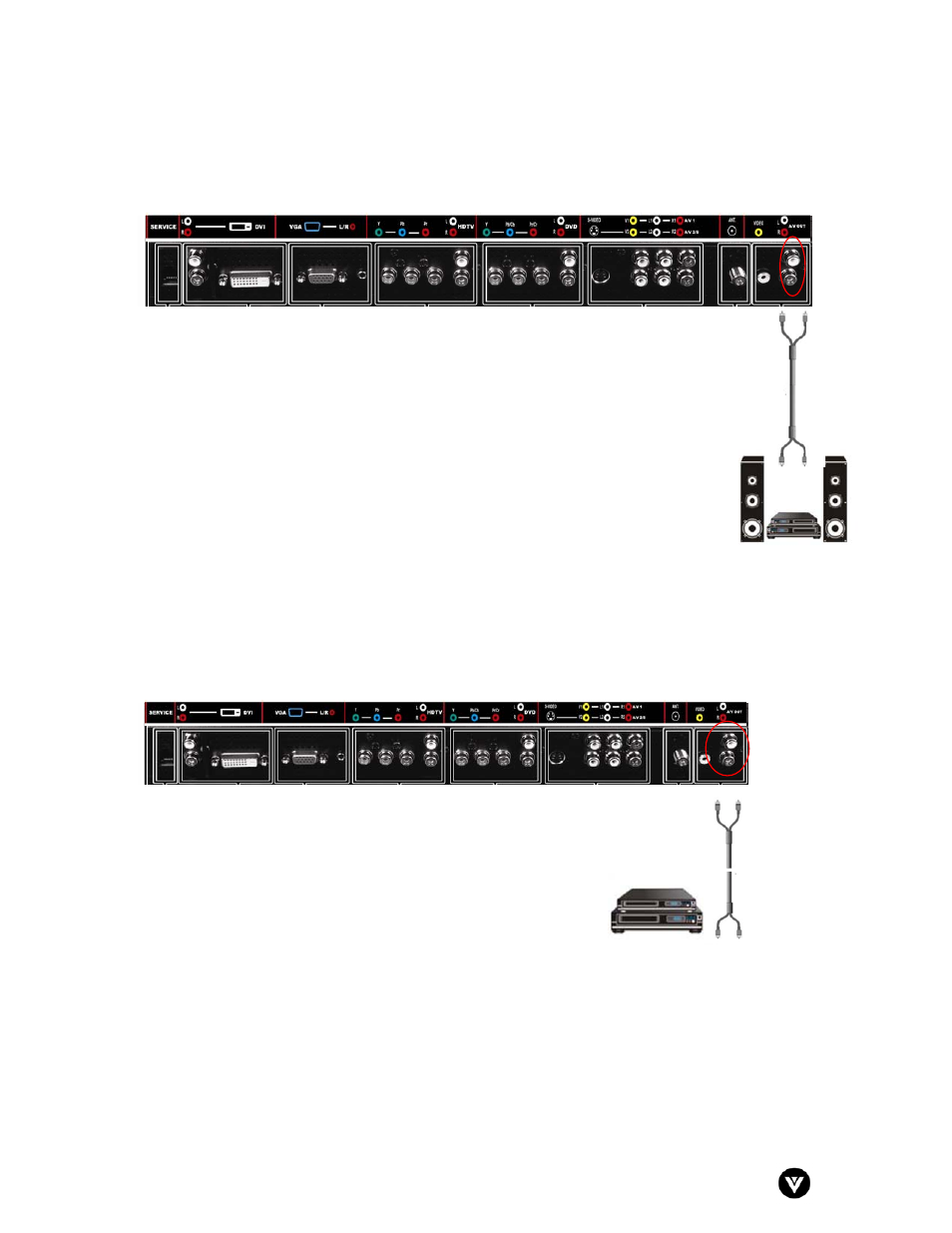

2.6 - Connecting External Amplified Speakers
Installation:
1. Turn off the power to the LCD TV and external speakers.
2. Connect the R (red color) and L (white color) audio connectors on the rear of
your speakers to the R (red color) and L (white color) audio output connectors in
the A/V Out group in the rear of your LCD TV.
3. Turn on the power to the LCD TV and speakers.
2.7 - Connecting an External Receiver or Amplifier
You can connect an external receiver or amplifier to your LCD TV. Your LCD TV is equipped with
an external speaker switch that can automatically send a remote turn-on/off signal to the
connected external receiver or amplifier.
Installation:
1. Turn off the power to the LCD TV
and receiver or amplifier.
2. Connect the R (red color) and L (white color) audio
connectors on the rear of your receiver or amplifier to the
R (red color) and L (white color) audio output connectors
in the A/V Out group in the rear of your LCD TV.
3. Turn on the power to the LCD TV and receiver or amplifier.
