2.3.2 - Using RGB Video

Installation:

1. Turn off the power to the LCD TV and HDTV Set-Top Box.

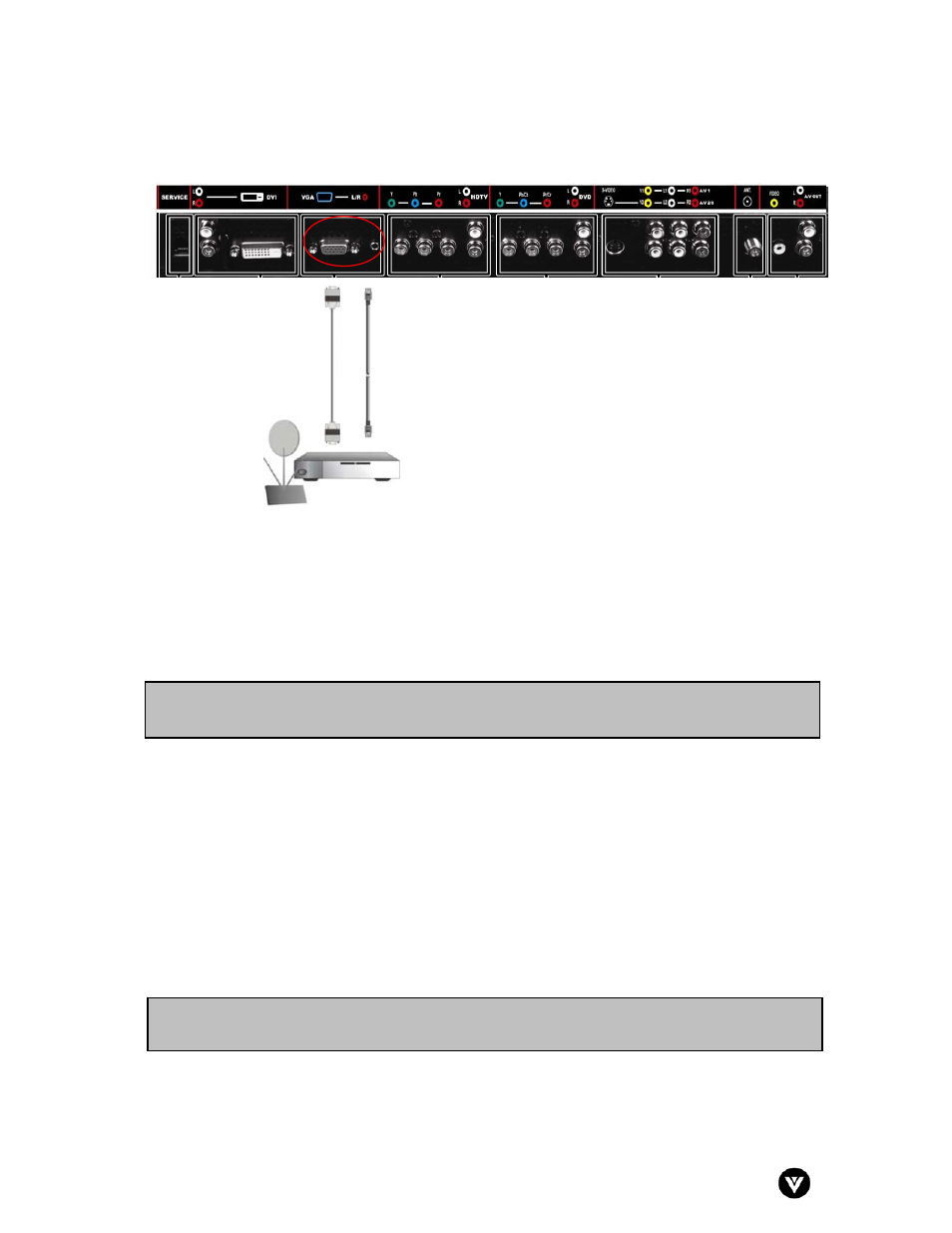

2. Connect a 15-pin D-Sub RGB cable to the RGB output of your HDTV Set-Top Box and

the other end to the VGA input in the rear of your LCD TV.

3. Connect the Audio Out on your HDTV Set-Top Box to the Audio (L/R) within the VGA

group on your LCD TV.

4. Turn on the power to the LCD TV and your HDTV Set-Top Box.
5. Select VGA using the INPUT button on the front of the LCD TV.

2.4 - Connecting Your VCR or Video Camera

Installation:

1. Turn off the power to the LCD TV and VCR or video camera.
2. Connect the S-Video jack on your VCR or video camera to the S-Video jack in the AV In

group in the rear of your LCD TV.

3. Connect the R (red color) and L (white color) audio connectors on your VCR or video

camera to the R2 (red color) and L2 (white color) audio input connectors in the AV2/S
group in the rear of your LCD TV.

4. Turn on the power to the LCD TV and VCR or video camera.
5. Select AV2/S using the INPUT button on the front of the LCD TV.

Note: Refer to your HDTV Set-Top Box user manual for more information about the video
output requirements of the product or consult your satellite or cable operator.

Note: Refer to your VCR or video camera user manual for more information about the video
output requirements of the product.
