VIZIO L30 WGUe User Guide
Version - 4/7/2005 16

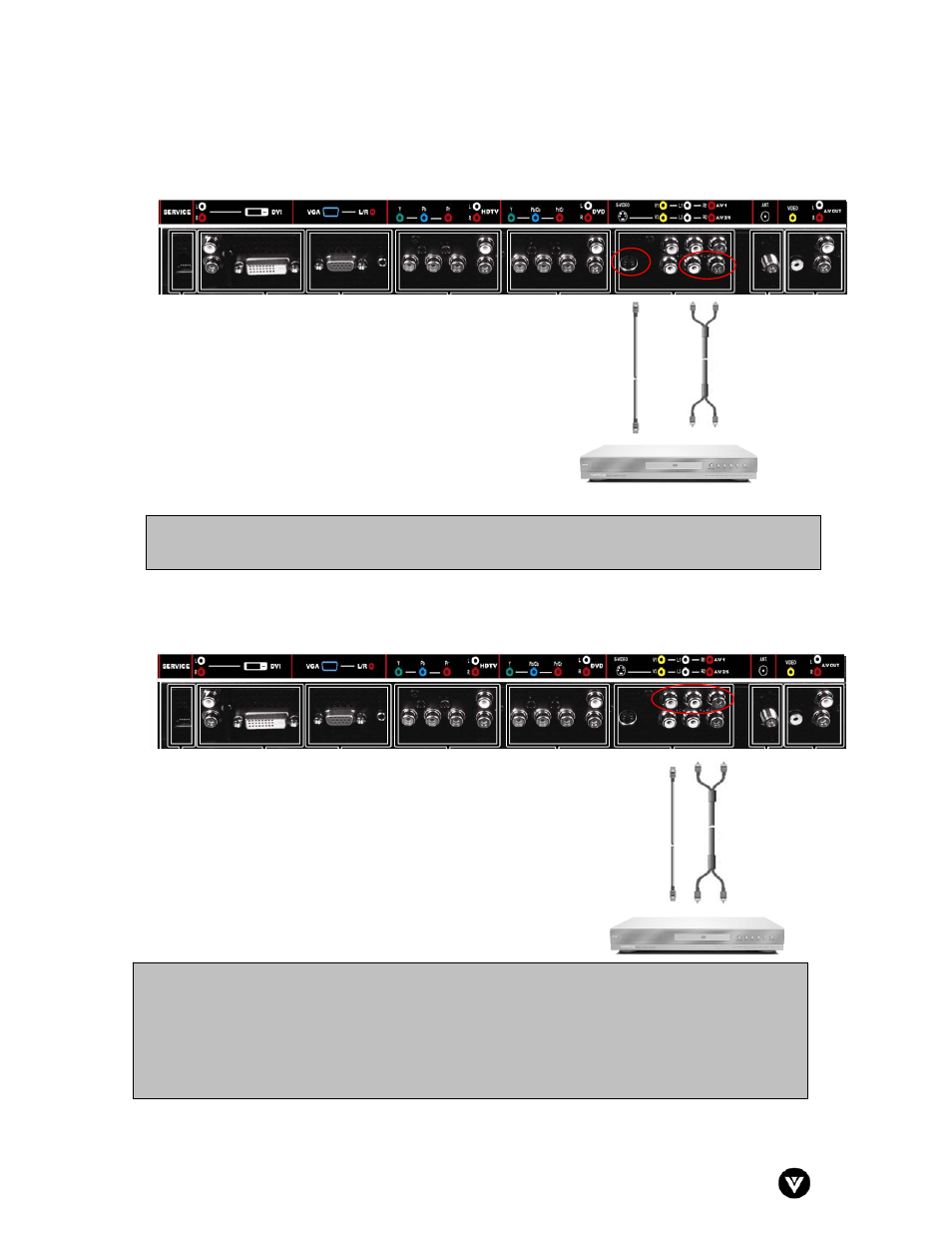

2.2.3 - Using S-Video
Installation:
1. Turn off the power to the LCD TV and DVD player.
2. Connect the S-Video jack on the rear of your DVD player
to the S-Video jack in the AV In group in the rear of your
LCD TV.
3. Connect the R (red color) and L (white color) audio
connectors on the rear of your DVD player to the R2 (red
color) and L2 (white color) audio input connectors in
the AV2/S group in the rear of your LCD TV.
4. Turn on the power to the LCD TV and DVD player.
5. Select AV2/S using the INPUT button on the front of
the LCD TV.
2.2.4 - Using Composite Video
Installation:
1. Turn off the power to the LCD TV and DVD player.
2. Connect the Video
(yellow color) connector on the rear of your
DVD player to the V1 connector in the A/V 1 group in the rear of
your LCD TV.
3. Connect the R (red color) and L (white color) audio connectors
on the rear of your DVD player to the R1 (red color) and L1
(white color) audio input connectors in the A/V 1 group in the
rear of your LCD TV.
4. Turn on the power to the LCD TV and DVD player.
5. Select AV1 using the INPUT button on the front of the
LCD TV.
Note: Refer to your DVD player user manual for more information about the video output
requirements of the product.
Note:
a) If you are already using the AV1 input for another component, or you do not want to
use the AV1 input for the DVD player, you can connect the DVD player to the AV2 in
the A/V In group. If you are using AV2, then please make sure you connect the audio
in the AV2/S group.
b) Refer to your DVD player user manual for more information about the video output
requirements of the product.
