2.5 - Connecting Coaxial (RF)
There are several options for connecting your antenna or cable to your new L30 WGUe LCD TV -
directly to the TV or through your VCR. Based on your home theater configuration, you can
decide which option is the right one for you.
2.5.1 - Using Your Antenna or Cable TV
Installation:
1. Turn off the power to the LCD TV.

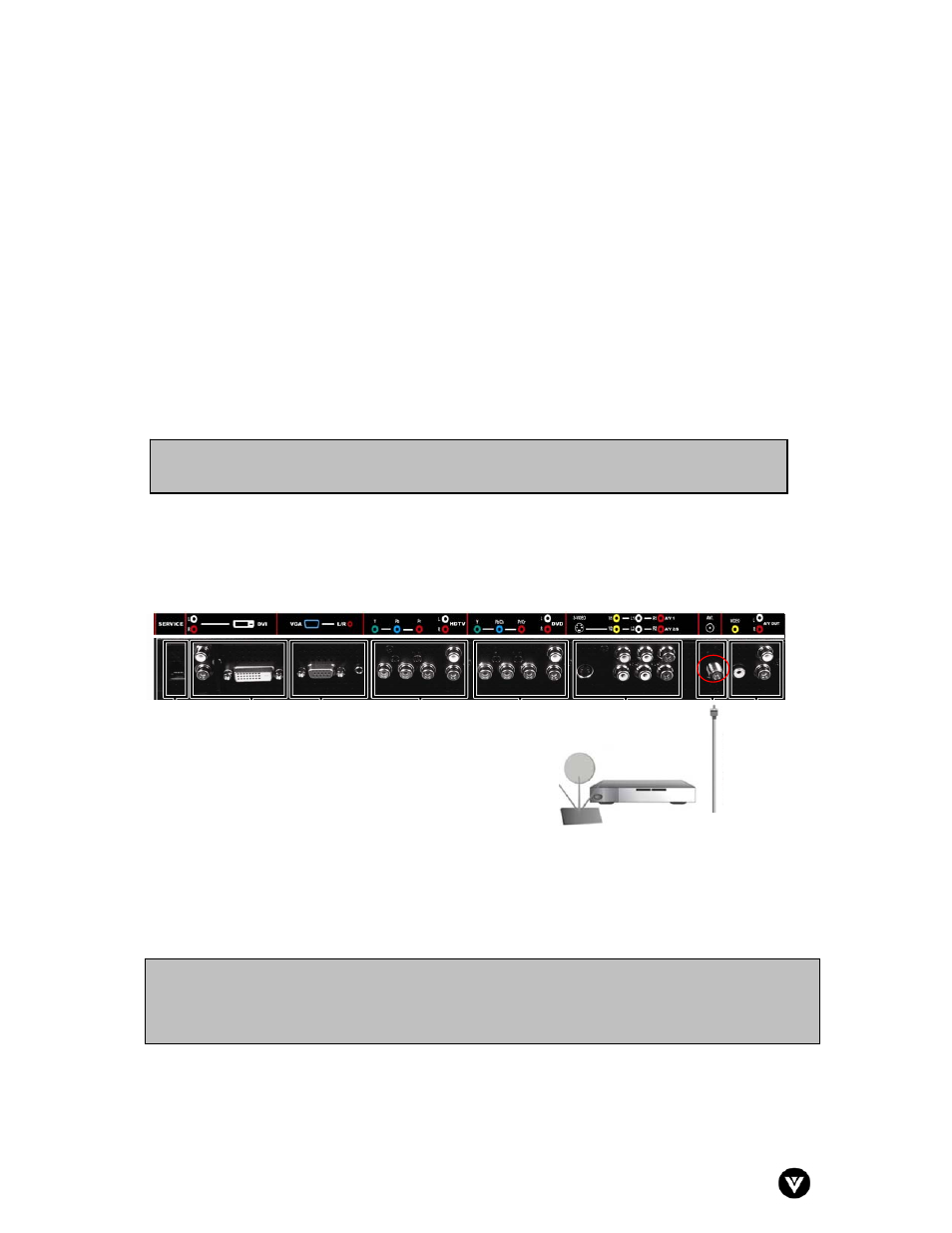

2. Connect the coaxial (RF) connector from your antenna, cable or cable box to the ANT
connector on the rear of your LCD TV.
3. Turn on the power to the LCD TV
4. Select TV using the INPUT button on the front of the LCD TV.
2.5.2 - Using the Antenna through Your VCR
Installation:
1. Turn off the power to the LCD TV and VCR.
2. Connect the “Output to TV” (RF Out or Antenna Out) connector on the rear of your VCR
to the ANT connector on the rear of your LCD TV.
3. Turn on the power to the LCD TV and VCR.
4. Select TV using the INPUT button on the front of the LCD TV.
5. Select
Channel 3 or 4 to match the channel selected on the rear of your VCR.
Note: See page 26 for selecting the TV source within the OSD menus (antenna, cable,
HRC and IRC). Make sure the antenna or cable TV is correctly grounded.
Note:
a) If you have an off-air antenna or cable TV, connect the off-air antenna or TV cable to
the RF connector on the rear of your VCR.
b) Make sure the antenna or cable TV is correctly grounded.
