VIZIO L30 WGUe User Guide
Version - 4/7/2005 17
2.3 - Connecting Your HDTV Set-Top Box
You have several options for connecting your HDTV Set-Top Box to your new L30 WGUe LCD
TV: DVI and RGB inputs. Based on your home theater configuration, you can decide which
option is the right one for you.
2.3.1 - Using Digital Video
HDTV Set-Top Boxes that have a digital interface compliant with the DVI (Digital Visual Interface)
standard can be connected to the DVI input of the LCD TV.

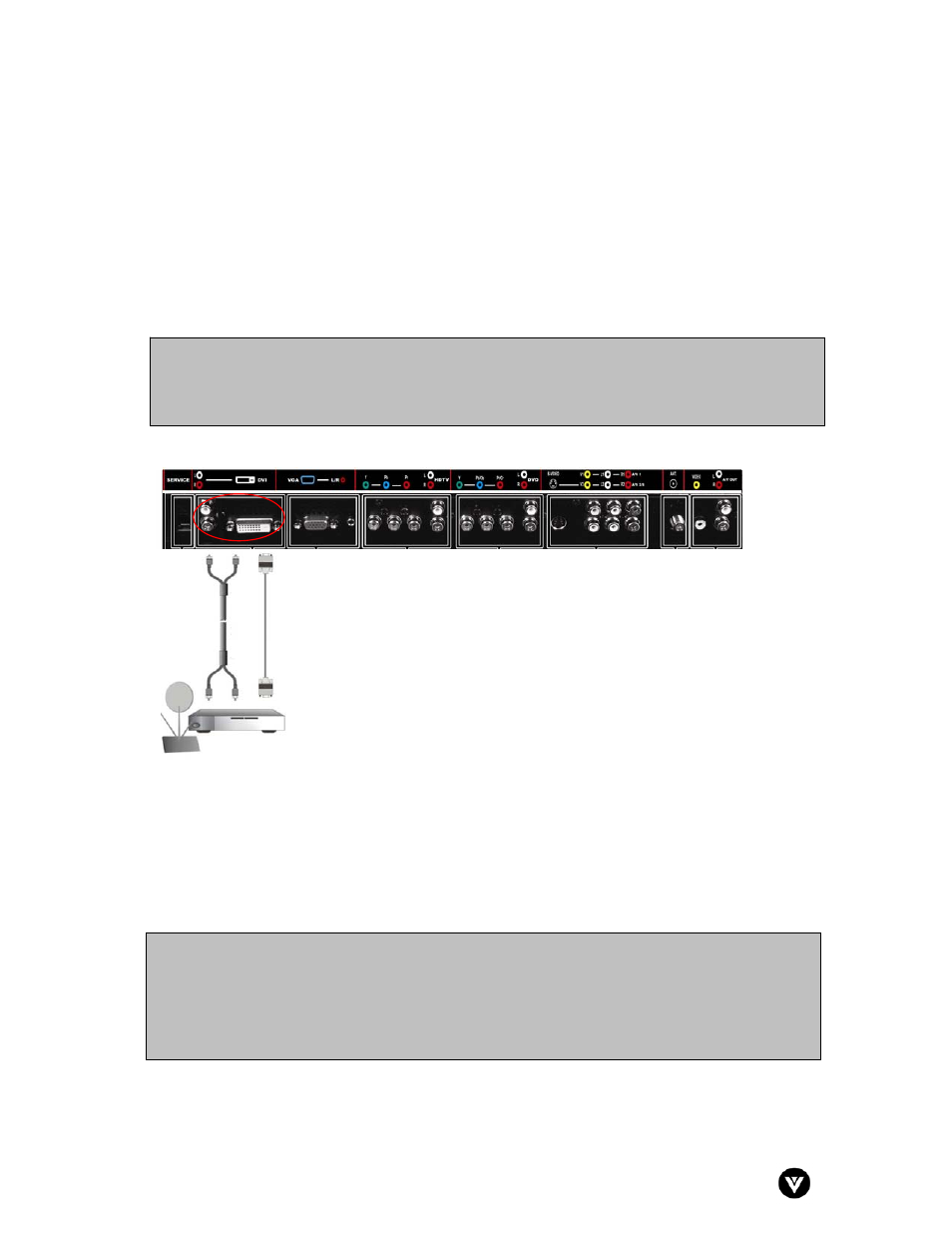

Installation:
1. Turn off the power to the LCD TV and HDTV Set-Top Box.
2. Connect a DVI-D cable to the DVI output of your HDTV Set-Top Box and the other end to
the DVI input in the rear of your LCD TV.
3. Connect the R (red color) and L (white color) audio connectors on the rear of your HDTV
Set-Top Box to the R (red color) and L (white color) audio input connectors in the DVI
group in the rear of your LCD TV.
4. Turn on the power to the LCD TV and your HDTV Set-Top Box.
5. Select DVI using the INPUT button on the front of the LCD TV.
Note:
a) Use TMDS signals conforming to DVI standards. The TMDS input is a single link
input.
b) To maintain the display quality, use a DVI cable from VIZIO that is 10 meters or less.
Note:
a) The DVI input on your LCD TV supports High-bandwidth Digital Content Protection
(HDCP). HDCP encrypts the transmission between the video source and the digital
display for added security and protection.
b) Refer to your HDTV Set-Top Box user manual for more information about the video
output requirements of the product or consult your satellite or cable operator.
