VIZIO L30 WGUe User Guide
Version - 4/7/2005 14
2.2 - Connecting Your DVD Player
You have several options for connecting your DVD player to your new L30 WGUe LCD TV - DVI,
Component, S-Video, and Composite inputs. Based on your home theater configuration, you can
decide which option is the right one for you.
2.2.1 - Using Digital Video
DVD players that have a digital interface compliant with the DVI (Digital Visual Interface)
standard, such as the BRAVO D2 DVI Enabled DVD Player from VIZIO, should be connected to
the DVI input of the VIZIO L30 WGUe LCD TV.

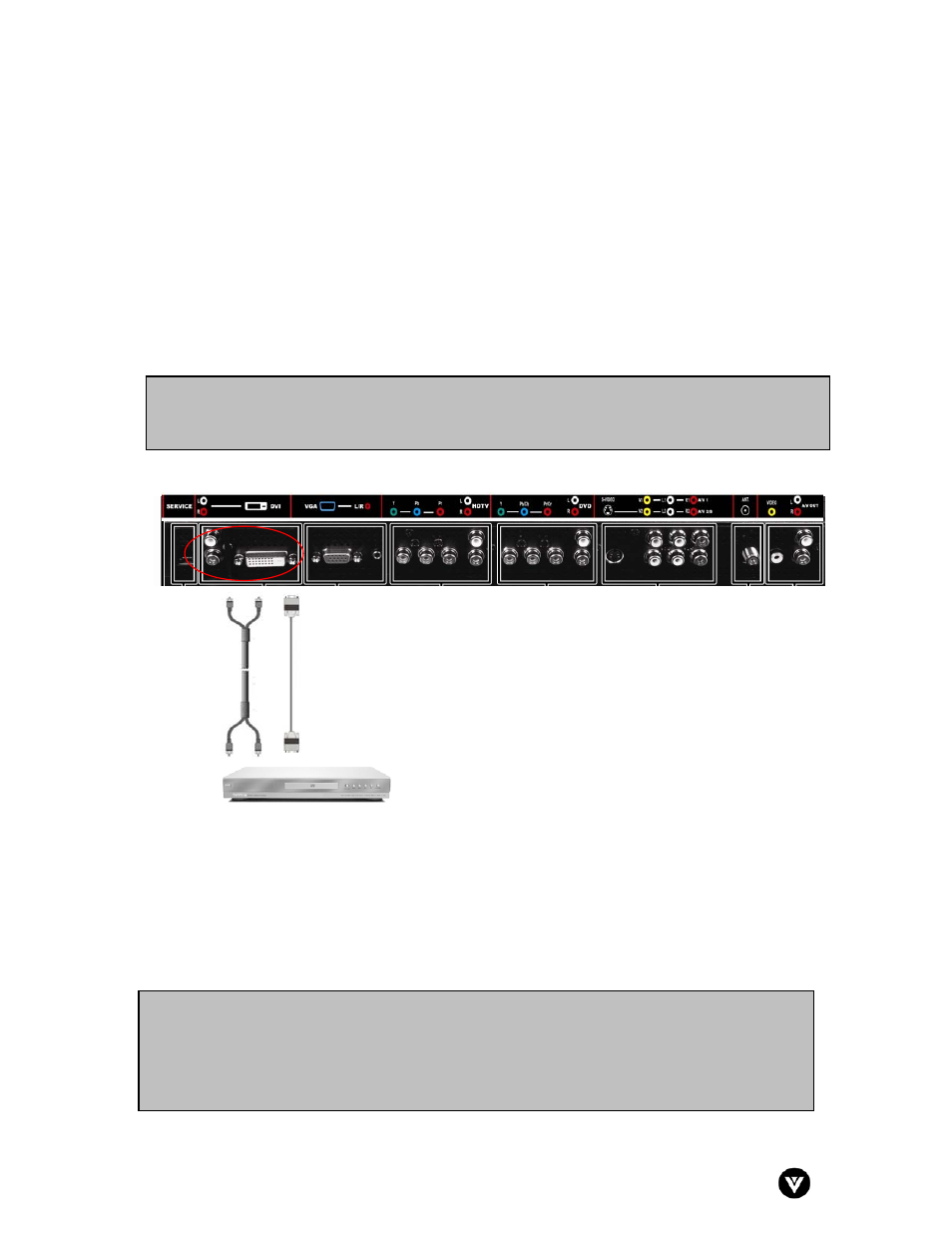

Installation:
1. Turn off the power to the LCD TV and DVD player.
2. Connect a DVI-D cable to the DVI output of your DVD player and the other end to the DVI
input in the rear of your LCD TV.
3. Connect the R (red color) and L (white color) audio connectors on the rear of your DVD
player to the R (red color) and L (white color) audio input connectors in the DVI Audio
group in the rear of your LCD TV.
4. Turn on the power to the LCD TV and your DVD player.
5. Select DVI using the INPUT button on the front of the LCD TV.
Note:
a) The DVI input on your LCD TV supports High-bandwidth Digital Content Protection
(HDCP). HDCP encrypts the transmission between the video source and the digital
display for added security and protection.
b) Refer to your DVD player user manual for more information about the video output
requirements of the product.
Note:
a) Use TMDS signals conforming to DVI standards. The TMDS input is a single link input.
b) To maintain the display quality, use a DVI cable from VIZIO that is 10 meters or less.
