Timing mechanism – Toro TDC-100/200 User Manual
Page 5

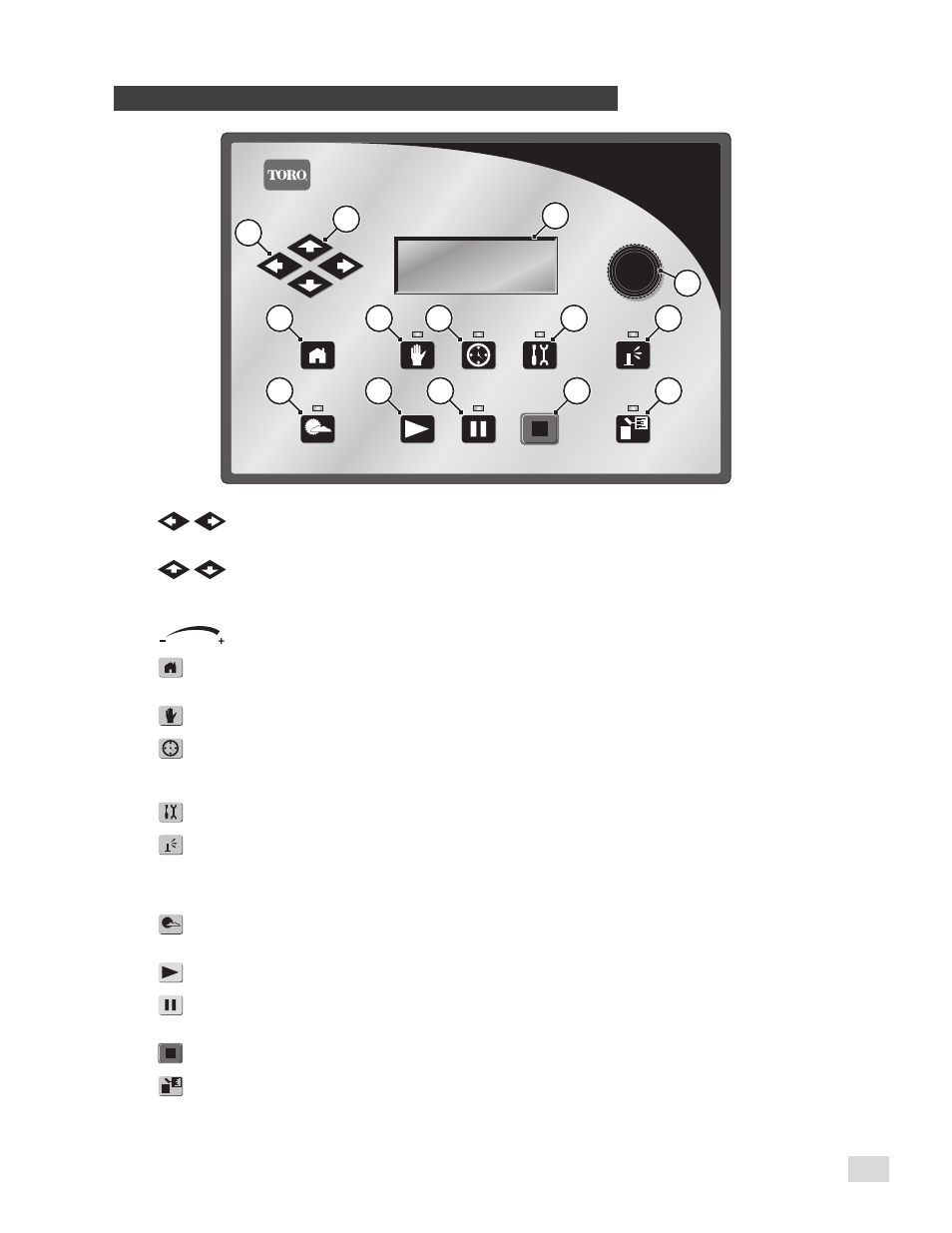

1
Left and Right Arrows
allow you to select the next entry field within the same menu line. Any
changes will be saved after you exit that entry field.
2
Up and Down Arrows
allow you to scroll up and down through the menu items.
3
LCD Panel
is the display screen.
4
Input Dial
allows you to scroll through the value selection within the selected entry field.
5
Home Key
allows you to exit from any function menu and return the controller to normal operation. After
pressing the Home Key, all modifications to the settings will be saved.
6
Manual Watering Menu Key
allows you to activate station(s) or program(s) manually.
7
Scheduled Watering Menu Key
allows you to create/modify irrigation programs. Use this function to
assign the program type (Standard or Grow- In), watering days, start times, end times, delay times, syringe
duration, repeats, soak time, stations, run times and maximum simultaneous stations per program.
8
Diagnostics Menu Key
allows you to run communications test with each decoder and solenoids.
9
Station Settings Menu Key
allows you to modify station parameters. Within this setting, you can set
the station number and assign it to a specific decoder, decoder station and path, specify each station’s
percent adjust, disable the station from any activity by placing a station hold for a specific number of days, set
the station type to a switch and create or edit the station description/name.
10
Percent Adjust Menu Key
allows you to adjust watering to a specific percentage range. The user can
specify percentage adjustment for the system, programs and stations.
11
Start Key
will execute selected program or manual operation.
12
Pause/Resume Key
will pause currently activated program(s). Press the key while in pause and select
Resume to continue operation.
13
Stop Key
will cancel currently running program(s) or station(s).
14
System Settings Menu Key
allows the user to modify the controller parameters. Users can specify
the hold duration for controller’s activity, set language, time, date, day change, station delay, maximum
number of stations to run simultaneously, adjust display contrast and specify sensor type. Within this menu,
the user can also reset all programs, reset the station parameters and reset all disables.
Timing Mechanism
5
5
T DC-100/200
HOME
%ADJUST
START
PAUSE/
RESUME
STOP
SYSTEM
SETTINGS
MANUAL
WATERING
SCHEDULED
WATERING
DIAGNOSTICS
STATION
SETTINGS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
