9

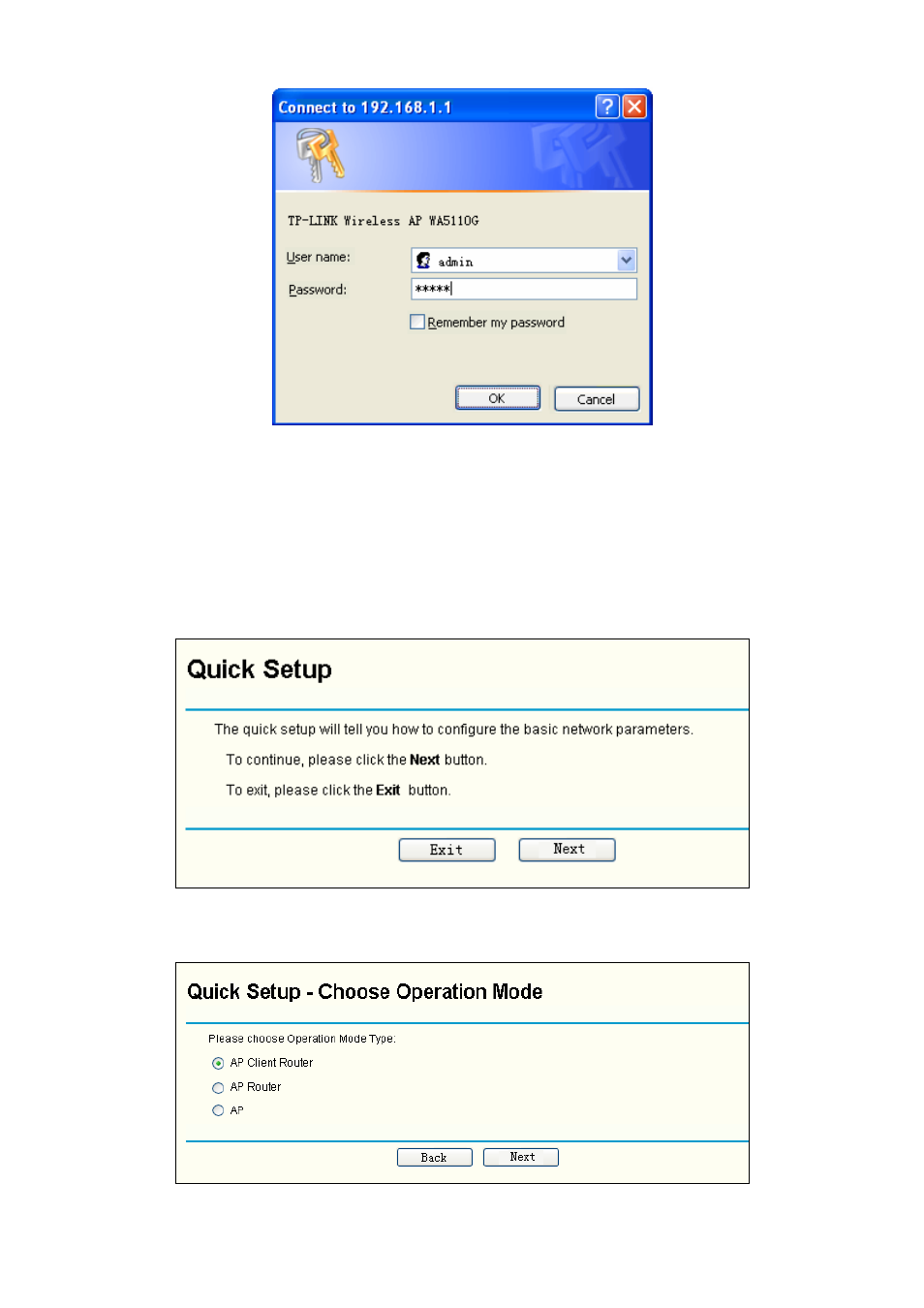

Figure 3-4 Login Windows
)
Note:
If the above screen does not pop-up, it means that your Web-browser has been set to a proxy. Go
to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears, cancel
the Using Proxy checkbox, and click OK to finish it.
If the User Name and Password are correct, you can configure the AP using the Web browser.
Please click the Quick Setup link on the left of the main menu and the Quick Setup screen will
appear.
Figure 3-5 Quick Setup
Click Next, and then Choose Operation mode page will appear, shown in Figure 3-6:
Figure 3-6 Choose Operation mode
