– 46 –
FILE NO. SVM-03008

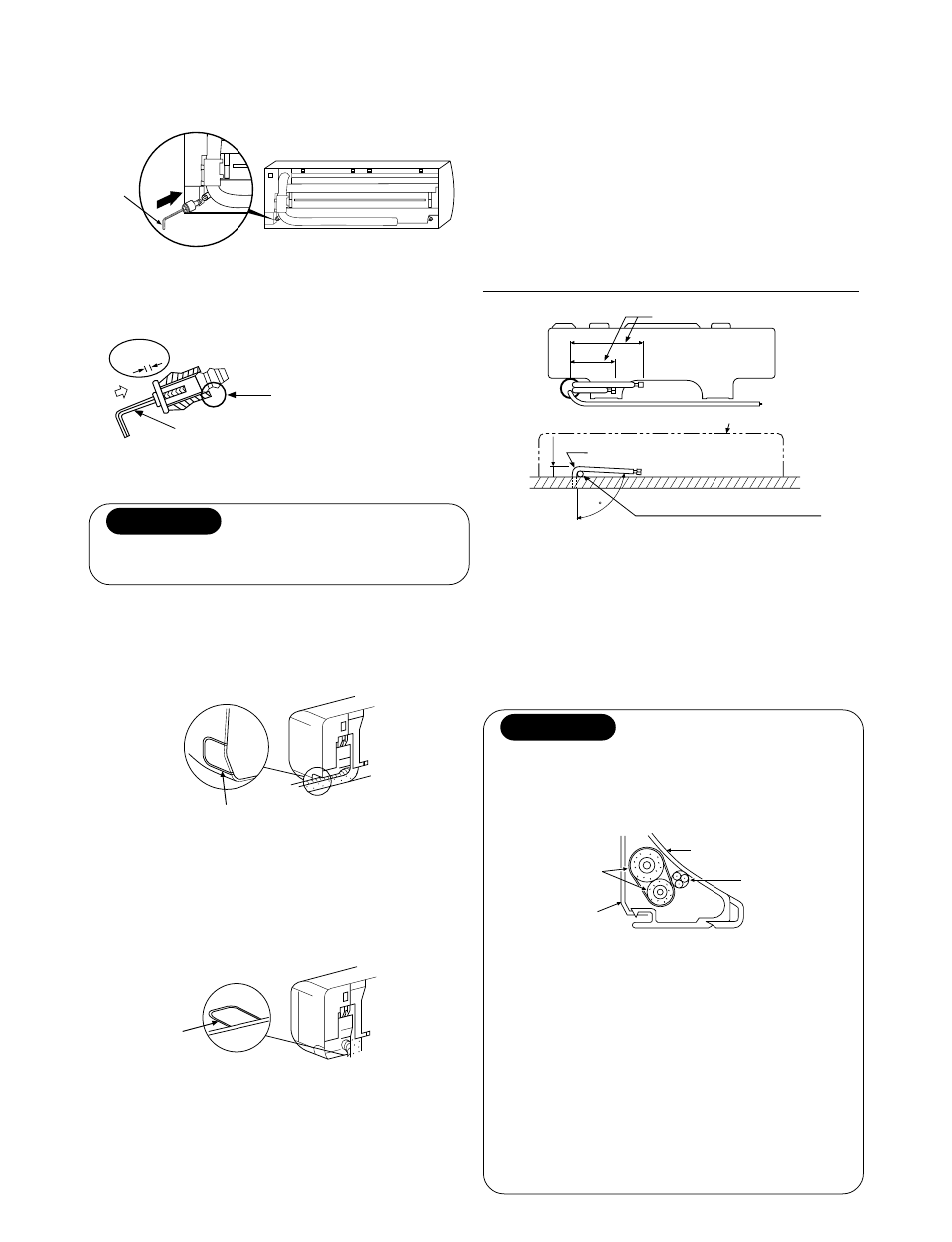

1) Insert hexagonal wrench (
∅
4 mm) in a center head.
Fig. 9-2-11
2) Firmly insert drains cap.
Fig. 9-2-12
CAUTION
Firmly insert the drain hose and drain cap;
otherwise, water may leak.
•
After scribing slits of the front panel with a knife or a
making-off pin, cut them with a pair of nippers or an
equivalent tool.
Fig. 9-2-13
•
After scribing slits of the front panel with a knife or a
making-off pin, cut them with a pair of nippers or an
equivalent tool.
Fig. 9-2-14
∅ 4 mm
Do not apply lubricating oil
(refrigerant machine oil) when
inserting the drain cap. Application
causes deterioration and drain
leakage of the plug.
Insert a hexagon
wrench (
∅ 4 mm)
No gap
Slit
Slit
Bend the connecting pipe so that it is laid within 43 mm
above the wall surface. If the connecting pipe is laid
exceeding 43 mm above the wall surface, the indoor
unit may unstably be set on the wall. When bending the
connecting pipe, make sure to use a spring bender so
as not to crush the pipe.
Bend the connection pipe within a radius of 30 mm
(
∅
6.35) 40 mm (
∅
9.52).
To connect the pipe after installation of the unit (figure)
Fig. 9-2-15
NOTE:
If the pipe is bent incorrectly, the indoor unit may
unstably be set on the wall.
After passing the connecting pipe through the pipe
hole, connect the connecting pipe to the auxiliary pipes
and wrap the facing tape around them.
CAUTION
•
Bind the auxiliary pipes (two) and connecting
cable with facing tape tightly. In case of leftward
piping and rear-leftward piping, bind the auxiliary
pipes (two) only with facing tape.
Fig. 9-2-16
•
Carefully arrange pipes so that any pipe does not
stick out of the rear plate of the indoor unit.
•
Carefully connect the auxiliary pipes and
connecting pipes to each other and cut off the
insulating tape wound on the connecting pipe to
avoid double-taping at the joint, moreover, seal
the joint with the vinyl tape, etc.
•
Since dewing results in a machine trouble, make
sure to insulate both the connecting pipes. (Use
polyethylene foam as insulating material.)
•
When bending a pipe, carefully do it not to crush it.
(To the forefront of flare)
Liquid side
Outward form of indoor unit
R 30 mm or less ( ∅ 6.35) R 40 mm or less ( ∅ 9.52)
(Use polisin (polyethylene core) or the like for
bending pipe.)
Use the handle of screwdriver, etc.
Gas side
270 mm
170 mm
43 mm
80
Auxiliary pipes
Indoor unit
Connecting cable
Installation plate
