HD Mesh Node
Trango Broadband Wireless — High Density MESH page 5
Section 2 Hardware Overview
The HD Mesh is an outdoor NEMA rated box that houses a Mikrotik 532 router. The router provides
OSPF functionality on the routed ports that connect to two Trango Point to Point wireless backhaul radios
which results in a layer 3 self healing wireless network. The other three Trango PoE ports can be used in
conjunction with any Trango Access Point to provide wireless connections in a Point to Multipoint format.
Each one of these PoE ports connects to an individual port on the router. This results in a unique broadcast
domain for each Access Point yielding higher performance at each cell. The router board also connects to a
MiniPCI CM9 wireless board that functions as a WiFi Access Point. This Access Point uses an Omni 8 dBi
antenna to provide a hotspot solution. The other four ports on the router can be used with any Ethernet or IP
devices and can be configured as bridge ports or router ports, for meeting different application requirements.
The HD Mesh box is powered by 110 Volts AC for HD Mesh 1 and 220 Volts AC for HD Mesh 2. The box is
design to operate in temperatures between -40º C to 60º C.
System Contents
The HD Mesh system is available in two versions:
HD Mesh 1
- US mode (110 VAC)
HD Mesh 2 - International model (220 VAC)

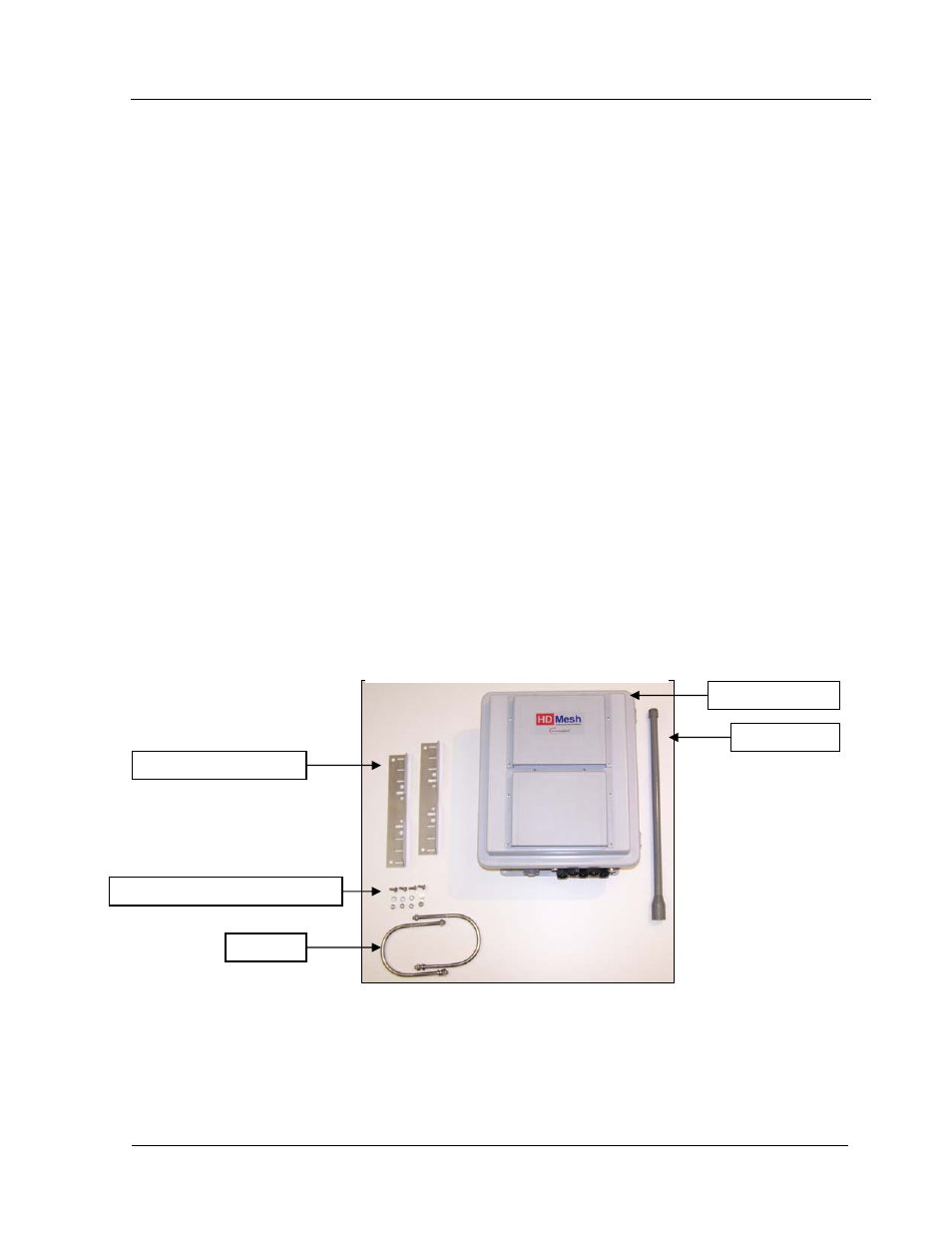

Each HD Mesh kit consists of one HD Mesh Box, one Omni 8dBi antenna, two mounting brackets, two U
bolts, four screws, four washers, and four nuts. (Figure 1)
Figure 1
HD Mesh Box
8dBi Omni
Mounting Brackets
Screws, washers and Nuts
U-bolts
HD Mesh Kit
