General Purpose Control
Station may be restricted from access to this function. This
function can control other equipments by employing the
Data Transmitting and Receiving Units.

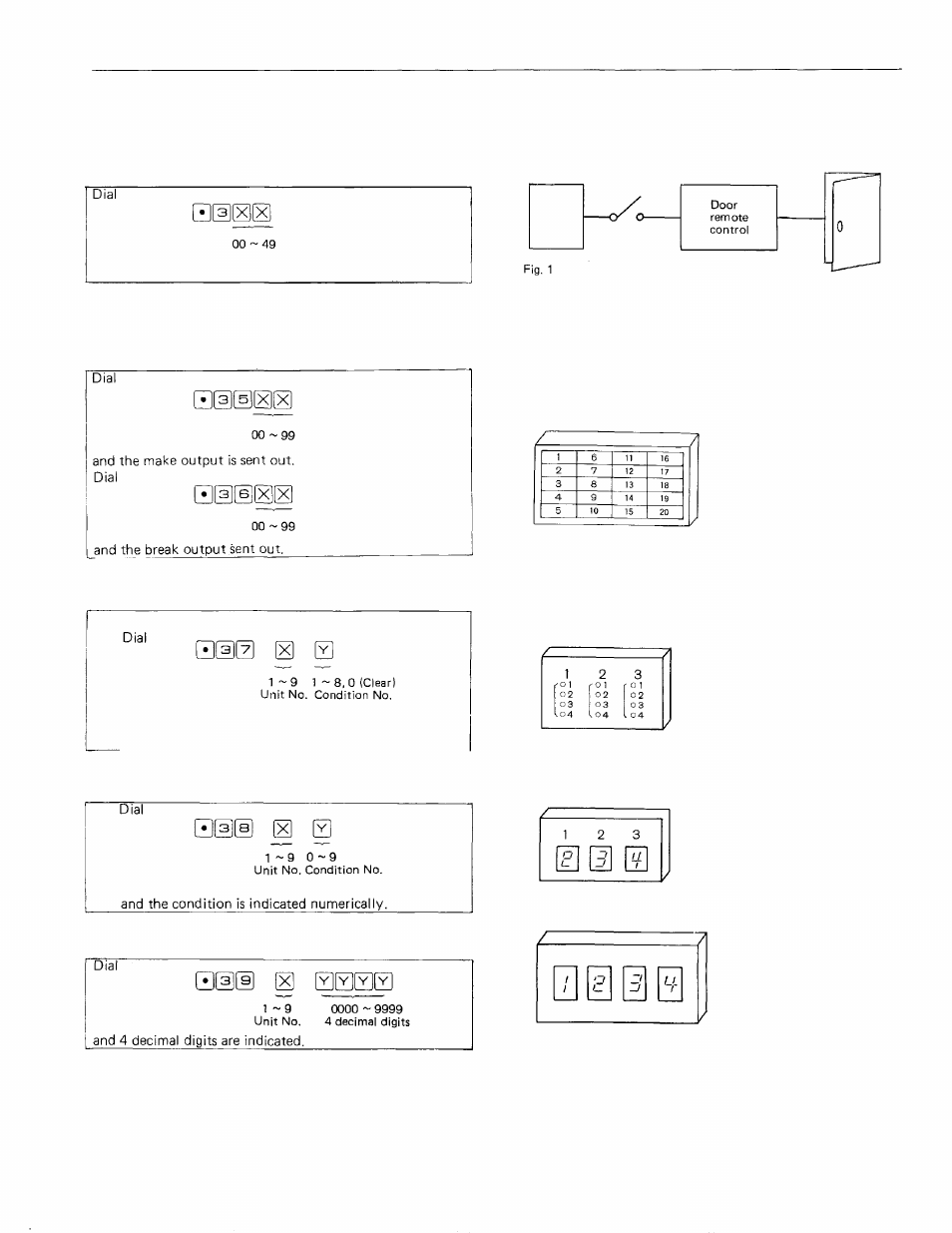

Select the required type of output.
Example: Door remote and VTR control
Note: Operation performed even when all links are busy.
But One-shot make output by Single digit dialing
cannot be accomplished when all links are busy.
(Mode 2) Make/break output (100 contacts)
Control with one-shot make output
Example: In/out annunciation, Prescription annunciation.
and one of the 8 relay outputs is made. "Clear" opera-
tion makes all 8 relays break._______________
Example: Destination indication, room condition
indication, I TV control, VTR control
Example: Destination indication, room condition
Example: Prescription annunciation
Fig. 5 4 decimal digits type indication panel
Fig. 4 Decimal output type indication panel
Fig. 3 8 selectable output type indication panel
(Mode 1) One-shot make output (50 contacts)
and the relay output is made for 1 to 2 seconds.
(Mode 3) 8 selectable make output and/or decimal output
(A) 8 selectable make output (9 units)
Example: Destination indication, room condition
indication, I TV control, VTR control
(Mode 4) 4 decimal digits output
(B) Decimal output
Fig. 2 Lamp on/off indication panel
