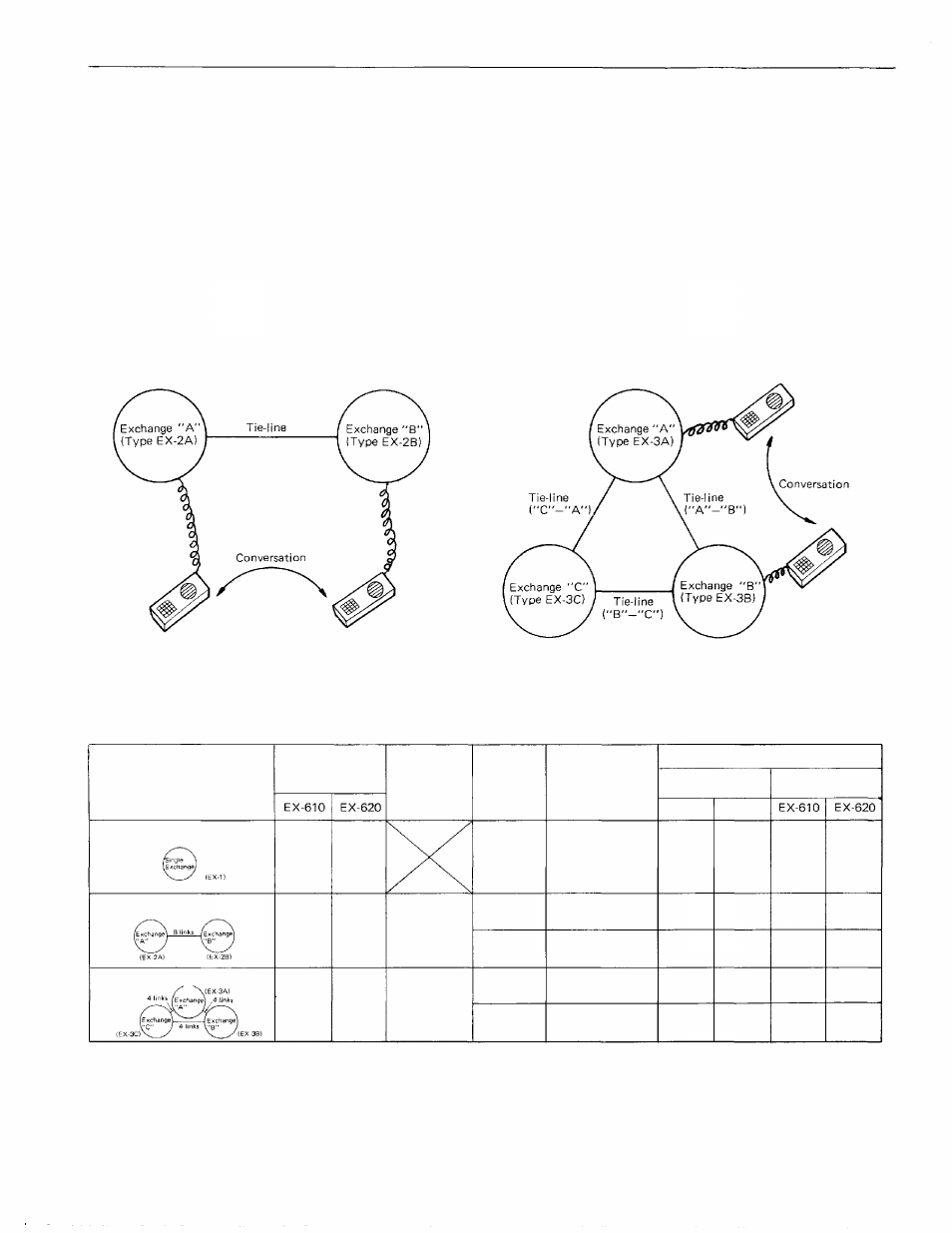

Tie-line Connections of Exchanges
1. Purpose of tie-line connection
When the EXES-6000 system uses the Central Processing
Unit Model CP-63, not only the use of a single exchange
(up to 120 stations) but also the tie-line connections of
2 exchanges (up to 240 stations and without paging
functions) or 3 exchanges (up to 360 stations and with-
out paging functions) are possible.
This tie-line function may be used when
1) You wish to connect 2 or 3 exchanges in the remote
areas (maximum distance connected between ex-
changes using the cable of 0.65mm diameter is
approximately 2 km.)
2) One exchange is not sufficient enough to cover the
desired number of stations and a separate exchange
is required for increase in the number of stations.
*1 The links within own exchange as well as the tie-line links are used in each tie-line communication.
*2 All call paging is provided to all the paging zones of all the exchanges connected by tie-line.
Composition of exchange(s)
Maximum number
of links within
own exchange
Maximum
number of
links between
tie-lined
exchanges
Number
of
exchange
Maximum number
of
paging zones
Maximum number of stations
Without Paging
With Paging
(All call +7 zones)
1 All call
+ 7 zones
56 120 48 112
EX-610 EX-620
56 120 48 112
112 240 96 224
56 120 48 112
168 360 144 336
1
2
1
3
All call
+ 7 zones
All call
+14 zones *2
All call
+7 zones
All call
+21 zones *2
12 16
12
*1
16
*1
8
4 between
each tielined
link
12
*1
16
*1
2. Number of stations, paging zones and links
Station
(No. 200 ~ 327)
Station
(No. 470 ~ 597)
Station
(No. 470 ~ 597)
Station
(No. 200 ~ 327)
(1) Without tie-lines
( 2 ) 2 exchanges
( 3 ) 3 exchanges
